HG60 High Frequency Tube Mill

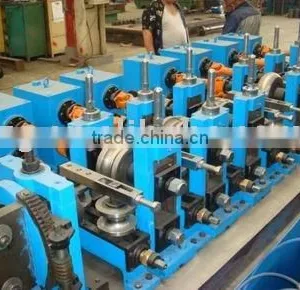

HG60 High Frequency Tube Mill thumbnail-1
HG60 High Frequency Tube Mill photo-1
US$ 100,000 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Pipe Production Line
Pipe Material:
Carbon Steel
Application:
Drain Pipe
Contact Supplier Request Quote Chat Now
Shijiazhuang Zhongtai Pipe Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Pipe Production Line
Pipe Material Carbon Steel
Application Drain Pipe
Place of Origin Hebei, China
Brand Name ZTZG
Model Number HG60
Certification CE
Warranty 1 YEAR
After-sales Service Provided Engineers available to service machinery overseas

Commodity: High frequency tube mill



I. Brief introduction:

60mm welded pipe production line is designed to produce welded pipes of 20mm-60mm in OD and 0.8mm-3.5mm in wall thickness, as well as corresponding square and rectangle tube.



II. Basic Technical Information:



Circular Pipe Size

20mm - 60mm

Pipe Thickness

0.8mm-3.5 mm

Square Pipe Size

20mm*20mm-50mm*50mm

Pipe Thickness

0.8mm-2.5 mm

Material

Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80

Pipe Length

6-12m

Length Tolerance

±3mm

Mill Speed

20-75 m/min

Direction

From left to right or decide by your side.

Electricity Input Power

Belong to confidential information,detail parameters will be known in the quotation list.

Workshop Area

Tube Bottom Passline



III. The technical flow of the production line

Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming →HFwelding→Removing & outsied Bead →Cooling→Sizing→Cutting off→Conveying →Downloading → Packing →Warehousing



IV. Makeup of tube mill line

1. Double-reel Mechanical Uncoiler

2. Shear & Butt Welder

3. Cage Loop(Accumulator)

4. Tube mill

5. Solid State H.F. welder

6. NC Flying Saw

7. Output Rollway

8. Rollers
