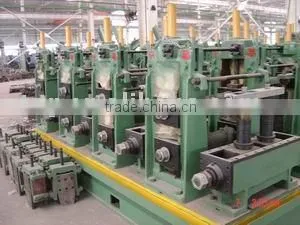

Commodity: HF welded tube mill production line For HG50
Technical Flow:
Uncoiling - Flattening-Shearing&butt welding-Strip Accumulating-Forming-High-frequency induction welding-Bead and burr removing-Zinc patching -Cooling-Sizing Inside Removing-UltrasonicTesting-Cutting-Checking &Collecting-Binding-Weighing-Marking-Accessing Warehouse
Specifications
1.Product Specifications
I. Round pipe diameter range: 12-50mm
wall thickness :0.5mm-2.0mm
II. Square and rectangle tube : 10*10mm-40*40mm
wall thickness range 0.5-1.5mm
III .Tube and pipe length: 6--12m
2. Material Specifications:
Low carbon steel and low alloy steel: δb≤500Mpa
δs≤235Mpa
3 Line specification
production speed:0-80m/min
Line Direction: right to left(frome operator' s side)
Remark:
To protect confidential information, Here only show basic parameters. Detailed parameter will be known in the quotation list or negotiate with customer.
