Tube Forming Machine For HG20

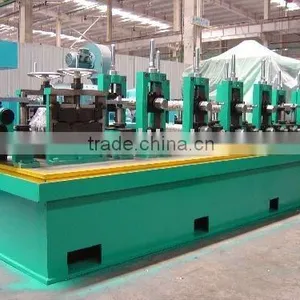

Tube Forming Machine For HG20 thumbnail-1

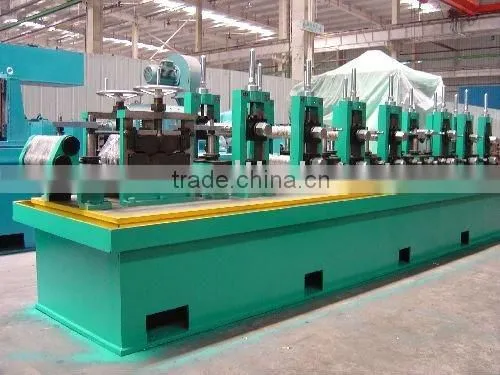

Tube Forming Machine For HG20 photo-1
US$ 10,000 - 1,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Pipe Production Line
Pipe Material:
Carbon Steel
Application:
Energy Supply Pipe
Contact Supplier Request Quote Chat Now
Shijiazhuang Zhongtai Pipe Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Pipe Production Line
Pipe Material Carbon Steel
Application Energy Supply Pipe
Place of Origin Hebei, China
Brand Name ZTZG
Model Number HG20

Specifications

tube forming machine
Tube range 8-20mm
Wall thickness 0.5-1.5mm,and also profile
Material:carbon steel and low alloy steel

Commodity: HG20 tube forming machine



I. Brief introduction:

20mm welded pipe production line is designed to produce welded pipes of 8mm-20mm in OD and 0.5mm-1.5mm in wall thickness,  as well as corresponding square and rectangle tube.



Basic Technical Information:

II. Specification of pipes

Pipe OD: 8mm-20mm                  Thickness: 0.5mm-1.5mm

Square & rectangle tube: 8mm×8mm -15mm×15mm, Thickness: 0.5mm-1.5mm

Length: 6 -12m                         Length Tolerance: ±3mm

2. Raw Material:

Material:  Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80

Width: 36mm-120mm      Thickness: 0.5mm-1.5mm

3. Tube mill:

Production Speed:  20-80 m/min

Direction:  left to right or right to left from operator`s side decided by customers.



III. The technical flow of the production line

Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming → HFwelding→Removing outsied Bead →Cooling→Sizing→Cutting off→Conveying →Downloading → Packing →Warehousing



IV. Makeup of tube mill line

1. Double-reel Mechanical Uncoiler

2. Shear & Butt Welder

3. Cage Loop(Accumulator)

4. Tube mill

5. Solid State H.F. welder

6. NC Flying Saw

7. Output Rollway

8. Rollers
