High Briquette Forming Ratio Hydraulic Black Coal Briquette Machine

High Briquette Forming Ratio Hydraulic Black Coal Briquette Machine photo-1
US$ 1 - 600,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
20-25T/H
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/Tianjin/
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Production Capacity 20-25T/H
Motor Type AC Motor
Power(W) 110kw
Place of Origin Henan, China
Brand Name Yonghua
Model Number YHQ1450-850
Dimension(L*W*H) 3100*2370*2285
Certification CE ISO BV
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

hydraulic black coal briquette machine
1.33 years experience
2.Thoughtful service
3. CE, ISO, SGS certificates
4. Easy

Features of hydraulic black coal briquette machine

1. The ball press by produced by our machine are smokless, smelless, because we have the high technology liquid binder recipe.
2. The service live of charcoal briquette machine is prolonged, especially the wear-resistant spare parts.
3. The machine is easy operation, easy maintain.
4. This machine is energy saving, can save electricity of 60%, save labors of 2-3 person. Also it is environment protect, it can tatally compress the charcoal powder into charcoal briquettes, less residue.
5. The pressure is highly increased because we have not only the four roller type briquette machine, also we have hydraulic type.

Technical parameters:

Model

                  Reducer



Speed

                         Roller size

 Main shaft       speed (r/min)



   Power

 (kw)



Capacity

   (t/h)

  YHQ290

  ZQ350

1:31.5

 Φ390*250

      15-17

   5.5

1-2

  YHQ360

  ZQ350

 Φ360*250

   7.5

2-3

  YHQ400

  ZQ400

 Φ400*250

   7.5

3-4

  YHQ430

  ZQ430

 Φ430*250

   11

4-5

  YHQ500

  ZQ500

 Φ500*300

   22

5-7

  YHQ650

  ZQ650

 Φ650*300

   30

8-10

  YHQ750

  ZQ750

 Φ750*380

   55

13-15

 YHQ800

  ZQ1250

 Φ750*570

   110

18-20

  YHQ850

  ZQ850

 Φ820*350

   55

15-18

PS

all the capacity is depend on the different material.The above just for your

 reference,for more,please email me.  Skype: tina52044   Tel:0086-18337198727

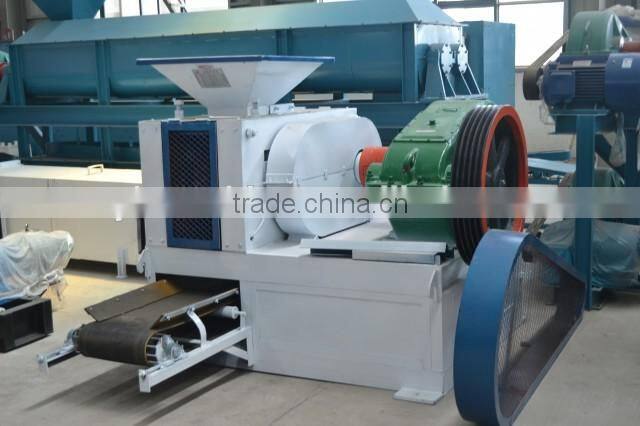

The structure of hydraulic black coal briquette machine

Our coal dust briquetting plant is consists of three main parts: the feeding part; transmission part; molding part.

1. The feeding part: it is meanly for charcoal powdery material from hopper evenly into the machine between the rollers for briquetting.



2. The transmission part: it is the main drive system, including the motor, reducer, triangle strip, coupling, driving spindle, open gear.



3. The Molding part: this is the core and also the most important of the machine for press the charcoal powder into charcoal briquettes.
High briquette forming ratio hydraulic black coal briquette machine

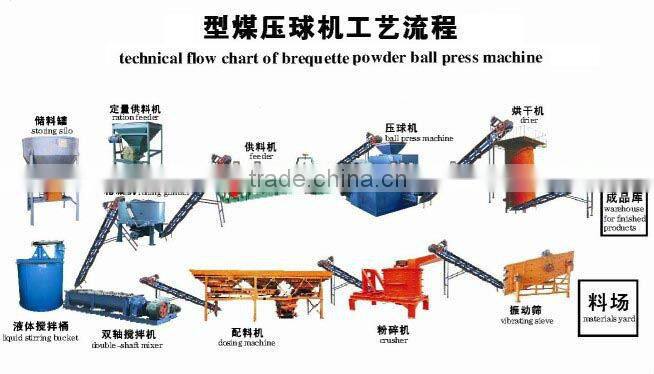

Working principle of hydraulic black coal briquette machine
The operation principle of  coal dust briquetting plant is lke this: the power produced by the motor, through the triangle strip to the reducer, and then is passed to the drive shaft, then through a pair of open gear, to ensure the two or four rollers synchronous (constant speed reverse)
This is the simple flow: Motor → Triangle Belt → Reducer → Coupler → Open Gear → Rollers.
High briquette forming ratio hydraulic black coal briquette machine
Applicable raw materials of hydraulic black coal briquette machine
harcoal powder, carbon dust, bamboo charcoal dust, shisha charcoal powder, coconut shell charcoal powder, jujube charcoal powder, coke charcoal powder, etc. Besides, our charcoal briquette machine can be also used to press coal, brown coal, white coal powder or dust, coke powder, coking coal, etc. This equipment is widely used in the field of chemical, refrectories, ceramics, mining, and metallurgy, etc.

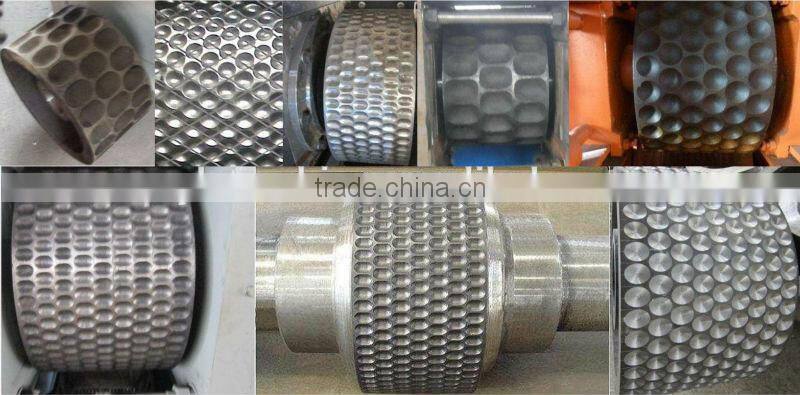

The shapes and size of hydraulic black coal briquette machine
Our coal dust briquetting plant with roller press can compress the charcoal powder into square, oval shape, egg shape, round shape, pillow shape, bread shape, cylinder, bar shape, etc. Also you can make the briquettes hollow. Besides, we can according to your special requirements to make the moulds for you, that means you can set the shape by yourself. Size of briquettes: as your needs within a certain degree.

High briquette forming ratio hydraulic black coal briquette machine

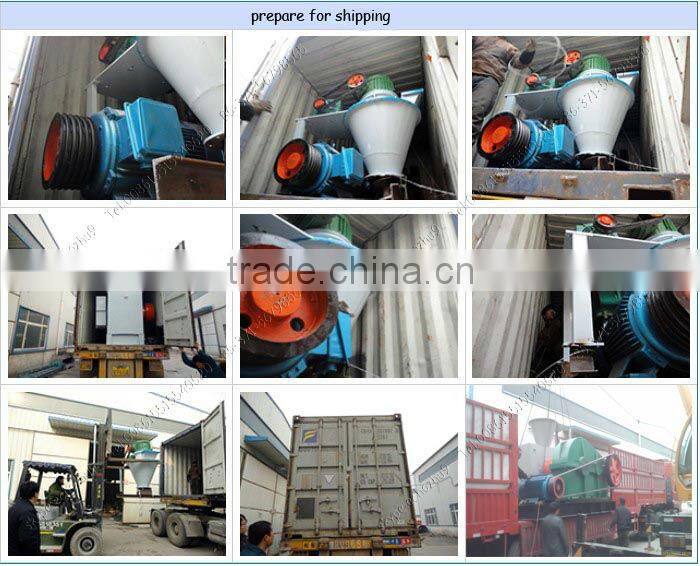

High briquette forming ratio hydraulic black coal briquette machine hydraulic black coal briquette machine of transportation
High briquette forming ratio hydraulic black coal briquette machine
ceritifate
High briquette forming ratio hydraulic black coal briquette machine
Our service for our customers:

♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.

♥. On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.

♥. After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.

Any question, welcome to contatc me freely at any time you need!
Skype: Tina52044
Mobile: 0086--18337198727
QQ or Wechat: 1072691023
