Help CenterERW89 Pipe Making Machiney
Related Products
Specifications
Commodity:pipe making machiney1.Pipe OD: 32mm-89mm
2.Thickness: 1mm-4.5mm
Commodity:pipe making machiney
I. Brief introduction:
89mm welded pipe production line is designed to produce welded pipes of 32mm-89mm in OD and 1mm-4.5mm in wall thickness, as well as corresponding square and rectangle tube.
II. Basic Technical Information:
1.Specification of pipes
Pipe OD: 32mm-89mm Thickness: 1mm-4.5mm
Square tube: 25mm×25mm 70mm×70mm, Thickness: 1mm-3.5mm
Length: 6 -12m Length Tolerance: ±3mm
2.Raw Material:
Material: Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80
3. Tube mill
Production Speed : 20-60m/min
Direction : left to right or right to left from operator`s side decided by customers.
III. The technical flow of the production line
Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming →HFwelding→Removing & outsied Bead →Cooling→Sizing→Cutting off→Conveying →Downloading → Packing →Warehousing
IV. Makeup of tube mill line
1. Double-reel Mechanical Uncoiler
2. Shear & Butt Welder
3. Cage Loop(Accumulator)

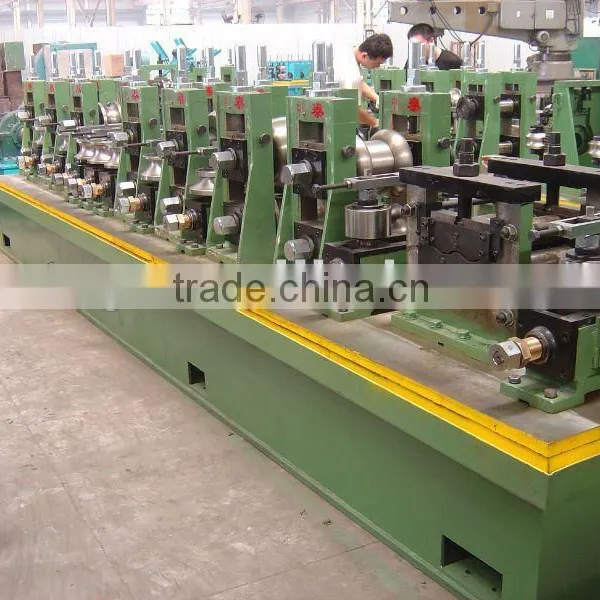

4. Tube mill
5. Solid State H.F. welder
6. CNC Flying Saw
7. Output Rollway
8. Rollers
