ERW 32 Pipe Making Machine

ERW 32 Pipe Making Machine thumbnail-1
ERW 32 Pipe Making Machine photo-1
US$ 100,000 - 1,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Pipe Production Line
Pipe Material:
Carbon Steel
Application:
Other, Energy Supply Pipe, Construction and structure
Contact Supplier Request Quote Chat Now
Shijiazhuang Zhongtai Pipe Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Pipe Production Line
Pipe Material Carbon Steel
Application Other, Energy Supply Pipe, Construction and structure
Place of Origin Hebei, China
Brand Name ZTZG
Model Number ERW32

Product: ERW32 pipe making machine



I  Description:

ERW32 welded pipe production line is designed to produce welded pipes of 10mm-

32mm in OD and 0.5mm-2.0mm in thickness, as well as corresponding square and rectangular tube.

ERW 32 pipe making machine



II. Basic Technical Information:

Specification

Round Pipe

O.D:10~32mm

Thickness:0.5~2.0mm

Square&Rectangular pipe

 10X10~25X25mm

Thickness: 0.5~1.5mm

Length

Length: 6 -12m                Length Tolerance:  ±3mm



2.Raw Material: Low carbon steel and low alloy steel:

 δb≤500Mpa                           δs≤235Mpa

3. Tube mill

Production Speed : Max 100m/min



III. The technical flow of the production line

Scroll up → Uncoil → Shear&welder → Accumulator→Forming→High-frequency welder → Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Binding →

 Weighing → Marking → Accessing Warehouse

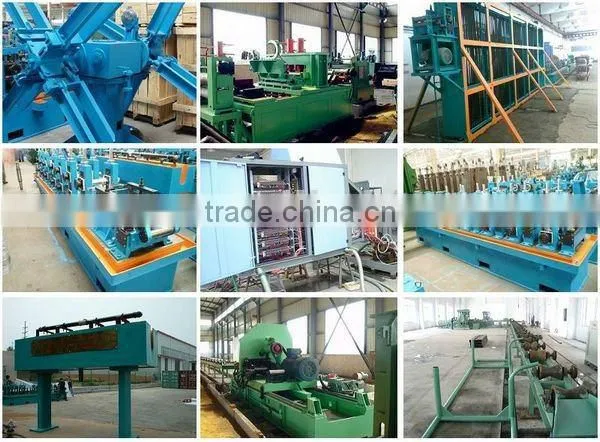

IV Make up

 1. Uncoiler

2. Shear & Butt Welder

3. Cage Loop (Accumulator)

4. Tube mill

5. 100KW Solid State H.F. welder

6. CNC Flying Saw

7. Output Roll way

8. Rollers



Remark:

To protect confidential information, Here only show basic parameters. Detailed parameter will be

known in the quotation list or negotiate with customer.



2 Quality inspection

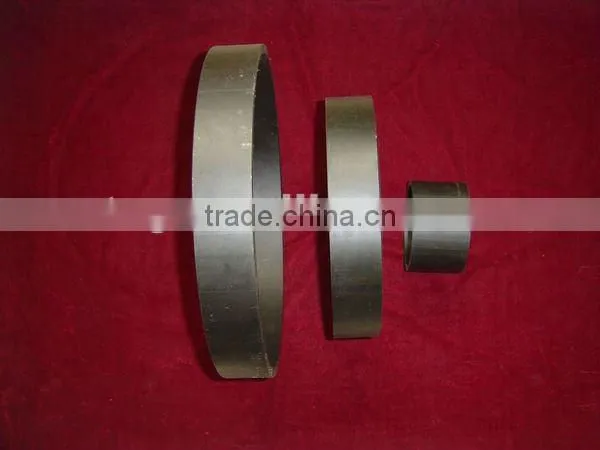

3 Finished product:

ERW 32 pipe making machine





 4 Company strength:



ERW 32 pipe making machine
