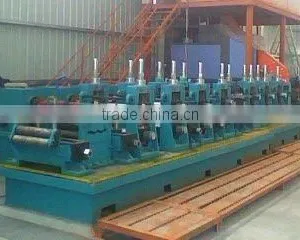

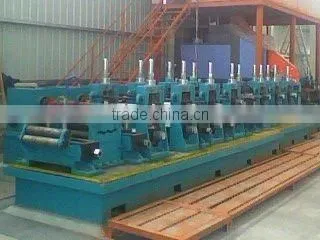

Help CenterERW114 Pipe Production Line
Related Products
Specifications
Commodity: pipe production linePipe OD: 50mm-114mm
Thickness: 1.5mm-5.0mm
Commodity: pipe production For ERW 114
114mm welded pipe production line is designed to produce welded pipes of 50mm-114mm in OD and 1.5mm-5.0mm in wall thickness, as well as corresponding square and rectangle tube.
II. Basic Technical Information:
1.Specification of pipes
Pipe OD: 50mm-114mm Thickness: 1.5mm-5.0mm
Square tube: 40mm×40mm 90mm×90mm, Thickness: 1.5mm-4.0mm
Length: 6 -12m Length Tolerance: ±3mm
2.Raw Material:
Material: Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80
3. Tube mill
Production Speed : 20-50m/min
Direction : left to right or right to left from operator`s side decided by customers
III. The technical flow of the production line
Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming →HFwelding→Removing & outsied Bead →Cooling→Sizing→Cutting off→Conveying →
Downloading → Packing →Warehousing
IV. Makeup of tube mill line
1. Double-reel Mechanical Uncoiler
2. Shear & Butt Welder
3. Cage Loop(Accumulator)
4. Tube mill
5. Solid State H.F. welder
6. NC Flying Saw
7. Output Rollway
8. Rollers
