HF Welded Pipe Line For HG355

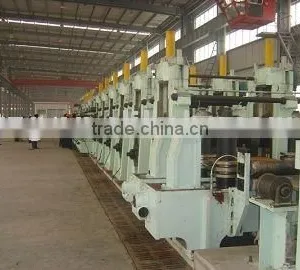

HF Welded Pipe Line For HG355 thumbnail-1

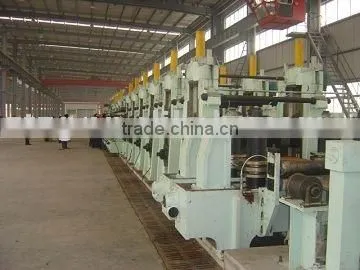

HF Welded Pipe Line For HG355 photo-1
US$ 40,000 - 700,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Pipe Production Line
Pipe Material:
Carbon Steel
Application:
Drain Pipe
Contact Supplier Request Quote Chat Now
Shijiazhuang Zhongtai Pipe Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Pipe Production Line
Pipe Material Carbon Steel
Application Drain Pipe
Place of Origin Hebei, China
Brand Name ZTZG
Model Number ERW355

Specifications

Commodity: HF welded pipe line
OD:114mm- 355mm
Wall thickness :4.0mm-14.7mm
Material:Carbon steel, low alloy steel

 Commodity: HF welded pipe line For ERW355



To protect confidential information, Here only show basic parameters. Detailed parameter will be known in the quotation list or negotiate with customer.



Technical Flow:
Uncoiling - Flattening-Shearing&butt welding-Strip Accumulating-Forming-High-frequency induction welding-Bead and burr removing-Zinc patching -Cooling-Sizing Inside Removing-UltrasonicTesting-Cutting-Checking &Collecting-Binding-Weighing-Marking-Accessing Warehouse



1.Product Specifications
I. Round pipe diameter range: Φ114mm-Φ355mm
     wall thickness :3mm-16mm
II. Square and rectangle tube : 90*90mm-250*250mm
     wall thickness range 3-14mm
III .Tube and pipe length: 4-12m


 2. Material Specifications:
Low carbon steel and low alloy steel:

                       δb≤550Mpa
                       δs≤235Mpa


 3  Line specification
   production speed:0-30m/min
   Line Direction: right to left(from operator' s side)
