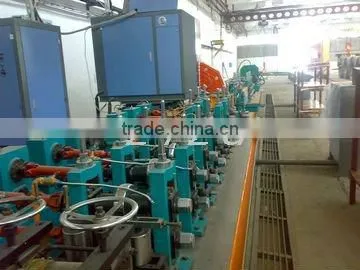

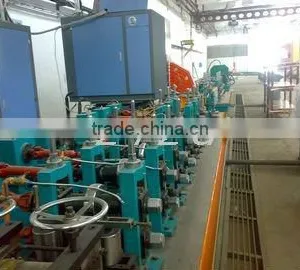

Help CenterHG76 High Frequency Pipe Production Line
Related Products
-
Straight Welded Pipe Mill LineUS$ 200,000 - 300,000MOQ: 1 Set -
Straight Welded Pipe Making MachineUS$ 200,000 - 300,000MOQ: 1 Set
-
ERW50 Tube MillUS$ 200,000 - 300,000MOQ: 1 Set
-
ERW165 H.F. Welded Pipe Making MachineUS$ 4,444 - 77,777MOQ: 1 Set
-
ERW89 Pipe Making MachineUS$ 40,000 - 700,000MOQ: 1 Set
Specifications
Commodity:High Frequency pipe production linePipe OD: 32mm-76mm Thickness: 1.5mm-4mm
Welcome to visit our factory
Commodity |
High Frequency Welded Pipe production line |
Round Pipe Size(mm) |
32mm - 76mm |
Pipe Thickness (mm) |
1.5mm-4.0mm |
Square Pipe Size(mm) |
25mm*25-60mm*60mm |
Pipe Thickness (mm) |
1.5mm-4.0 mm |
|
|
Pipe Length(m) |
6 -12m |
Length Tolerance(mm) |
±3mm |
Line Direction |
right or left(from operator's side) |
Production Speed(m/min) |
20-70 m/min |
Low Carbon Steel And Low Alloy Steel: |
δb≤550Mpa ,δs≤235Mpa |
Technical Flow |
Scroll up→ Uncoil→ Flattening→ Cutting head, tail→ Strip Steel head-tail butt welding→ Looping storage→ Forming→ High-frequency induction welding→ Removing external burr→ Cooling→ Cutting→ Checking & Collecting→ Binding→ Accessing Warehouse. |
Tube Bottom Pass line/ Line Power/ Electricity Input Power etc. |
Belong to confidential information and detail parameters will be known in the quotation list. |
