5-10KM Microwave Industrial fm hd Analog Wireless Video Audio Transceiver Device

Specifications

fm hd analog wireless video audio transceiver device
1. Transmission distance:5~10km
2. RS485 control signal (PTZ command)

5-10KM microwave industrial fm hd analog wireless video audio transceiver device



specification:

1. Waterproof and dustproof type Ku-band industrial grade wireless video transmission equipment PTZ commands

2. Frequency range:10.7~15.7GHz(Video) 227~233MHz(Command)

3. Frequency band:25MHz

4. Transmission distance:5~10km

5. Function: transmission of video signals, control signal receiving PTZ command(RS485)

6. Configuration list: transmitter, receiver, transmitting and receiving feed, 0.45m pot-shaped antenna



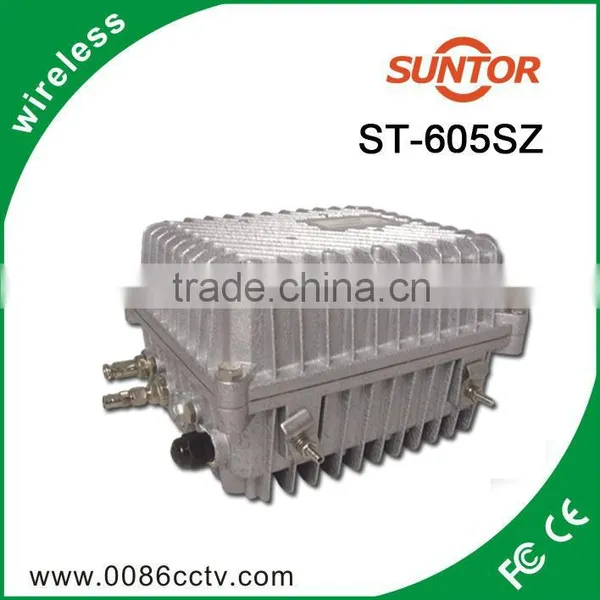

Product Overview:
ST-605SZ integrated wireless video instruction transmission system adopts frequency modulation microwave mode to transmit the audio/video signal and receive RS485 signal (control the rotation of camera, lens, lights and rain strip) from the control center. The system features long transmission distance, good stability, and may adjust the digital display via video frequency and set up the frequency rate by the computer; it is waterproof and especially suitable for application in the field and under the bad environment. The system has several bands for selection: L (1.0-1.7GHz), Ku (10.7-15GHz), the receive frequency is 227-233MHz, it has good anti-interference, and it realizes real-time and clear image transmission with a distance of 5-10 kilometers. The system boasts good performance and price ratio.

Special Version:
The products from the frequency band is divided into: L-band, Ku-band
From the distance into: 5KM,10KM

Product Selection: ST-605SZ(L), ST-605SZ(Ku)

The transmitting distance of each model is difference, the customer needs to pay attention below remarks when selection.

L-band(1.0~1.8GHz), Ku-band(10.7-15GHz)

Microwave image transmitter system indicators
Working frequency   1GHz-1.7GHz ,10.7GHz-15GHz
Transmitter Power 15dBm-30dBm
Output Impedance  50 ohm
Input Video peak-peak &#118alue
Input audio:      0.1-1.0V peak-peak
Operating voltage  12VDC500mA
Modulation mode  FM
Modulation bandwidth  25MHz
Video System PAL
Ambient temperature  -40~+55°C



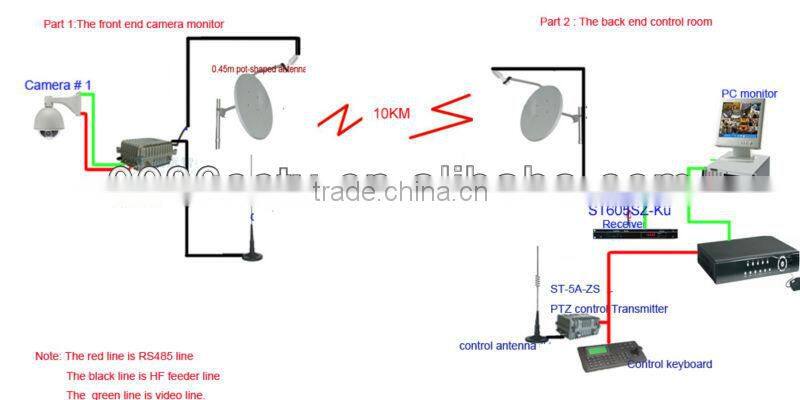

Working connecting diagram:
