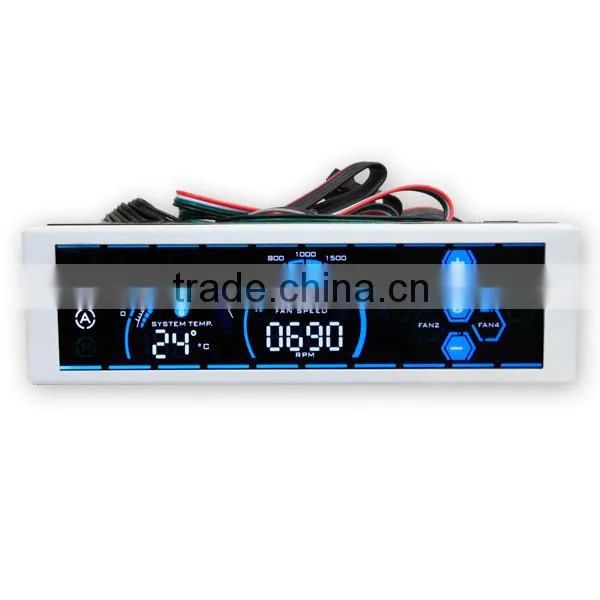

Help CenterComputer Fan Con-100L 6 Chatroller Fan Speed Controller Gaming Fan 5.25 Touch LCD Display Liquid Cooler Pump Control
Related Products
-
ASFC-195 Cpu Air Cooler Fan Speed Controller From AlseyeUS$ 15 - 21MOQ: 500 Pieces -
A-100H(B) pc Axial Fan Speed Controller From AlseyeUS$ 17.5 - 22.5MOQ: 500 Pieces
-
ASFC-200 Computer Axial Case Fan Remote ControlUS$ 15 - 20MOQ: 500 Pieces
-
WATER MAX 80DTG Cpu Water Cooling PWM 4pin Aluminum RadiatorUS$ 45 - 55MOQ: 100 Pieces
-
Liquid Cooler WaterMax120 PWM 4pin Aluminum Radiator Water Cooler Cooling BlockUS$ 29 - 35MOQ: 100 Pieces
Item specifics
Noise:no
Type:Fan
Brand Name:ALSEYE
Fan Size:5.25 inch
Package:Yes
Application:Computer Case
Compatible CPU:yes
Heatsink Material:Aluminum
Model Number:a-100L
Voltage:for fans -12V, for LCD and IC -5V

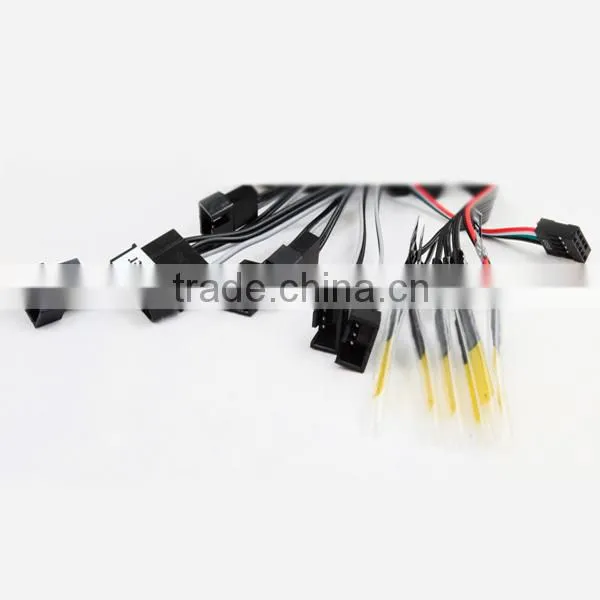

length of the wires for the fans:60 cm
length of the wires for the sensors:64 cm
Product Description
You may say, it is so expensive!
But, have you compared our products with other brands?
For 6 channels by 24 watts and for control of water cooling pump it is not expensive absolutely. It is the newest design currently in the world. You will like it!
DESCRIPTION:

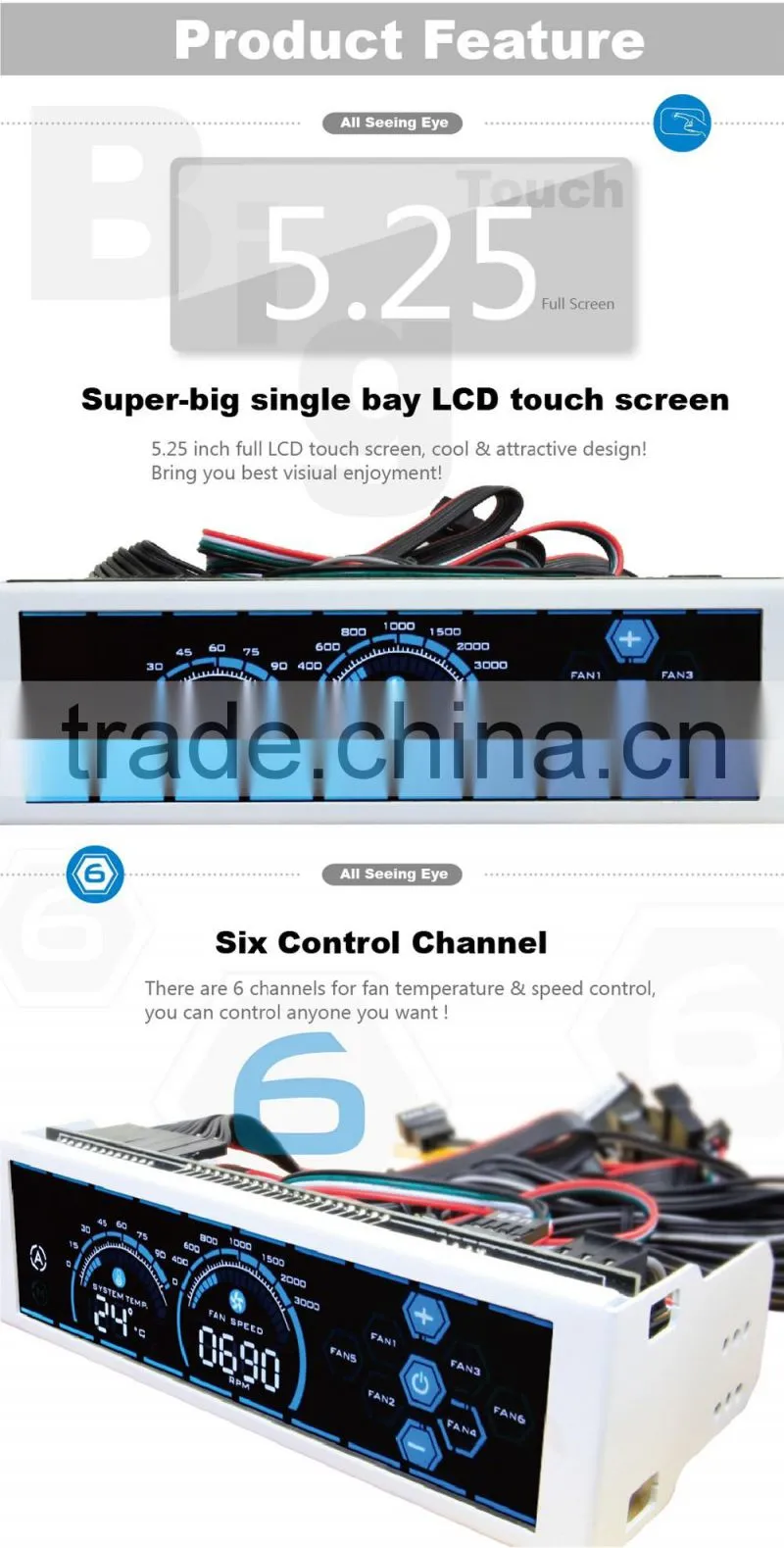

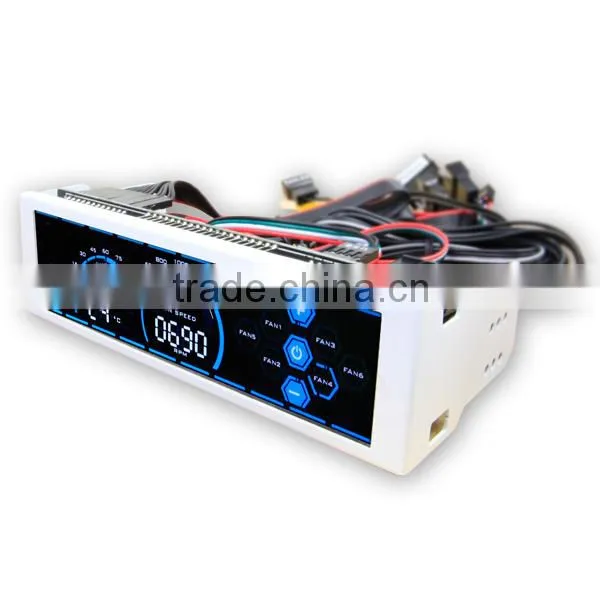

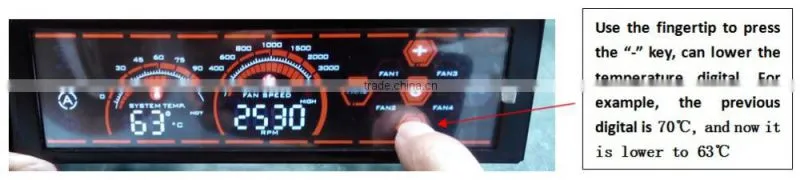

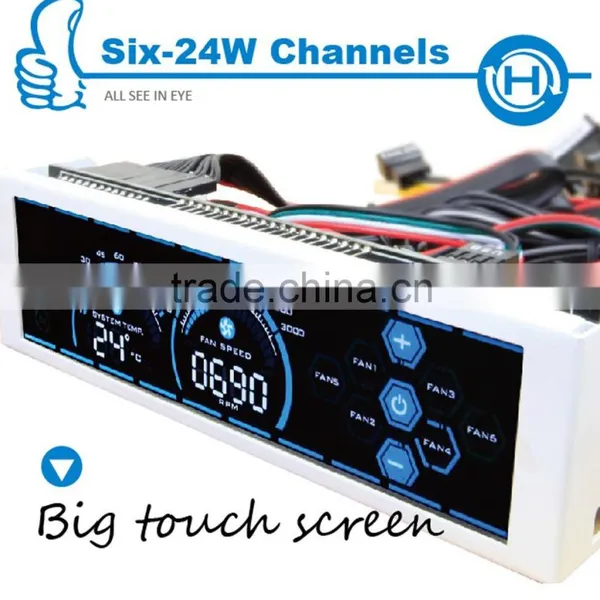

1. Super-big single bay LCD touch screen;
2. Six channels for temperature & fan speed control. Usually it controls 6 fans. But you may use 1 to 2 cable (for 2 fans, but only one fan with FG signal) or 1 to 3 cable (for 3 fans, but only one fan with FG signal). So it may also control 12 fans or 18 fans depending on your additional cable type;
3. 6x24 watt channels for liquid /water cooling pump control;
4. Integrated short circuit protection;
5. Be compatible with 3pin & 4pin fans.
• Specifications
Demensions |
147*66*42.6 mm |
Weight |
258.8 g |
Material |
LCD Screen, Metal, PCB |

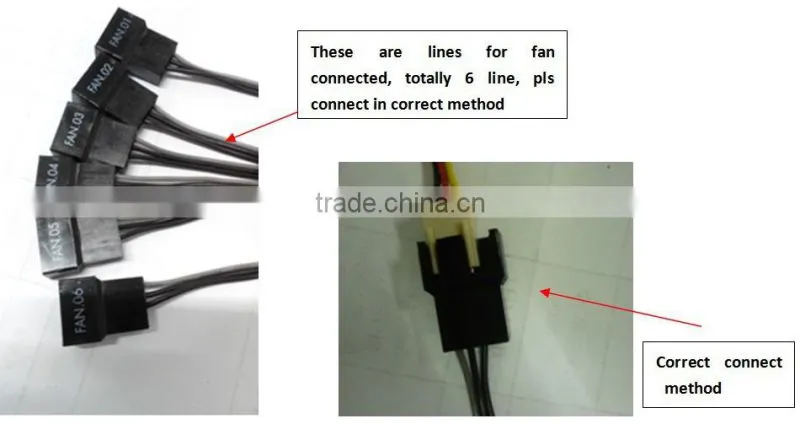

Fan Connector |
3 pin/4 pin |

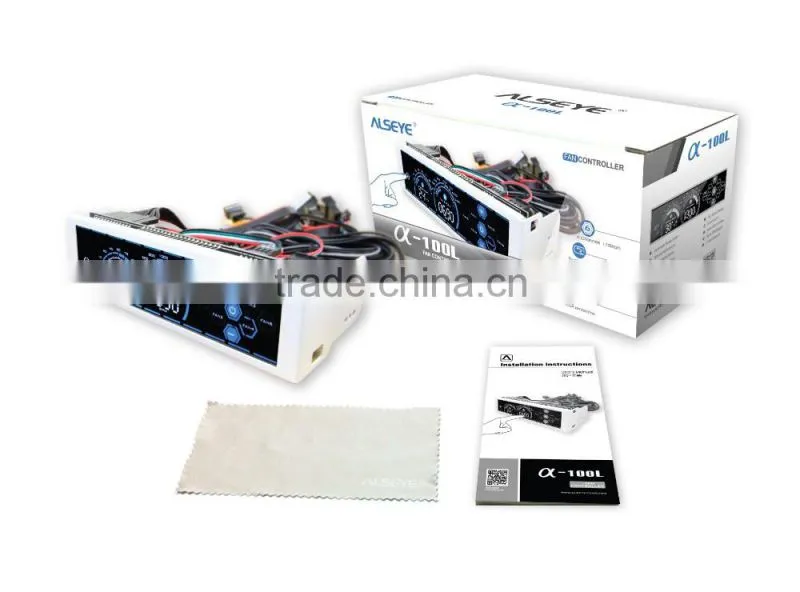

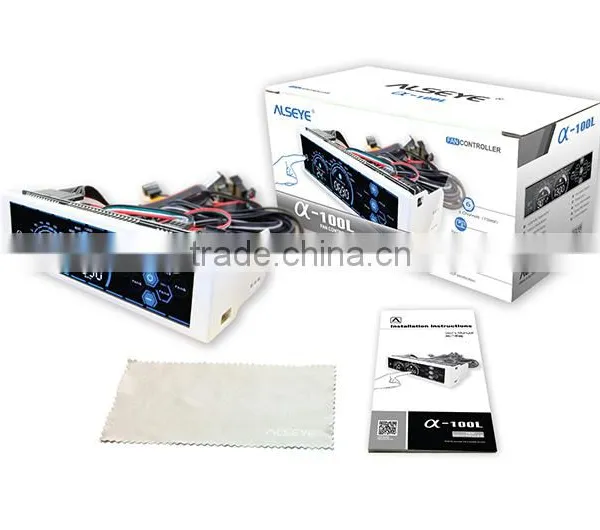

Included Accessories |
4 x M3 Screws |

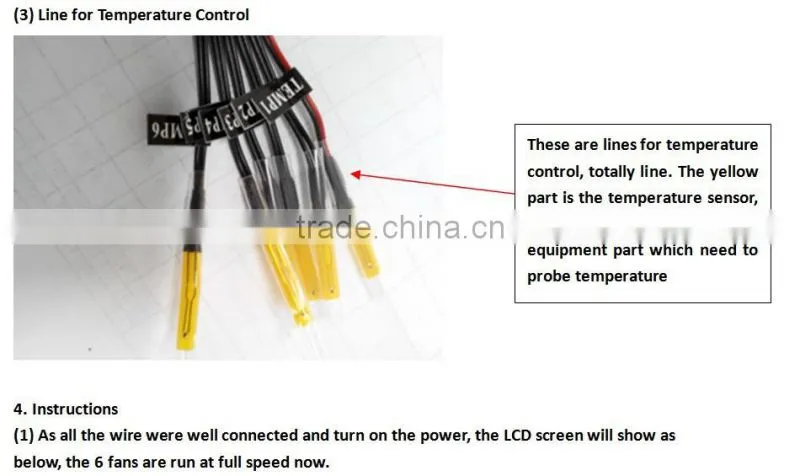

Temperature Sensors |
6 x Temperature Sensors |
Control Modes |
Manual / Automatic |
Fan Channel Quantity |
6 |
Fan Channel Wattage |
15 Watts x 6 |
Temperature Range |
0 to 100℃ |
Measurement Frequency |
2 Seconds |
Temperature Alarm Range |
25℃ to 90℃ |
Minimum Power To Fans |
40% |
Screen Size |
5.25 Inches |
Screen Type |
Resistive Touch |
Fan Control Method |
PWM |
This model is WITHOUT Wifi Function. a-100L(R) , a-100L(WR) and a-100L(B) don't have WIFI function, either.
Model WITH Wifi function please see a-100H, a-100H(WB), a-100H(WR) or a-100H(B).
