Help CenterAlseye A-100H(WB) Touch Screen Fan Controller With Wifi Supplier's Choice
Related Products
-
Alseye ASFC-422 pc Fan Speed ControllerUS$ 10.5 - 15.3MOQ: 500 Pieces -
Alseye ASFC-200 Digital Fan Speed ControllerUS$ 15 - 20MOQ: 500 Pieces
-
Alseye Fan Controller A-100L Exhaust Auto Fan Speed ControllerUS$ 15.5 - 21.5MOQ: 500 Pieces
-
Fan Controller A-100L for Computer Case Cpu Cooler Touch Screen ControllerUS$ 15.5 - 21.5MOQ: 500 Pieces
-
ASFC-422 Fan Electric Fan Control ModuleUS$ 10.5 - 15.3MOQ: 500 Pieces
Item specifics
Noise:no
Type:Fan
Brand Name:ALSEYE
Fan Size:5.25 inch
Package:Yes
Application:Computer Case
Compatible CPU:yes
Heatsink Material:Aluminum
Model Number:a-100H(WB)
Installation location:front panel
Voltage:For fans -12V for LCD and IC -5V
Length of the wires for the fans:60 cm
Length of the wires for the sensors :64 cm
Retailed box:100H
Product Description
You may say, it is so expensive!
But, have you compared our products with other brands?
For 6 channels by 24 watts and for control of water cooling pump, besides, with WIFI function, it is not expensive absolutely!
It is the newest design currently in the world.
You will like it!
DESCRIPTION:

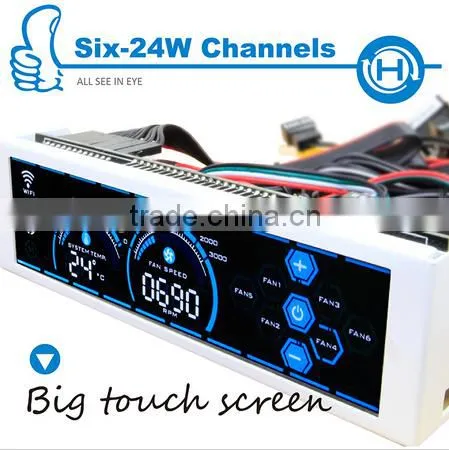

1. Super-big single bay LCD touch screen;
2. Discrete WiFi module (the first and unique WIFI design in PC fan speed controller in the world for it ihas the function of a WIFI flash. Your computer connects to WIFI derictly after installation of the CD driver. WIFI module doesn't support WINDOWS 10) ;
3. Six channels for temperature & fan speed control. Usually it controls 6 fans. But you may use 1 to 2 cable (for 2 fans, but only one fan with FG signal) or 1 to 3 cable (for 3 fans, but only one fan with FG signal). So it may also control 12 fans or 18 fans depending on your additional cable type;
4. 6x24 watt channels for liquid /water cooling pump control;
5. Integrated short circuit protection;
6. Be compatible with 3pin & 4pin fans.
• Specifications
Demensions |
147*66*42.6 mm |
Weight |
258.8 g |
Material |
LCD Screen, Metal, PCB |
Fan Connector |
3 pin/4 pin |
Included Accessories |
4 x M3 Screws |
Temperature Sensors |
6 x Temperature Sensors |
Brightness Levels |
On / Off |
Control Modes |
Manual / Automatic |
Fan Channel Quantity |
6 |
Fan Channel Wattage |
24 Watts x 6 |
Temperature Range |
0 to 100 degree centigrade |
Measurement Frequency |
2 Seconds |
Temperature Alarm Range |
25 to 90 degree centigrade |
Minimum Power To Fans |
40% |
Screen Size |
5.25 Inches |
Screen Type |
Resistive Touch |
Fan Control Method |
PWM |
This model is WITH Wifi Function. a-100H, a-100H(B), a-100H(WR) also have WIFI function.
Model WITHOUT Wifi function please see a-100L, a-100L(B), a-100L(WR) & a-100L(R).
