High Quality Gemological Lapidary Machine With Faceting and Polishing Functions With High Precision
- ShenZhen.China
- Credit Card
You May Like
-
X Fluorescence Spectrum Analyzer for Metal and Mineral
-
X Fluorescence Spectrum Analyzer, Mineral Analyzer
-
Faceting And Polishing Gemstone Machine With Index Wheels of 64 and 96.
-
Gemological Lapidary Machine With Faceting and Polishing Functions With High Precision
-
UV/VIS Spectrophotometer With Wavelength Range of 225-1100nm GEM-3000
-
Multi-functional Mini Gem Testing Toolkit
Product Details
| Brand Name | Fable | Place of Origin | Guangdong, China | |
| Model Number | FJM-2014 |
Product Description
[Product Description]

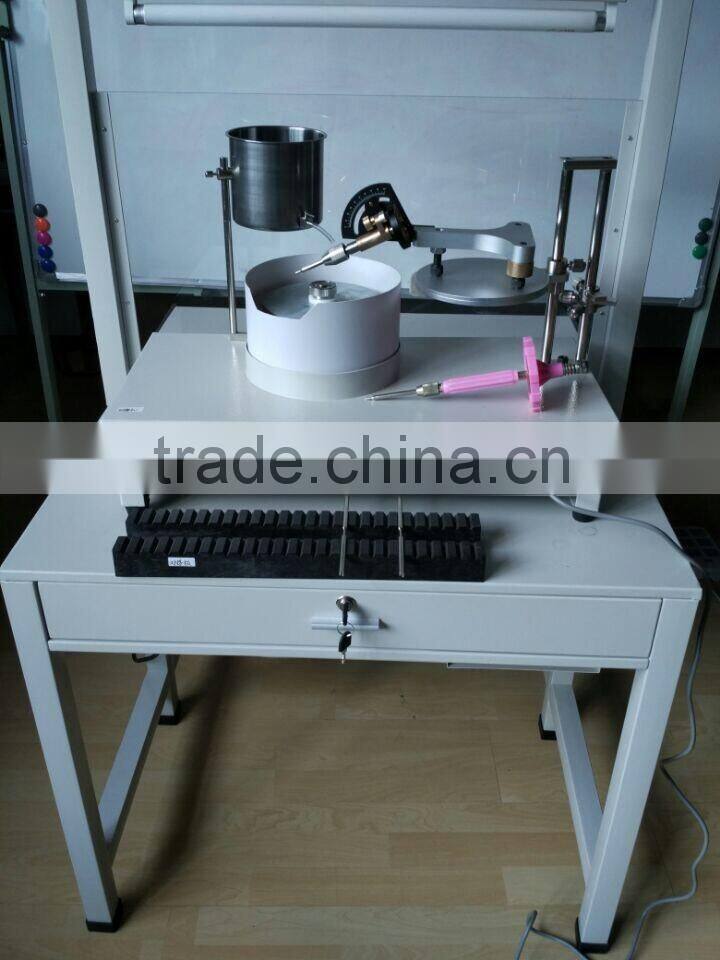

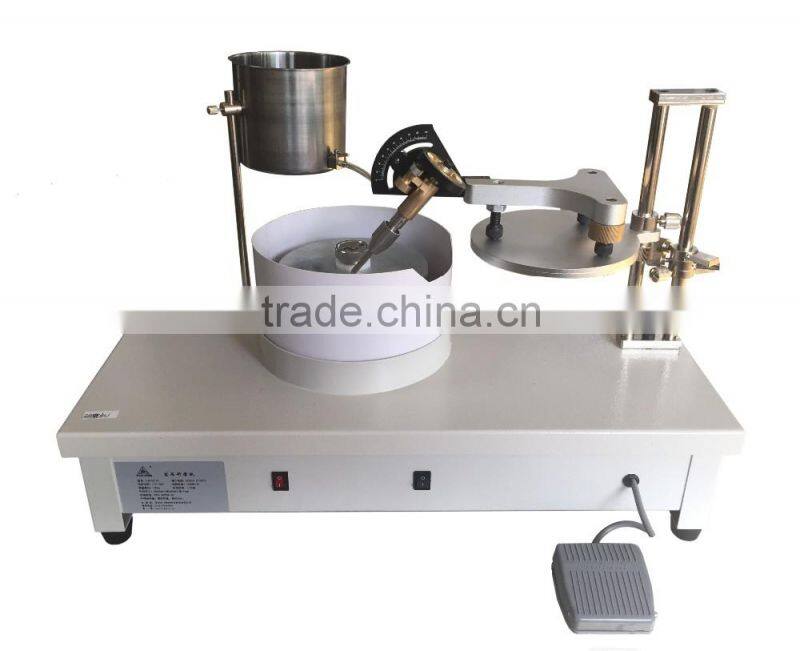

Gemological Lapidary Machine with Faceting and Polishing Functions with High Precision.
[Product Application]
gemology, gem/jewellry manufacturing industry, jewellery technology school, etc.
[Product Accessories]
1.One Bucket
2.One Shaping holder
3.One Faceting holder
4.One Polishing and Faceting disk,Diameter:150mm
5.With Power switch
6.Right and Left Key
7.Foot controller
8.One cable connector
9.10pieces of dot stick
10.One set of stander
[Product Parameters]
| *Model | FJM-2014 |
| *Input Voltage | AC220V,50/60HZ |
| *Moter Power | 170-180V |
| *Speed of Moter | 1350r/min |
| *Speed of Mainshaft | 2300-2800r/min |
| *Diameter of the disk | 150mm |
| *Angle Range | 1-90 degree |
| *Size of Machine | 600*300*380mm |
| *With vernier scale,accuracy | 0.1mm |
| *Index wheel | 96 |
[Operation Methods]
There are ways to operate the machine by automatic and foot control.
1.Connecting with power and switch on,the speed of the disk with 1350r/min is the motor speed.This speed can not be changed.If you need the lower speed,please go by foot controller;
2.Connecting with power and foot controller,power off and make the key to right or left,press the foot controller,the motor working and disk moving on.
