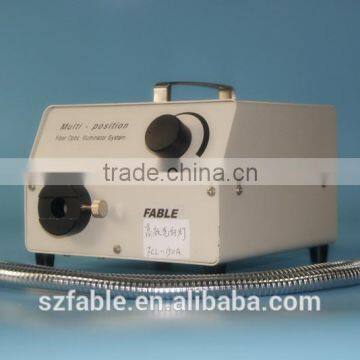

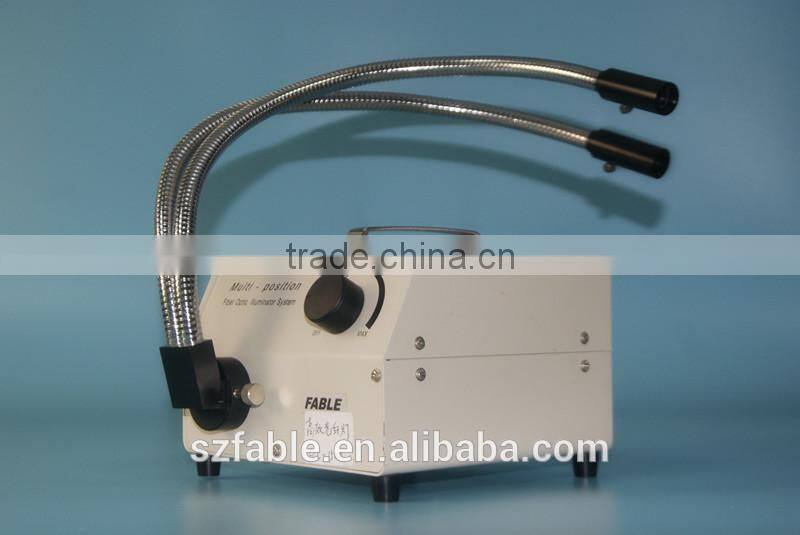

Fable FCL-150A Efficiency Optic Fiber Lamp for Jewelry in Shenzhen

    Optic fiber illumination with 12V/35W cold light halogen lamp cup,the higher luminous efficiency,adjustable high efficiency light sources,  card circuit.with double-ended 100mm fireresistant optical soft tube;built-in radiator fan ,so you can work long time.unique lamp hanger,so that easy and safe to replace the bulb;no screws outside the matel box,good looking appearance.

Optic Fiber Illumination Instructions

FCL-150A the Optic Fiber Illumination(also called cold light source),with high luminous,low power consumption,collection of light,continuous spectrum and easy to operate;it is suitable for illumination when observing the absorption spectrum of gemstone.This model of optic fiber illumination with 12V/35W cold light halogen lamp,higher luminous efficiency,600mm fireresistant glass optical tube,bult-in radiator fan,so that it can work long time;unique lamp hanger makes it easy and safe to change the lamp.Adjustable high efficiency light sources,card circuit,mantenance easily;beauty expearence.

I.   Technical Date

1.  main unit of light source:metal crust with light color;no screws outside;

2.  condenser halogen lamp:12V/35W cold light halogen lamp,continous spectrum;

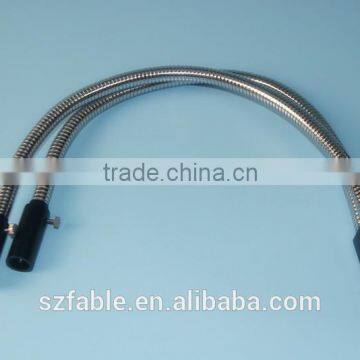

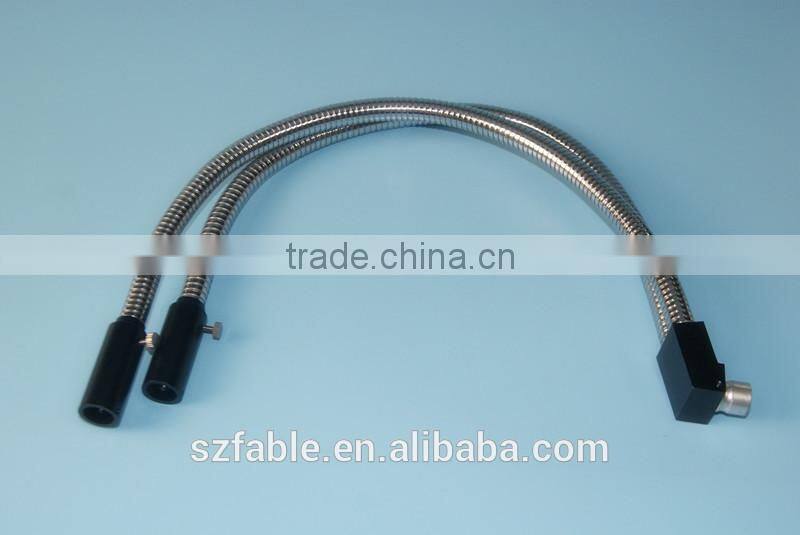

3.  long life optical tube:two 1000mm firesistant glass optical soft tube,diameter of beam is 4mm

4.  Power supply:220V-240V/50HZ;fuses:0.2A

II.   Operation

1.  switch on and turn on the power switch

2.  adjust the brightness of light as request

III.   problems and maintenance

1.  fuses matters:cheack the fuse box,whether the fuses blew or not;

2.  the halogen lamp is broken or loose:power off 30minutes later,backside the optical lamp and then find there is a golden or silver cover board for lamps change,loose the screw and open the cover board,take out the lamp cup and lamp stand together,then take off the lamp cup,replace it with same mode lamp cup,pull it to top along ,then close the cover board and fix screw.

3.  the optical tube should avoid twisting frequently;

4.  1 year warranty since sold out,with life-long maintenance.
