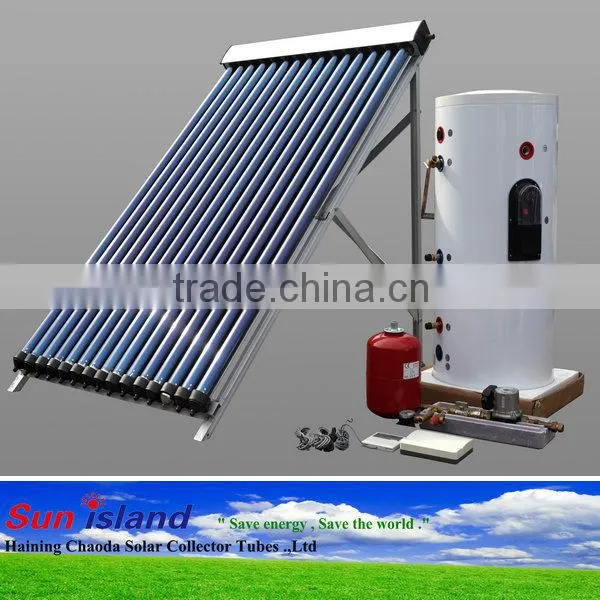

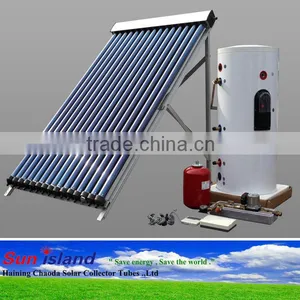

Split Type Heat Pipe Solar Water heater
Product Description

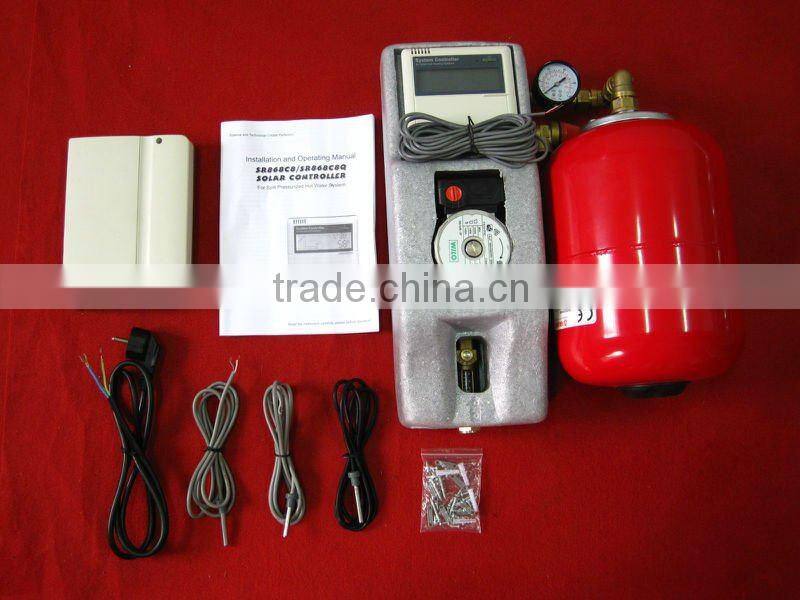

Split pressurized solar water heater (With heat pipe solar collectors) (LC-S003) We have put together a number of packages which include everything you will require for your installation. In addition to the heat pipe solar collector and cylinder, each package includes: Solar pump station Controller with sensors Expansion vessel Connections Check valve, safety valve Sloping roof kit
Features of split pressure solar water heaters:
1. Pipeline is made of all red copper and conducted by heat transfer medium liquid.
2. Water does not flow in the vaccum tubes and is operated when confined.
3. The crust uses aluminum alloy mould material of high strength with airflow design.
4. It is furnished in good style.
5. Tank is equipped with electric water heater setting, automatic temperature controller.
6. With increased anode magnesium bar stick to prevent furring. It is the ture Two in One.
7. The insulating layer uses polyurethane bulk bubble.
8. It successfully carries out installation of separation according to fabricating yard and is harmoniously blended with architecture.

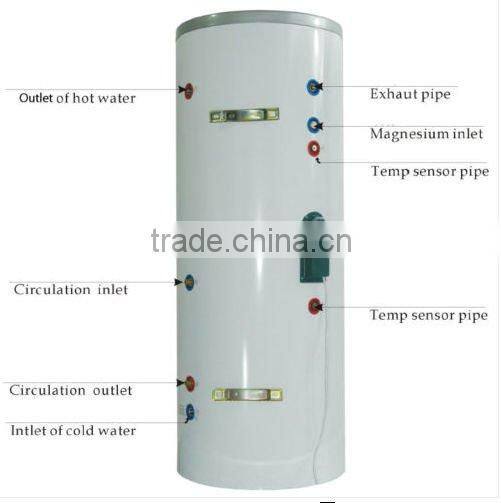

Material: Water tank:
1) Water tank (interior): Stainless steel 304-1.5mm/2mm
2) Copper coils(single): Dia. 12mm, thickness 0.8mm, length 15m
3) Tank capacity: 150L, 200L, 300L, 400L, 500L
Heat pipe solar collectors:
1) Manifold: Aluminum alloy 1.5mm
2) Vacuum tube dimensions: 58mm x 1.8m, 47mm x 1.5m
Work station:
SP106 Pressure: 6 bar Electrical heater: 1.5kw-3kw, 220V/110V, 50Hz
Warranty: 3 years for full system / 15 years for vacuum tube
MOQ: Negotiation
Lead time: Within 2 weeks for full container
Payment: Telegraphic Transfer (T/T), Letter of Credit (L/C)
