Home > Consumer Electronics > Water Heater & Components > Water Heater Parts > Separated Heat Pipe Pressure Solar Water Heater

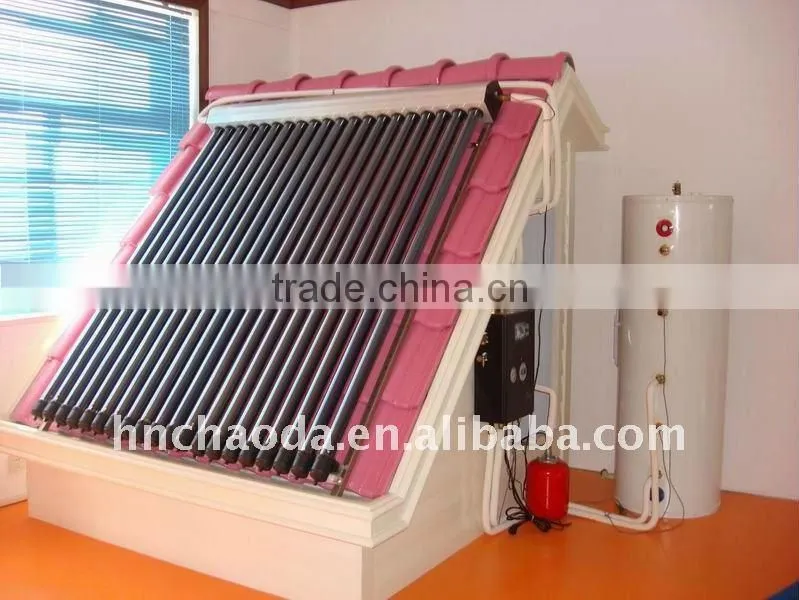

Separated Heat Pipe Pressure Solar Water Heater

Name: Separated Heat Pipe Pressure Solar Water Heater
Brand: Sun Island
SKU: 124274985
Availability: InStock

Separated Heat Pipe Pressure Solar Water Heater thumbnail-1

Separated Heat Pipe Pressure Solar Water Heater photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Sun Island

Model Number:

100L-500L

Contact Supplier Request Quote Chat Now

Haining Chaoda Solar Collector Tubes Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai /ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Sun Island

Model Number 100L-500L

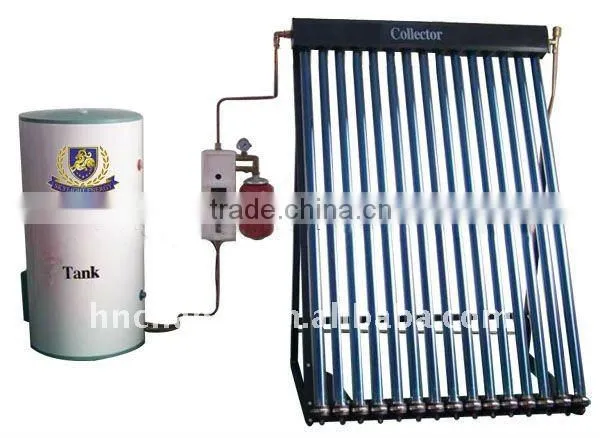

split pressurized solar water heater

Model Name	Area	Heat Pipe			Volume (liters)	Gross wet(kg)	20GP/40GP/40HC loading Qty(sets)
Model Name	Area	Ø(mm)	Length(mm)	Qty(pcs)	Volume (liters)	Gross wet(kg)	20GP/40GP/40HC loading Qty(sets)
CD-SPA-58/1800-10	1.31	58	1800	10	100	75	43/90/106
CD-SPA-58/1800-15	1.97	58	1800	15	150	130	29/59/70
CD-SPA-58/1800-20	2.62	58	1800	20	200	153	22/46/54
CD-SPA-58/1800-25	3.49	58	1800	25	250	162	20/4048
CD-SPA-58/1800-30	3.93	58	1800	30	300	214	18/38/45
CD-SPA-58/1800-40	5.22	58	1800	40	400	273	14/28/33
CD-SPA-58/1800-50	6.55	58	1800	50	500	350	11/22/26

Materials:
Inner tank: SUS304-2B food grade stainless steel
Outer tank: Galvanized steel-alloy
Bracket: Complete aluminum-alloy
Thickness: Inner tank: 2mm Outer tank: 0.4mm Bracket: 1.6mm
Heat pipe vacuum tube:
Tri-elements of rose copper, stainless steel and aluminum nitride planting
Straight copper heat pipe with anti-freeze liquid inside will not allow the tube to brake in low temperature
Heat absorption rate: More than 93%
Diameter: 47mm or 58mm
Length: 1500 or 1800mm
Temperature insulation: Rockwool
Thickness: 50mm
Temperature conservation: Maximum 72 hours
Capacity:
Optional 150, 200, 250, 300 ,400and 500 Liters

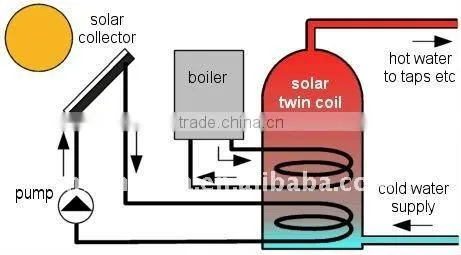

Copper coil in water tank for heat transferring as twice heat exchange
Warranty: 5 years for whole system
Standards: ISO9001: 2008, CE

Outer packing: Carton box
