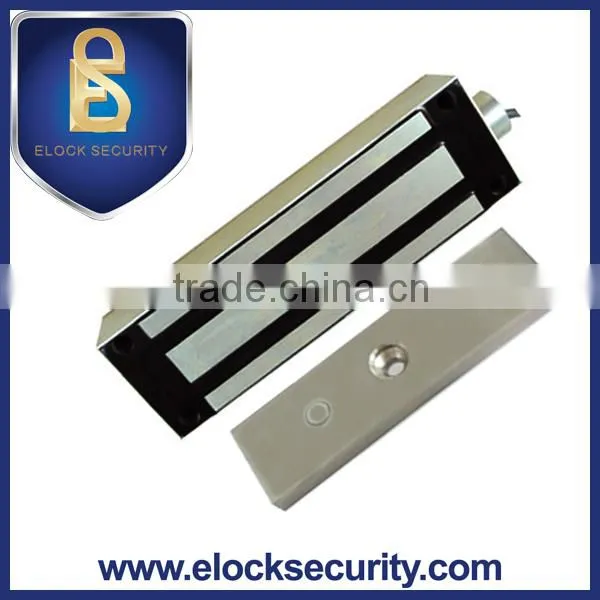

Waterproof Magnetic Lock 500KG(1200LBS)

Name: Waterproof Magnetic Lock 500KG(1200LBS)
Brand: ELOCK SECURITY
SKU: 124274841
Availability: InStock

US$ 10 - 50 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ELOCK SECURITY

Model Number:

ES500GW

Zhongshan Elock Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhongshan

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ELOCK SECURITY

Model Number ES500GW

Specifications

1) Waterproof Magnetic Lock
2) Holding force: 500KG(1200LBS)
3) 304 stainless steel housing

Waterproof Magnetic Lock 500KG(1200LBS)

Features

1. Dual voltage selectable (12VDC or 24VDC)

2. 304 stainless steel housing

3. Epoxy sealed electronics and weatherized for indoor and outdoor use

4. Anti-Residual magnetism designed

5. Low current consumption

6. Reliable holding force

7. High strength material, anodized aluminum housing

8. Anti-residual magnetism designed

9. Durable and silence operation

10. CE Certificate by European Union

Specification

Model	ES500GW
Feature	Fail-safe: Power to lock
Lock Size	216 L X 41 H X 63 D mm
Armature Size	185 L X 16 H X 61 D mm
Holding Force	500KG(1200LBS)
Voltage	12/24VDC
Current Draw	12V/460mA; 24v/240mA
Material	Finishes for shell: Anodized aluminum Finishes for magnet: Zinc Finishes for Armature: Zinc
Certification	CE, ROHS, CMA
Advantage	Low power consumption, high efficiency
Application	Metal doors, wooden doors, fireproof doors, glass door
Weight	Approx.: 5kg
