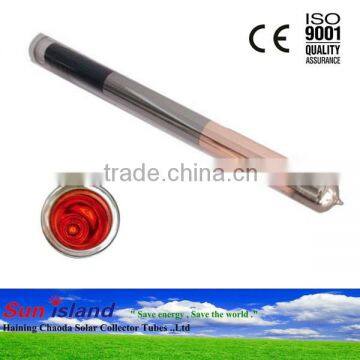

Popular 58mm1800mm Solar Water Heater Three Target Solar Vacuum Tubes with Purple Golden Color
PRODUCT FEATURE
Material: high borosilicate 3.3 glass.
Structure: all-glass double-tube co-axial structure.
Color: blue or purple golden.
Size:58mm×1800mm.
Thickness: 1.6mm.
Warranty: 15 years.
High absorptance: 93%~96%(AM1.5).
Low emittance: 0.04~0.06(80°C±5°C).

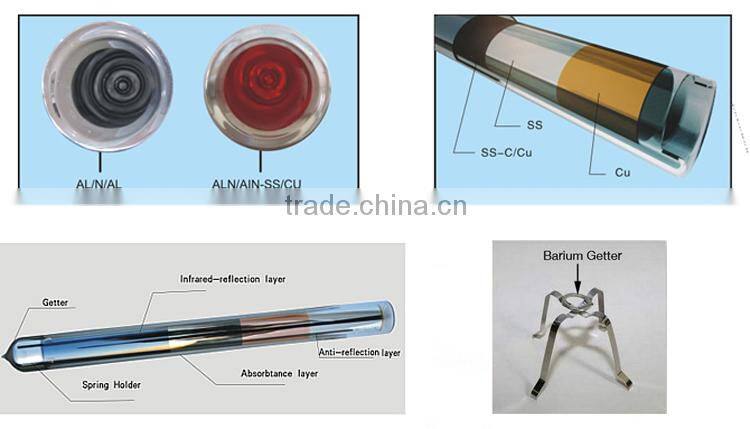

PRODUCT STRUCTURE

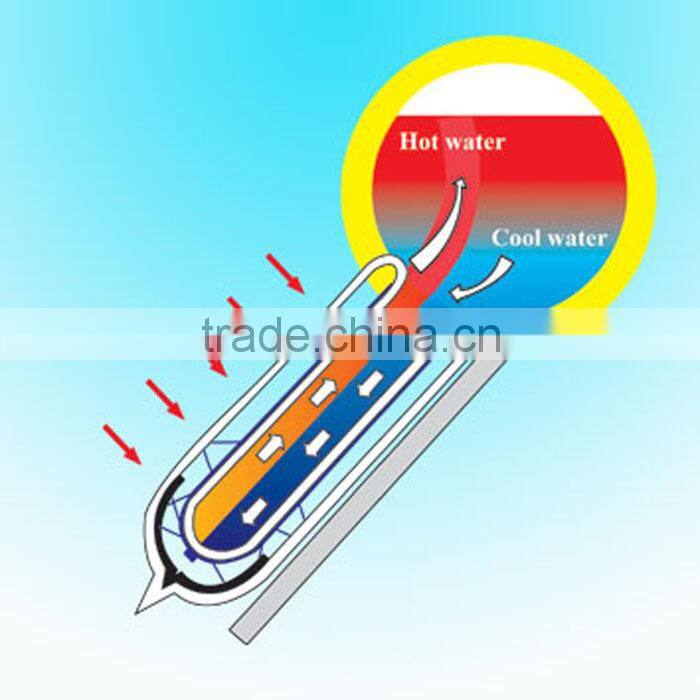

WORKING PRINCIPLE
Solar Vacuum Tubes are the absorber of the solar water heater. Collector Vacuum Tubes absorb solar energy converting it into heat energy for use in water heating.
The hot water rise to water tank and the cool water fall to the bottom of the evacuated tube.
As the gravity theory, the hot water and cool water are continuously circulation in the collector vacuum tube and water tank.
TECHNICAL PARAMETERS & SPECIFICATIONS
Name |
Solar Vacuum Tubes |
Structure |
All-glass double-tube co-axial structure |
Glass material |
High borosilicate glass 3.3 |
External Pipe Diameter & Thickness |
Ø=47±0.7mm&=1.6mm, Ø=58±0.7mm&=1.6mm, Ø=70±0.7mm &=2.0mm, |
Internal Pipe Diameter & Thickness |
Ø=37±0.7mm &=1.6mm, Ø=47±0.7mm &=1.6mm, Ø=58±0.7mm &=1.6mm, |
Pipe Length |
800mm, 1200mm, 1500mm, 1600mm, 1800mm,1900mm, 2000mm, 2100mm. |
Coating layers |
Cu/SS-ALN (H)/SS-ALN (L)/ALN |
Coating method |
Three target magnetron sputtering plation |
Thickness |
1.6mm/2.0mm/2.2mm |
Specific absorption |
as=0.93~0.96(AM1.5) |
Emission ratio |
Σh=0.04~0.06(80°C±5°C) |
Vacuum tightness |
P≤5.0×10-3Pa |
Idle Sunning Property Parameters |
Y= 260 ~ 300m². °C/KW |
Solar Radiation for Obtaining a Preset Water Temperature |
H≤3.7 MJ/ m²(Ø47), H=2.9~3.2 MJ/ m²; H≤4.7 MJ/ m²(Ø58), H=3.7~4.2 MJ/ m². |
Average Heat Loss Coefficient |
ULT=0.4~0.6W/ (m². °C) |
Pressure-Endure Ability |
0.6Mpa |
Hail resistance |
Ø25mm/ Ø40mm |
Lifetime |
15 Years |
Color |
blue or purple golden |

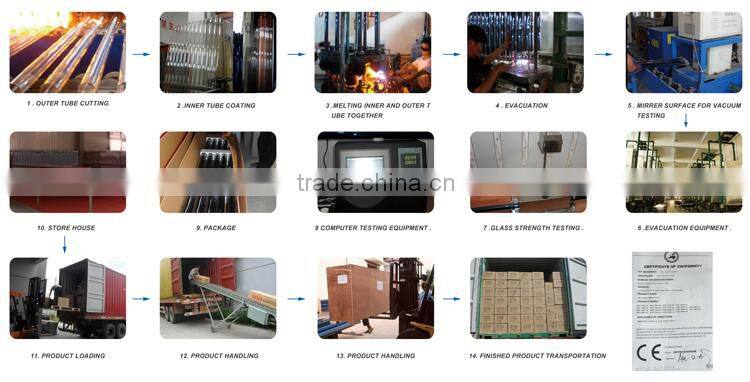

TECHNOLOGICAL PROCESS
AUTHENTICATION CERTIFICATES

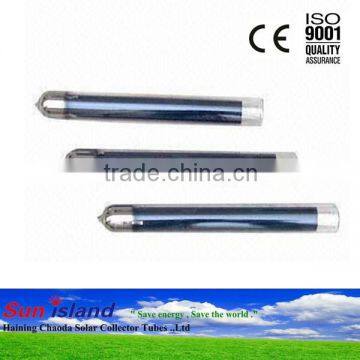

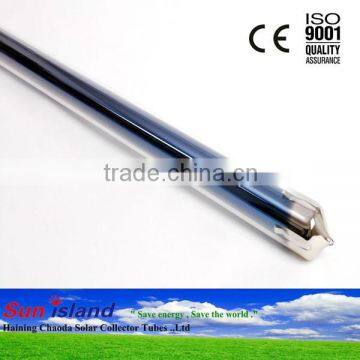

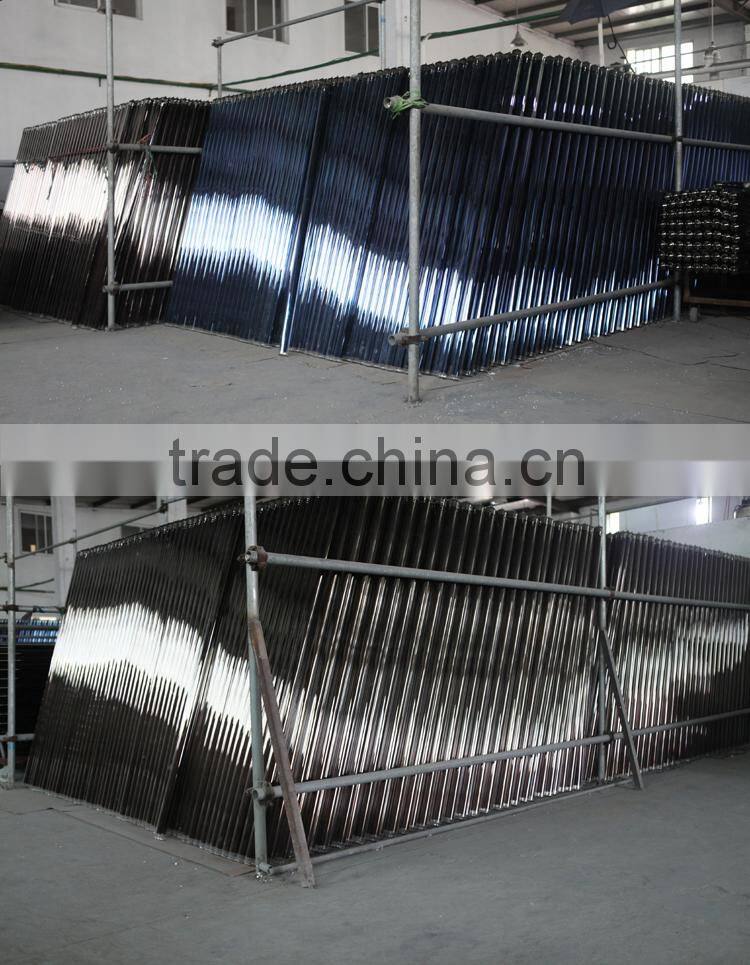

PRODUCT DISPLAY
PRINCIPLE MARKET
Popular country: Europe, USA, Canada,Mexico, India, Pakistan, Egypt, United Arab Emirates,South Africa, Brazil, and etc.
PRODUCT APPLICATIONS
1. Solar water heater.
2. Solar engineering system.
3. Solar air heater.

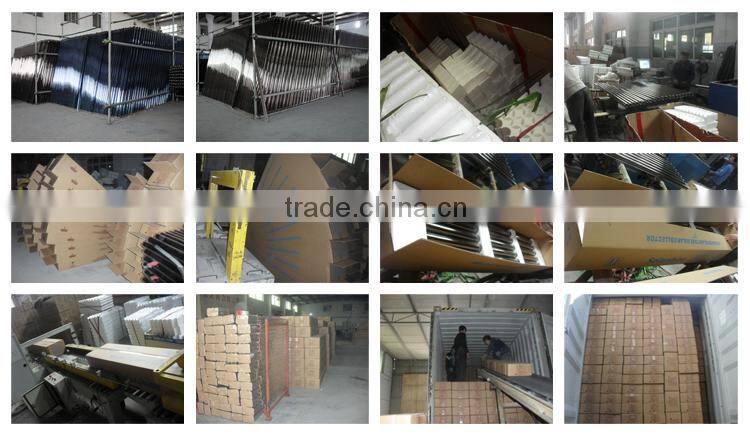

PACKING & CARTON DETAILS
Export standard carton, with safety foam in every carton.
58/1800mm tube: 10pcs/box, 15pcs/box.
47/1500mm tube: 15pcs/box, 20pcs/box, 24pcs/box.
Remarks:
Payment: For LCL/Sample order, the wooden box fee and inland transportation fee will charge for extra, we accept 100% T/T in advance;
For FCL order, we accept 30% T/T in advance, 70% balance is upon the copy of B/L.
Warranty: 15 years for the vacuum tubes; for solar glass vacuum tube, we will send 1% of all tubes as compensation for free.
Delivery time: within 3 days for sample order; within 12 days for standard container, within 15 days for OEM order;
Packing details:
If LCL/sample order, in order to avoid be broken in shipping, we will pack the tubes with wood box.
FCL Order: export standard carton, five layers hard paper carton with safety foam in every carton.
