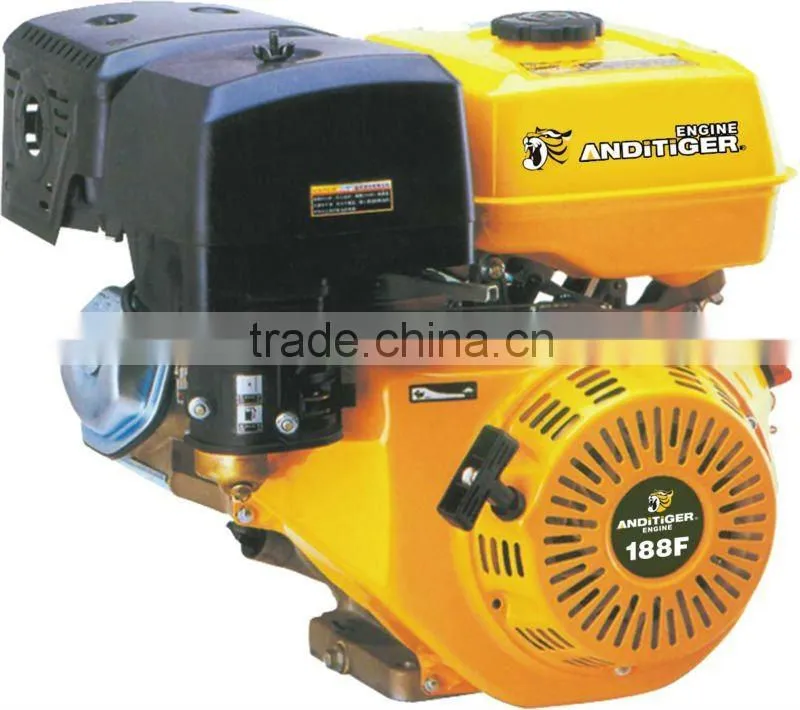

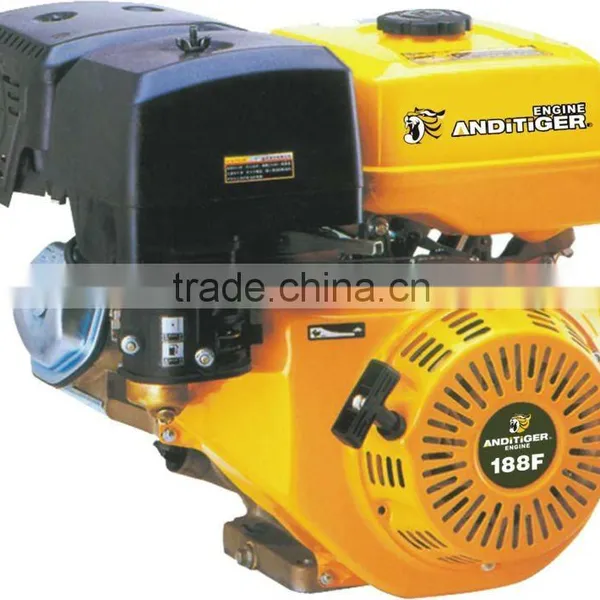

HONDA GX390 13HP Portable Gasoline Engine

Specifications

HONDA GX390 13HP Portable Gasoline Engine
HIGH QUALITY GASOLINE ENGINE



HONDA GX390 13HP Portable Gasoline Engine



 •With Strict Testing from Spare Parts to whole Machine,ANDITIGER have superior durability with high performance -price ratio,it is

number one Silent engine

 •Large fuel tank capacity ,four hours of continuous operation

 •High quality power output

 •Qualified mechanical seal device

 •Compact in structure and convenient for carry

 •Easy starting by recoil or E-start(key start with battery)

 •Special balancer shaft inside reduces the vibration to the minimum level



ENGINE (GASOLINE ENGINE)Specification



NAME	ITEM	AD168F	AD168F-1	AD170F	AD173F	AD188F	AD190F
Gasoline Engine	Engine Type	Air-cooled,4-stroke,OHV;single cylinder
	Bore Stroke(mm)	68×45	68×54	70×54	73×58	88×64	90×66
	Displacement(cc)	163	196	210	242	389	420
	Compression Ratio	8.5:1	8.5:1	8.5:1	8.2:1	8.0:1	8.0:1
	Max.Power Output(KW)	(5.5HP)4.1	(6.5HP)4.8	(7.0HP)5.1	(8HP)5.9	(13HP)9.6	(15HP)11
	Rated Power Output(KW)	(4.0HP)3.0	(5.8HP)4.3	(6.0HP)4.4	(7.2HP)5.3	(11.7HP)8.6	(13HP)9.6
	Max.Torque(N.m)	10.8	13.2	14	16.7	26.5	28
	Ignition System	Transistor magneto
	Start system	Recoil/Electric
	Engine Oil Capacity(L)	0.6	0.6	0.6	1.1	1.1	1.1
	Fuel Capacity(L)	3.6	3.6	3.6	6.5	6.5	6.5
	Min.Consumption of Fuel(g/kw.h)	360	360	360	325	325	325
	Power Take Off	Crankshaft or Camshaft
	Crankshaft Direction	Left
	Dimensions(LWH)(mm)	390×330×350	390×330×350	390×330×350	515×420×470	515×420×490	515×420×490
	Net Weight(kg)	16	16	15	25	31	31
	Air cleaner	Semi-dry;Oil bath;Dual

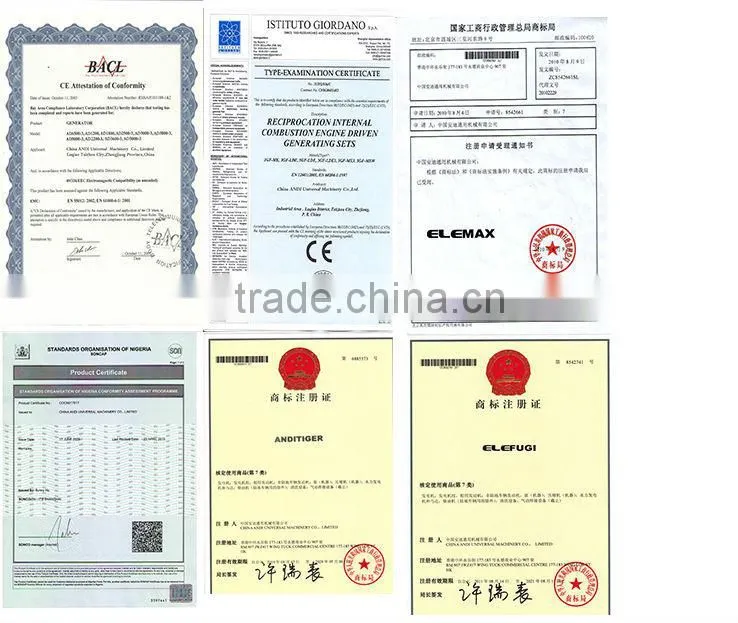

Certificate

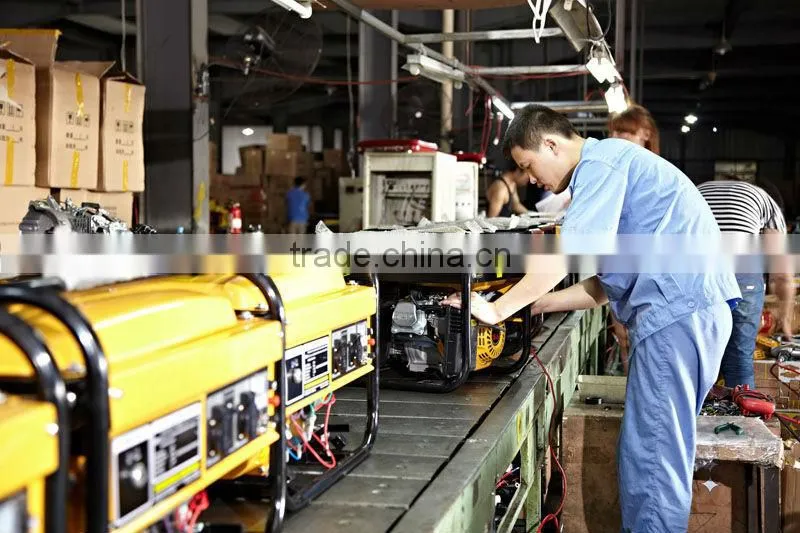

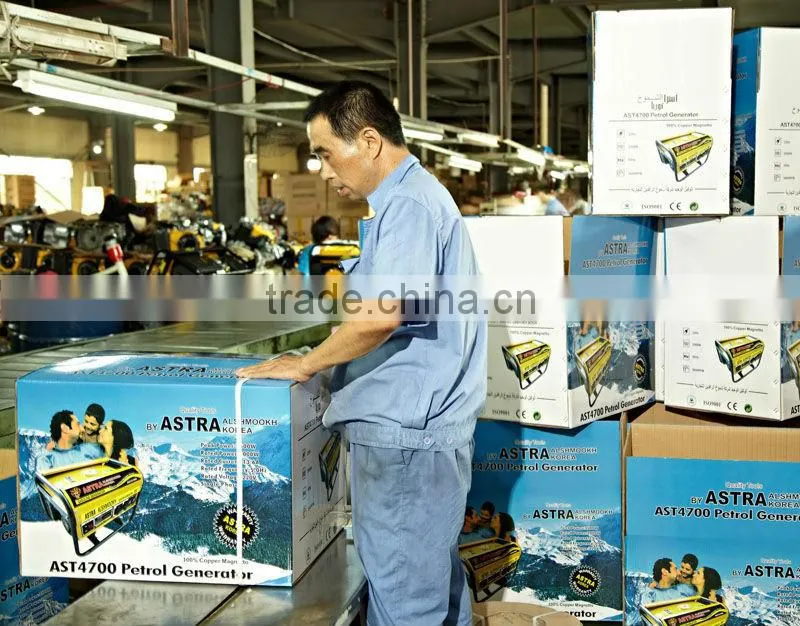

 Production Line
