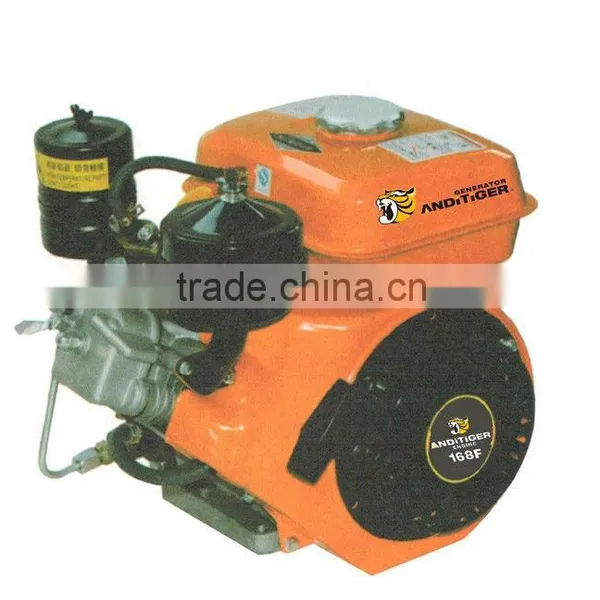

168F 5.0HP Small Diesel Engine with CE SONCAP

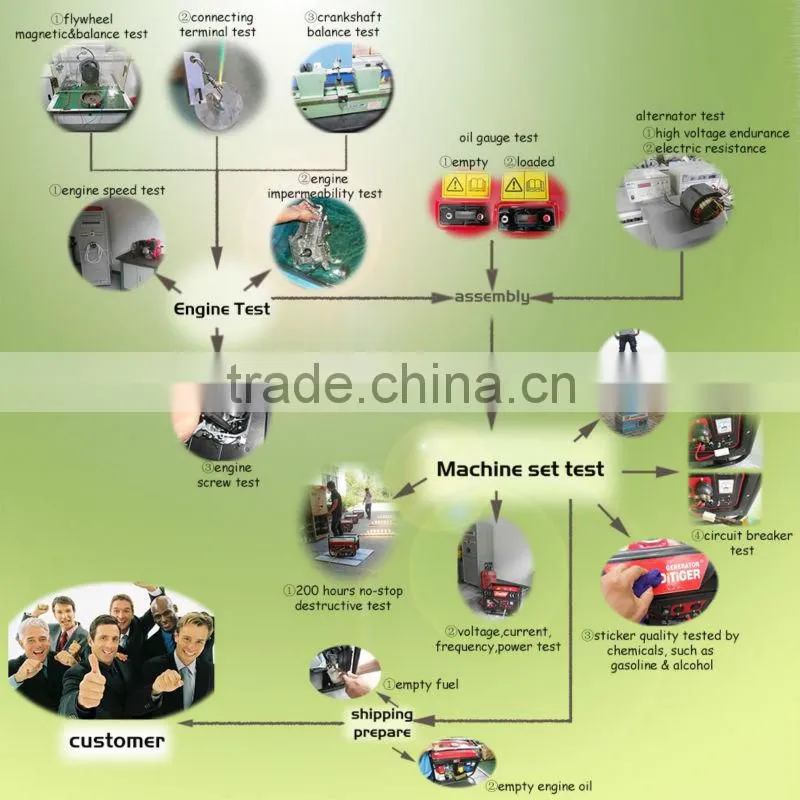

•With Strict Testing from Spare Parts to whole Machine,ANDITIGER have superior durability with high performance -price ratio,it is
number one Silent engine
•Large fuel tank capacity ,four hours of continuous operation
•High quality power output
•Qualified mechanical seal device
•Compact in structure and convenient for carry
•Easy starting by recoil or E-start(key start with battery)
•Special balancer shaft inside reduces the vibration to the minimum level
ENGINE (DIESEL ENGINE)Specification
| NAME | ITEM | AD170F | AD178F/FA | AD186F/FA | |||
| Diesel Engine | Engine Type | Air-cooled,4-stroke,OHV;single cylinder | |||||
| Combustion system | Direct injection | ||||||
| Bore Stroke(mm) | 70×55 | 78×62/78×64 | 86×70/86×72 | ||||
| Displacement(cc) | 211 | 296/305 | 406/418 | ||||
| Engine speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |
| Max. Output(HP) | 3.8 | 4.2 | 5.7 | 7 | 9 | 10 | |
| Continuous Output(HP) | 3.4 | 3.8 | 5.2 | 6 | 8.2 | 9 | |
| Power Take Off | Crankshaft or Camshaft(Camshaft PTO rpm is 1/2) | ||||||
| Start system | Recoil/Electric(optional) | ||||||
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 | ||||
| Lube oil capacity(L) | 0.75 | 1.1 | 1.65 | ||||
| Dimensions(LWH)(mm) | 420×360×460 | 440×370×480 | 480×420×530 | ||||
| Net Weight(recoil)(kg) | 27 | 33 | 48 | ||||
| Net Weight(electric)(kg) | 32 | 38 | 53 | ||||
| Fuel type | 0#,-10#,-20# | ||||||
| Lube oil type | CD Grade or SAE 10W-30,SAE 15W-40 | ||||||
| Option | Oil bath air cleaner | ||||||
About us
Our company was established in2003, we have rich experience in gasoline generator,diesel generator,solar generator,water pump, we have participated some certificate of CE,SONCAP,ISO9000,ISO900A, amd our main market is Africa,east Asia,Austria, Europe and South America
Certificate
Quality control
