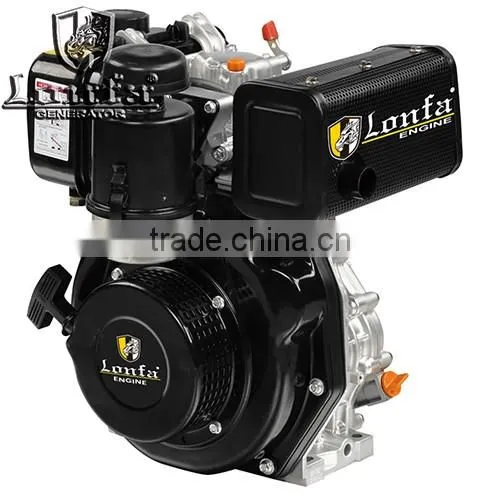

Single Cylinder Four-stroke LFD178F/ FA 7HP Diesel Engine for Generator/ Water Pump
1. With Strict Testing from Spare Parts to whole Machine, ANDITIGER have superior durability with high performance--price ratio, it is number one Silent engine.
2. Large fuel tank capacity, four hours of continuous operation.
3. High quality power output.
4. Qualified mechanical seal device.
5. Compact in structure and convenient for carry.
6. Easy starting by recoil or E-start(key with battery)
7. Special balancer shaft inside reduces the vibration to the minimum level

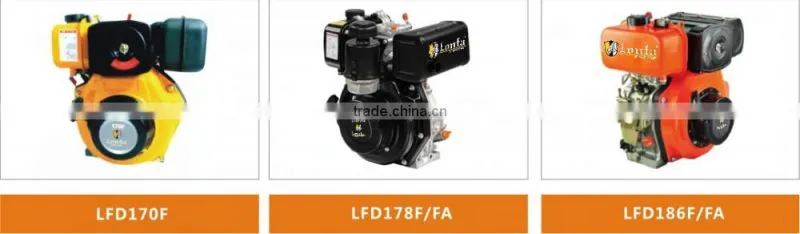

| ITEM | LF170F | LF178F/FA |
LF186F/FA | ||||
| Diesel Engine |
Engine Type | Single cylinder, 4-stroke air-cooled diesel engine | |||||
| Combustion system | Direct injection | ||||||
| Bore × stroke(mm) | 70×55 | 78×62/78×64 | 86×70/86×72 | ||||
| Displacement(cc) | 211 | 296/305 | 406/418 | ||||
| Engine speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |
| Maximum output(HP) | 3.8 | 4.2 | 5.7 | 7 | 9 | 10 | |
| Continuous output(HP) | 3.4 | 3.8 | 5.2 | 6 | 8.2 | 9 | |
| Power take off | Crankshaft or camshaft (camshaft PTO rpm is 1/2) | ||||||
| Start system | Recoil / Electric (optional) | ||||||
| Fuel tank capactiy(L) | 2.5 | 3.5 | 5.5 | ||||
| Lube oil capactiy (L) | 0.75 | 1.1 | 1.65 | ||||
| Dimension(LWH)(mm) | 420×360×460 | 440×370×480 | 480×420×530 | ||||
| Net weight(recoil)(kg) | 27 | 33 | 48 | ||||
| Net weight(electric)(kg) | 32 | 38 | 53 | ||||
| Fuel type | 0#,-10#,-20# | ||||||
| Lube oil type | CD Grade or SAE 10W-30,SAE 15W-40 | ||||||
| Option | Oil bath air cleaner | ||||||
Diesel Engine Series
TaizhouLongfa Machinery Co.,Ltd established in 2003,which is specialized in producing series of gasoline generator ,diesel generator,gasoline engine ,water pump and parts of generators .Meanwhile ,all of our machines have passed CCC,ISO9001/2000 and CE certificate.We devoted ourselves to offering both qualified products and satisfying service to our customers and strive continuously.
1.Q:What is the Quality Warranty for the products?
A:We offer 1 year quality warranty for all of our products.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Taizhou City, Zhejiang Province, China, about 2 hours train from Shanghai . All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is the material of your products?
A: Only New material can be used for our products.
Materials for Generator: 100% Pure Crankcase, 100% Pure Copper Wire
Materials for Water Pump: 100% Pure Auminium Pump body and Crankcase
4.Q:What is Minimum Order quantity?
A: MOQ 50/100 pieces for different products.
You are welcomed to consult for details.
5.Q:How does your factory do regarding quality control?
A: From the internal parts to the outside packing, we not only make standard quality test,but also think ahead for a better solution. Except company QC system, We have achieved CE & SONCAP certificate.
