Home > Industrial Equipment & Components > Engine & Part > Engine > Small Air Cooled Four Stroke 5hp Diesel Engine 178F

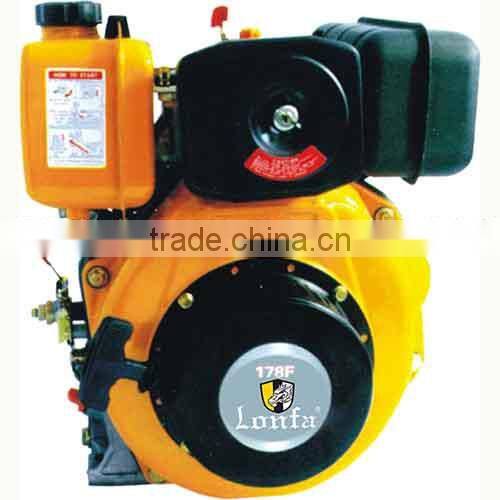

Small Air Cooled Four Stroke 5hp Diesel Engine 178F
US$ 148 - 198
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Water Pump ,Lawn Mower,etc
Fuel:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LONFA Diesel Engine 178F 6HP Diesel Enigne Single Cylinder for Diesel Water PumpUS$ 163 - 221MOQ: 50 Sets -
10 HP Diesel Engine Model 186F Diesel Engine Single Cylinder Diesel Engine for Water PumpUS$ 179 - 211MOQ: 50 Sets
-
Single Cylinder Kipor Diesel Engine 4HP Diesel Engine Z170F Diesel Engine for Water PumpUS$ 149 - 161MOQ: 50 Sets
-
Diesel Engine Water Pump Set 6HP Diesel Engine 178F Diesel Engine for SaleUS$ 173 - 211MOQ: 50 Sets
-
High Quality 1 Cylinder 4 Stroke Air Cooled Diesel Engine 186F 186FA Diesel EngineUS$ 178 - 228MOQ: 50 Sets
Condition
New
Usage
Other, Water Pump ,Lawn Mower,etc
Fuel
Diesel
Stroke
4 Stroke
Cylinder
Single Cylinder
Cold Style
Other, Air-cooled
Start
Other, Recoil /Key start with battery
Place of Origin
Zhejiang, China
Brand Name
ANDI,ANDITIGER ,ELEFUJI ,LONFA
Model Number
LF178F
Dimension(L*W*H)
440*370*480
Weight
33kg
Certification
ISO9001,SONCAP ,CE
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Small Air Cooled Four Stroke 5hp Diesel Engine 178F
1.Model AD186F/FA
2.Type: Single-cylinder, 4-stroke air-cooled diesel engine
3.Combustion system :Direct injection
4.Bore x stroke(mm) 86x70/86x72
5.Displacement(cc) 406/418
6.Engine speed(rpm) 3000 3600
7.Maximum output(hp) 9 10.0
8.Continuous output(hp) 8.2 / 9.0
9.Power take off Crankshaft or camshaft(camshaft PTO rpm is 1/2)
10.Starting system :Recoil or electric(optional)
11.Fuel tank capacity(L) :5.5
12.Lube oil capacity(L) :1.65
13.Dimensions LxWxH(mm) :480x420x530
14.Net weight(recoil)(kg) :48
15.Net weight(electric)(kg) :53
16.Fuel type :0#, -10#, -20#
17.Lube oil type :CD Grade or SAE 10W-30, SAE 15W-40
18.Option :Oil bath air cleaner
2.Type: Single-cylinder, 4-stroke air-cooled diesel engine
3.Combustion system :Direct injection
4.Bore x stroke(mm) 86x70/86x72
5.Displacement(cc) 406/418
6.Engine speed(rpm) 3000 3600
7.Maximum output(hp) 9 10.0
8.Continuous output(hp) 8.2 / 9.0
9.Power take off Crankshaft or camshaft(camshaft PTO rpm is 1/2)
10.Starting system :Recoil or electric(optional)
11.Fuel tank capacity(L) :5.5
12.Lube oil capacity(L) :1.65
13.Dimensions LxWxH(mm) :480x420x530
14.Net weight(recoil)(kg) :48
15.Net weight(electric)(kg) :53
16.Fuel type :0#, -10#, -20#
17.Lube oil type :CD Grade or SAE 10W-30, SAE 15W-40
18.Option :Oil bath air cleaner
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory with over 13years manufacturing & exporting experience.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Taizhou City, Zhejiang Province, China, about 3 hours fast train from Shanghai ;2 hours air trip from Guangzhou . All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is the material of your products?
A: Only New material can be used for our products.
Materials for Generator: 100% Pure Crankcase, 100% Pure Copper Wire
Materials for Water Pump: 100% Pure Auminium Pump body and Crankcase
4.Q:What is Minimum Order quantity?
A: MOQ 10/20/50/100 pieces for different products.Sample order also could be
offered .You are welcomed to consult for details.
5.Q:How does your factory do regarding quality control?
A: From the internal parts to the outside packing, we not only make standard quality test,but also think ahead for a better solution. Except company QC system, We have achieved CE & SONCAP certificate.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Taizhou City, Zhejiang Province, China, about 3 hours fast train from Shanghai ;2 hours air trip from Guangzhou . All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is the material of your products?
A: Only New material can be used for our products.
Materials for Generator: 100% Pure Crankcase, 100% Pure Copper Wire
Materials for Water Pump: 100% Pure Auminium Pump body and Crankcase
4.Q:What is Minimum Order quantity?
A: MOQ 10/20/50/100 pieces for different products.Sample order also could be
offered .You are welcomed to consult for details.
5.Q:How does your factory do regarding quality control?
A: From the internal parts to the outside packing, we not only make standard quality test,but also think ahead for a better solution. Except company QC system, We have achieved CE & SONCAP certificate.
