Home > Manufacturing & Processing Machinery > Agricultural Machinery > Feed Processing Machinery > SFSP 70 Feed Mill Machine for Grinding

SFSP 70 Feed Mill Machine for Grinding

Name: SFSP 70 Feed Mill Machine for Grinding
Brand: Yaoqin
SKU: 124259819
Availability: InStock

SFSP 70 Feed Mill Machine for Grinding thumbnail-1

SFSP 70 Feed Mill Machine for Grinding thumbnail-2

SFSP 70 Feed Mill Machine for Grinding photo-1

SFSP 70 Feed Mill Machine for Grinding photo-2

US$ 26,412 - 26,412 MOQ: 5 Sets

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

Yaoqin

Contact Supplier Request Quote Chat Now

Shanghai Yaoqin Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shanghai, China

Brand Name Yaoqin

Model Number SFSP-68

Type Mill Machine

Voltage According to customer requirements

Power(W) 90Kw*2

Dimension(L*W*H) 2200*3000*1800

Weight 7580 kg

Certification CE ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

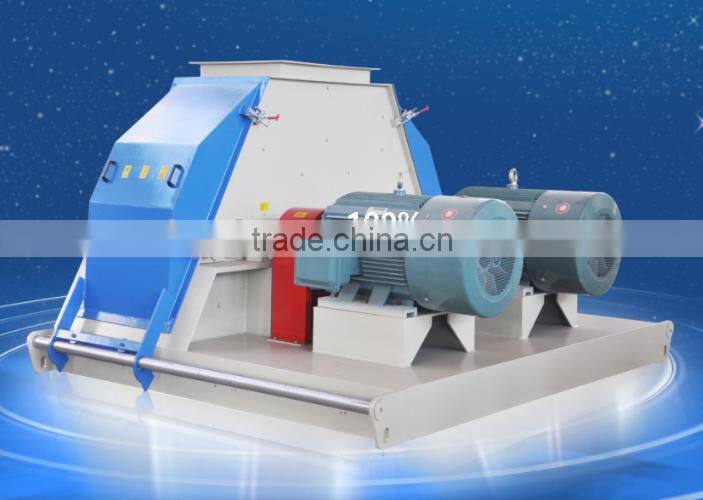

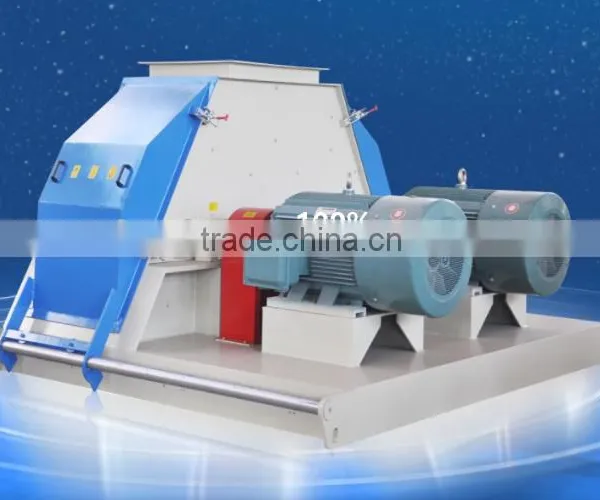

The feed mill machine photo

The range of application

1.) It is widely employed in coarse grinding, fine grinding and fiber processing for various raw materials

,such as straws ,sorghum straws ,whetat straws ,cottom straws ,weeds and wild straws ,trees and clippings of

branches ,flowers and plants ,leftover materials in furture fatories ,old clotherss ,furniture and shoes in lives

,non-metallic supplies ,wastes of food and farmer's markets and coal ect.

2.) Widely used in : man-made baord companies without formldehyde released ,middle and high density

man-made board companies,green biomass pellet companies ,furniture facotries ,organic fertilizer plants,

refuse processing plants ,thermal power plant,farmer's markets and bricks and tiles pleants etc.

3.) Major screen pore used: Φ1.0mm~ Φ50mm

4.)Particle sizes are mainly in range of 1 mesh to 80 meshes

The Feed mill Machine Main Technical Parameters

Model		SFSP120×2×60		SFSP120×2×68		SFSP120×2×78
Main Shaft RPM (r/min)		1950		1950		1950
Rotor Diameter (mm)		1200		1200		1200
Crushing Chamber Width (mm)		600		680		780
Hammer Quantity (piece)		180		180		180
Main Motor powder (Kw)		75	75	90	90	110	110
Overall dimension	L (mm)	2200		2550		2700
	W (mm)	3000		3000		3000
	H (mm)	1800		7580		1800
Weight		6800		7580		7800

The feed mill machine grinding performance:

Model	SFSP120×2×68
Raw material	Straw stalk
Moisture	<14%
Sieve Pore Diameter	Φ3	Φ4	Φ5	Φ6	Φ8	Φ10
Capacity	1.5-2.5	2-3	3-3.5	3.5-4	5-6	6-8
Model	SFSP120×2×68
Raw material	Wheat straw
Moisture	<14%
Sieve pore diameter	Φ3	Φ4	Φ5	Φ6	Φ8	Φ10
Capacity	1.5-2.5	2-3	3-3.5	3.5-4	5-6	6-8

The feed mill machine key parts advantages:

The feed mill machine performance and features:

1.)A high performance and special adjustable center is used to adjust and adapt dimension errors of hammers and destroy circulation layer of materials further improve safety and grinding efficiency of grinder.

2.)Air centrifugal force principle is used that toothed plates are set in many places inside the grinder to hit materials for

many times ,reduce the line velocity of material circuit and improve the grinding efficiency . It is east to grind soft

materials and easier to break hard materials ,especially for the artificial boards without formaldehyde released , high-

medium density artificial boards and green biomass particle whose fibers are longer.

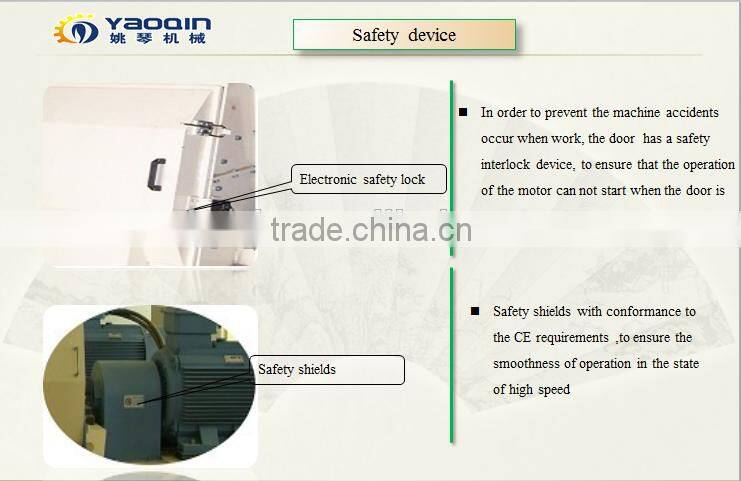

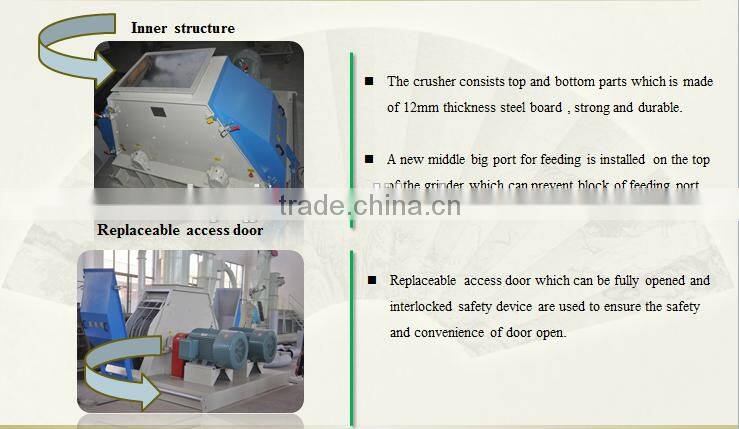

3.)Replaceable access door which can be fully opened and interlocked safety device are used to ensure the safety and

convenience of door open.

4.)Interlocked screen pressing mechanism, large equipment are equipped with mechatronical interlocked screen pressing

mechanisms which makes the time for screen change shorter, the human capital lower, the screen more convenient and

securely and not easy to leak materials.

5.)Military technologies are applied to improve the overall performance of the grinder and make it stable and wear-

resistant ,imported SKF bearings and Siemens motors are selected to prolong the service life of grinding. Specially

researched vulnerable parts such as wear-resistant hammers, screens ,toothed plates and peak grinding plates are matched
