Help CenterAlignment Scissor Lift
Related Products
-super low profile design and perfect for surface mounted,suitable for surface installation.
-the two-cylinder structure makes the minimum lifting height of 210mm become true.
-ideal for wheel alignment ,body service and other repair work.
-the jacking beam for has a maxium lifting height of 350mm and extensible platforms allowing for long vehicles.
-single platform leveling system makes leveling operation easier and ensures the synchronization.
-with high quality anti-surge valve and italian ball valve.
-the mechanical safety lock automatically engaged when rising.
-pneumatic release system decreases noise emitted during service work.
-24 safety control operation system.
-it has been proofed by dynamic test with 115%of rated capacity and static test with 150% of rated capacity.

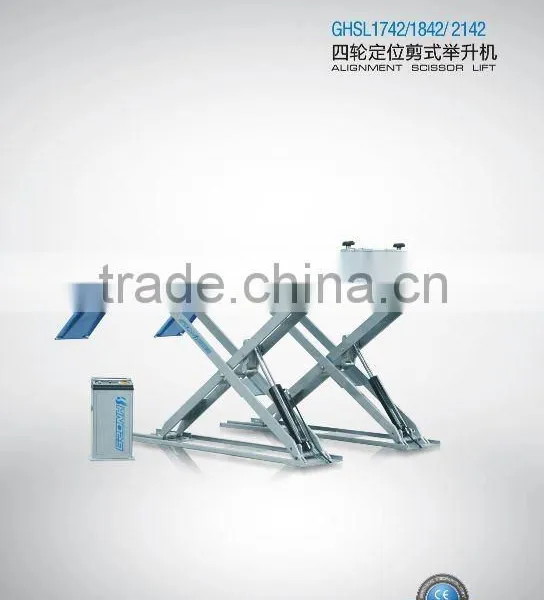

GHSL1742/1842/2142
| lifting capacity | 4200kg |
| max.lifting height | 1700mm/1850mm/2160mm |
| min.height | 210mm/280mm/280mm |
| lifting time | 55s/65s/80s |
| overall length(incl.slope) | 5300mm/5300m/5900mm |
| overall length(excl) | 4200mm/4200mm/4800mm |
| overall width | 2070mm/2100mm/3380mm |
| runway width | 530mm/600mm/600mm |
| within the runway distance | 960mm/960mm/960mm |
| motor power | 3.0kw/3.0kw/3.0kw |
| central jack lifting height | 350mm/450mm/450mm |
| power supply | 380V/415V(only 3Ph) |
| air supply | 6~8kg/cm2 |
| weight | 2350kg/370kg/2410kg2 |
