Flexible construction PVC coated galvanized metallic conduit
Introduction:
- Material: (inner layer) adopting galvanized steel band with special insulation treatment (outer layer) adopting PVC raw material (anti-UV, anti-aging) Color:Metal.
- Working temperature: -10℃ ~ +80℃
- Certification acquired: European Environmental Protection Certification,SGS: SH6134468/CHEM
- Application: Used for wire protection at railways, engines, traffic system engineering, air-conditioners, various machineries, automatic controlling equipment, power plants, chemical industries, power distribution system, communication system, vessels, mansions, factory buildings as well as the outdoors' exposed locations.
- Usage: protecting wires/cables and provide insulation, waterproofing as well as beautiful outlook of the wiring.
- How to use: Put the wires/cables through the pipes before fitting correspondent type of LNE-DPJ joints.

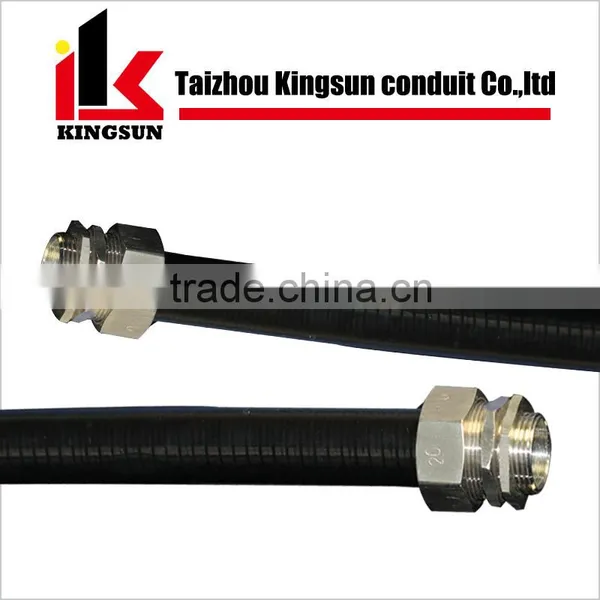

Pictures:
Main technical parameter:
| Cat# | Size |
Internal Diameter (mm) |
External Diameter (mm) |
Min Bend Radius (mm) |
Coil Packing (m) |
||
| Min. | Max. | Min. | Max. | ||||
| GFC 701 | 3/8" | 12.3 | 12.8 | 17.5 | 18.0 | 50 | 50 |
| GFC 702 | 1/2" | 15.8 | 16.3 | 20.8 | 21.3 | 65 | 50 |
| GFC 703 | 3/4" | 20.7 | 21.2 | 26.2 | 26.7 | 75 | 50 |
| GFC 704 | 1" | 26.4 | 26.8 | 32.7 | 33.4 | 100 | 50 |
| GFC 705 | 1¼" | 35.5 | 35.4 | 41.4 | 42.2 | 120 | 25 |
| GFC 706 | 1½" | 40.1 | 40.6 | 47.4 | 48.3 | 140 | 25 |
| GFC 707 | 2" | 51.3 | 51.9 | 59.4 | 60.3 | 180 | 25 |
| GFC 708 | 2½" | 63.0 | 63.6 | 72.1 | 73.0 | 240 | 10 |
| GFC 709 | 3" | 78.0 | 78.7 | 87.9 | 88.9 | 300 | 10 |
| GFC 710 | 4" | 101.6 | 102.6 | 113.2 | 114.3 | 350 | 10 |
| Cat# | Size |
Internal Diameter (mm) |
External Diameter (mm) |
Min Bend Radius (mm) |
Coil Packing (m) |
||
| Min. | Max. | Min. | Max. | ||||
| GFC 801 | 3/8" | 12.3 | 12.8 | 17.5 | 18.0 | 60 | 50 |
| GFC 802 | 1/2" | 15.8 | 16.3 | 20.8 | 21.3 | 75 | 50 |
| GFC 803 | 3/4" | 20.7 | 21.2 | 26.2 | 26.7 | 85 | 50 |
| GFC 804 | 1" | 26.4 | 26.8 | 32.7 | 33.4 | 110 | 50 |
| GFC 805 | 1¼" | 35.5 | 35.4 | 41.4 | 42.2 | 130 | 25 |
| GFC 806 | 1½" | 40.1 | 40.6 | 47.4 | 48.3 | 150 | 25 |
| GFC 807 | 2" | 51.3 | 51.9 | 59.4 | 60.3 | 190 | 25 |
| GFC 808 | 2½" | 63.0 | 63.6 | 72.1 | 73.0 | 250 | 10 |
| GFC 809 | 3" | 78.0 | 78.7 | 87.9 | 88.9 | 310 | 10 |
| GFC 810 | 4" | 101.6 | 102.6 | 113.2 | 114.3 | 360 | 10 |
Nomal Packaging: Use KINGSON brand wrapping plastic film or brand carton box in condition.
Delivery Detail: 5-15days after we receive all the payment.
Taizhou Kingsun Conduit Co,.Ltd
Established in the year 1988,Kingsun International Co.,ltd is a leading manufacture and exportor of EMT,Flexible conduits and Accessories.Recently,it forms a complete network for sales in domestic,and established good business relationships with clients in Japan,South America and West Europe.
Our company is a professional producer of flexible pipes,flexible pipe joints,cable joints,plastic coated metal flexible pipes and metal pipe joints.Strict quality management and advanced production guarantee the quality of our products and contribute to the rapid development of our enterprise.Moreover,our enterprise has passed the evaluation of ISO9001:2000 certification and our cable joints and flexible pipes have passed ROHS environmental protection test.Our products are widely applied to such fields as electric engines,automobile cables,machinery,automatic instruments and meters and motors for tobacco equipment and installation engineering.
1. Superior Quality:
All of the materials we used are 1st Class , our PVC Coated Flexible steel conduit are all high-quality , equipment and technics are very advanced. We pay much attention to every details of the quality from production to package.
2. Competitive Prices:
We ourselves bought material for our professional subsidiary factory to apply to producing, therefore, our cost is lower than others and the prices are much more competitive.
3. Convenience For Purchasing:
Customers can find all the related fittings here,and can get all the goods you need In a shorter time.Like set screw couplingcompression connectorsstrut clampsreducing bushings and so on.
4. Good Services:
All of our sales staff are professional and dedicated,and we offer good suggestion according to the demands of different customs from different countries.The most important is that Prostar is always responsible for our products, we offer the complete after-sale service. Exports to North America, the Middle East, Asia and other countries and regions.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
