230W 7R Moving Head Beam Light Description
* 230w reflect lamp* 14 colors
* 17 gobos
* 8 facet prism with rotating and moving effect
* Beam angle 2.5°
* Mechanical + electronic dimmer
* High speed strobe 1-13/sec.
* Pan 540°, 8 or 16Bit resolution
* Pan 270°, 8 or 16Bit resolution
* Pan/tilt is driven by 3-phase motor and fast inspected and located through encoder, moving quickly and steady.
* High-powered electronic hardware application, anti-interference performance enhanced, steady and reliable
LAMP SOURCE
Lamp power: 300 W
Type: MSD Platinum 7r /OSRAM SIRIUS HRI 230W
Color temperature: 8000K
Average life: 2000/3000 h
OPTICS
Beam angle 3.8°
Fresnel lens
COLOR SYSTEM
14 color filters + white
GOBO SYSTEM
1 gobo wheel with 17 gobos
EFFECT EQUIPMENT
1 rotating 8-facet prism, 1 frost effect, dimmer and strobe function, 0-100% linear dimmer, strobe speed 1-13/sec.
CONTROL AND PROGRAMMINGControl channel model: short mode:12,standard mode:16
Protocol: Standard DMX512 protocol
Display: LCD touch display
Resolution control: Pan, tilt, gobo
DMX signal connection: 3 pin XLR input/output
BODY
Aluminum structure with die-cast plastic cover
Two handles for transportation
Pan and tilt lock for transportation and maintenance
MOVING PARAMETER
Angle: PAN=540°, TILT=270°
Max speeds: PAN=1.72 sec.(360°),TILT=1.35 sec.(270°)
Resolution:
PAN=2.11°,TILT FINE=0.008°,
TILT=1.05°,TILT FINE=0.004°
PAN and TILT adopt electro-optic reset system, automatically reset the pan and tilt movement caused by accident
ELECTRIC CONTROL TECHNOLOGY
Fixture reset is controlled through menu or light console
On/Off lamp through remotely control
Automatically energy saving model
Electronic sensor detection
DMX channel level monitoring
Fixture information query
Motor zero 16bit regulation and control
POWER SUPPLY
AC90-240V 50/60Hz
Switching power supply
Electronic ballast
INPUT POWER
295W,PFC≥0.96
SAFETY PROTECTION
Overcurrent , overvoltage and overheating protection
WORKING POSITION
Any safety position to install
STANDARD CERTIFICATE
In conformity with GB7000.1-2007,GB7000.217-2008 and GB17625.1-2003 directives.
Size:452×445×540mm
Net Weight:19.5kg

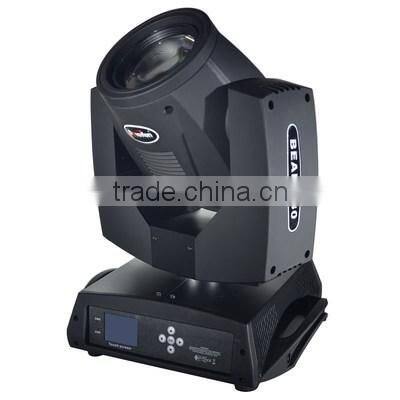

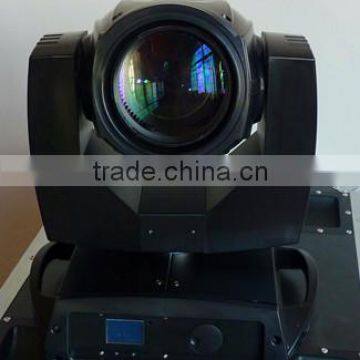

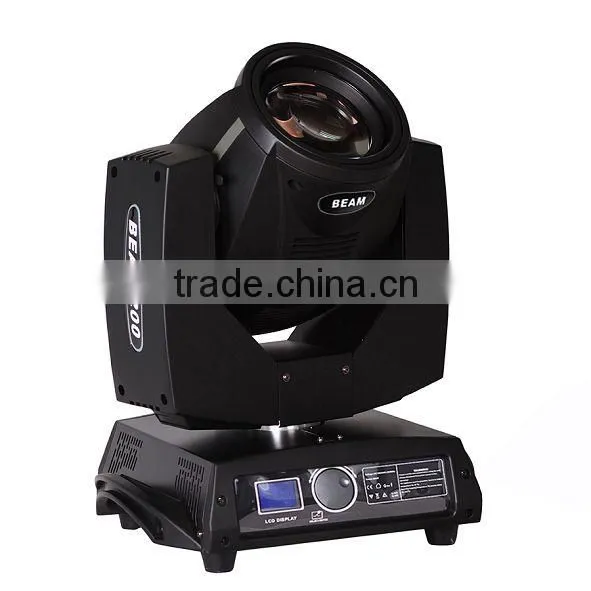

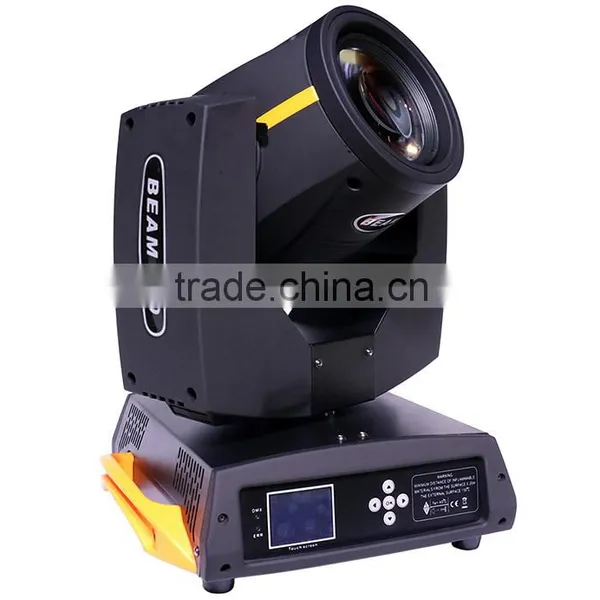

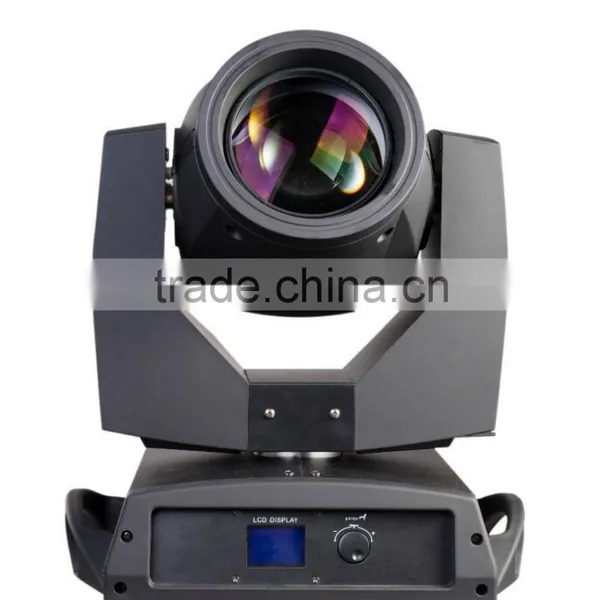

230w 7r moving head light

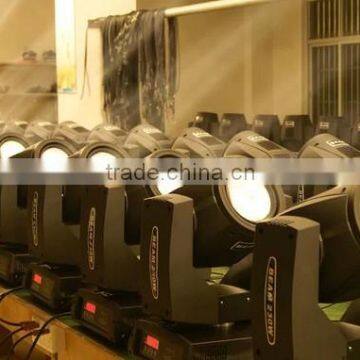

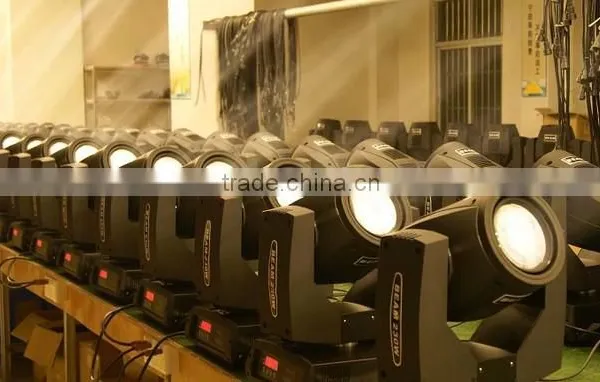

Our factory
External package
Our service
1.Your inquiry related to our products or price will be replied in 24hrs
2.OEM&ODM,any your customized lightings we can help you to design and put into product.
3.Distributoership are offered for your unique design and some our current models
4.Protection of your sales area,ideas of design and all your private information
5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win
6. Export countries : Peru, Mexico, Colombia, Turkey, US, UK, etc.
7.Payment terms:(1)T/T :Firstly you need to pay 30% commission,then when we are readt to effect delivery, at this moment, you need to70% the rest of payment.
(2)Western Union:we will provide payee's detailed information for you!
If interested , please contact me:
Whatsapp:+8613226796065
Wechat:shine-422873487
Thank you very much!! Friends, have a good day!
