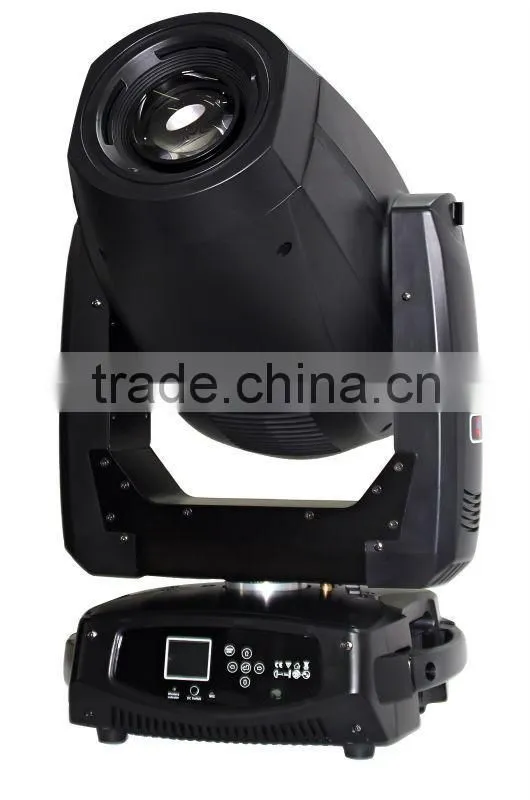

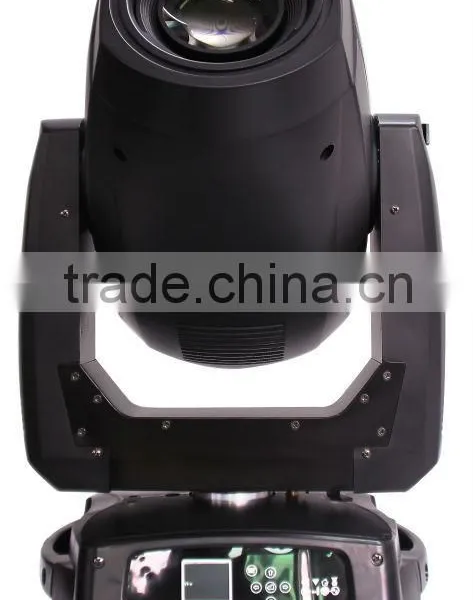

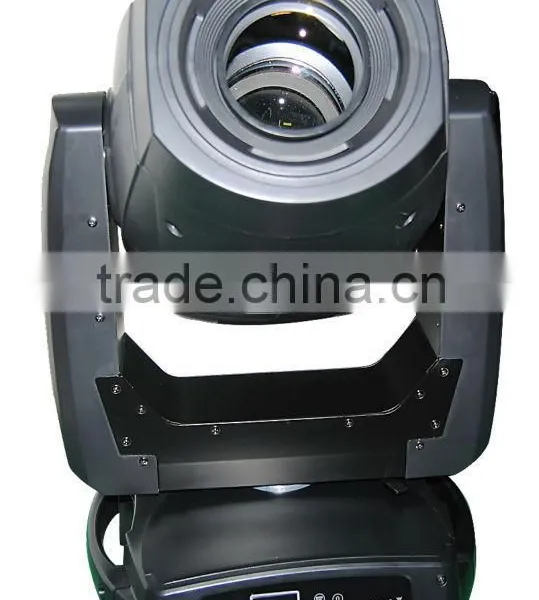

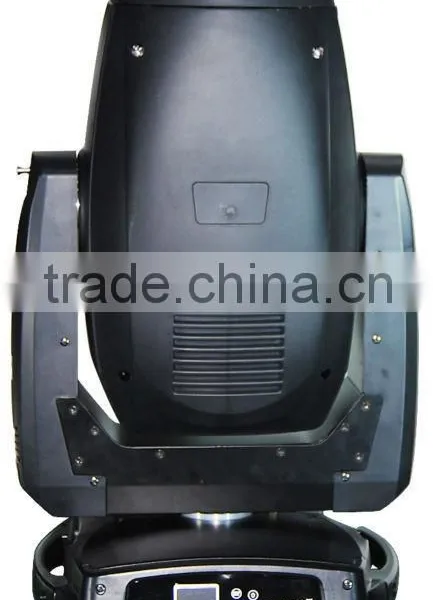

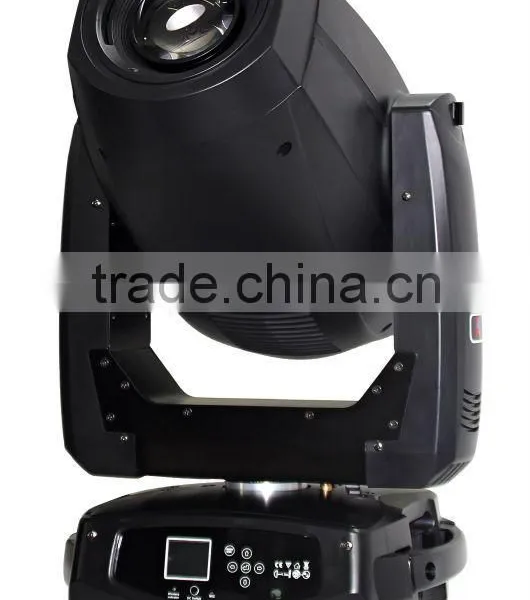

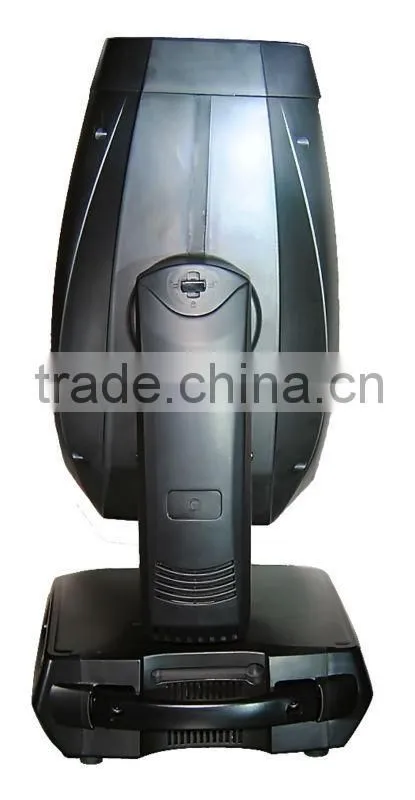

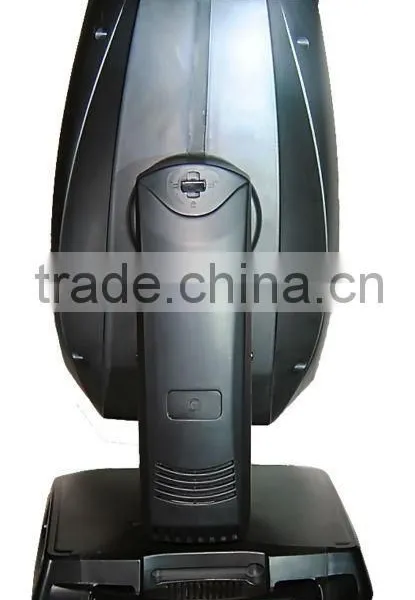

Professional Stage Disco Light Sharpy 17R 350W Moving Head Beam Light

Professional Stage Disco Light Sharpy 17R 350W Moving Head Beam Light thumbnail-1
Professional Stage Disco Light Sharpy 17R 350W Moving Head Beam Light thumbnail-2
Professional Stage Disco Light Sharpy 17R 350W Moving Head Beam Light thumbnail-3
Professional Stage Disco Light Sharpy 17R 350W Moving Head Beam Light thumbnail-4
Professional Stage Disco Light Sharpy 17R 350W Moving Head Beam Light thumbnail-5
Professional Stage Disco Light Sharpy 17R 350W Moving Head Beam Light thumbnail-6
Professional Stage Disco Light Sharpy 17R 350W Moving Head Beam Light photo-1
Professional Stage Disco Light Sharpy 17R 350W Moving Head Beam Light photo-2
Professional Stage Disco Light Sharpy 17R 350W Moving Head Beam Light photo-3
Professional Stage Disco Light Sharpy 17R 350W Moving Head Beam Light photo-4
Professional Stage Disco Light Sharpy 17R 350W Moving Head Beam Light photo-5
Professional Stage Disco Light Sharpy 17R 350W Moving Head Beam Light photo-6
US$ 689 - 869 MOQ: 1 Piece
Key Specifications
Get Latest Price
Light Source:
Induction Lamps
Input Voltage(V):
AC100-240V/50-60Hz
Lamp Power(W):
350
Contact Supplier Request Quote Chat Now
Guangzhou Cheng Wen Photoelectric Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangdong/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Light Source Induction Lamps
Input Voltage(V) AC100-240V/50-60Hz
Lamp Power(W) 350
Lamp Luminous Flux(lm) 150000
Lamp Luminous Efficiency(lm/w) 90
Color Temperature(CCT) Warm White
Working Temperature(℃) -25, 40
Working Lifetime(Hour) 2000
Certification CE
Emitting Color Changeable
Lamp Body Material Aluminum Alloy
Base Type E17
Place of Origin Guangdong, China
Brand Name ChengWen
Model Number cw-350

Professional Stage Disco Light Sharpy 17R350W Moving Head Beam Light



Product Description

Specification of Mechanical dimmer 350w sharpy 17r beam moving head ligh

1, Spot, Wash & Beam 3 functions in one light
2, 23CH ,CMY, 3 prism, Touch display
3, YODN 17R bulb

TECHNICAL SPECIFICATIONS



Power supply

Power Requirements AC 100V-240V~, / 50Hz/60Hz

Fuse Protection 7A/250V, GMA (5x20mm fine-wire fuse)

Power Consumption 520 Watts

Lamp

Type Platinum 17R

Lamp Wattage 350W

Life time 2200 Hrs

Color temperature 8000K

CRI 75

Optical system

Lenses hardened and tempered, anti-reflex coated

Colors

6 dichroic filter, UV Filter, CTO Filter, plus white, half-color compatible

Gobos

Gobo-wheel 1: 8 interchangeable rotating gobos plus "open"

Gobo-wheel 2: 14 fixed gobos plus "open"

Prism

Rotating 3-facet prism, rotating and variable in speed

Shutter / Strobe / Dimmer

Strobe effect with variable speed

Continuously mechanical dimmer 0 - 100%

Focus

Motor driven focus from far to near

DMX Channels

23 (16bit – default) or 21 (8bit – user selectable) or 34 (16bit – user selectable)

Drive

Standard DMX-512, 3 pole XLR; [+] = Pin 3 [-] = Pin 2 [Ground] = Pin 1 or 5

pole XLR; n/a = Pin 5, n/a = Pin 4, [+] = Pin 3, [-] = Pin 2, [Ground] = Pin 1

Starting DMX [001].

Pan / Tilt

Pan - movement 630° in max. 16 bit resolution

Tilt - movement 270° in max. 16 bit resolution

Weights and Measures

Width of the base 13” / 33.5cm (Including Handles)

Length of the base 14” / 35.9cm (Without Handles)

Width of Head 16.9” / 43.0cm

Height (head vertical) 19.4” /49.4cm

Weight (net) 23 Kgs / 50.6 Lbs

Operating Noise Levels (Base level 46.8dB)

Mode: Auto 1m = 55.9 dB

Mode: High 1m = 56.2 dB

Mode: Auto 1m = 51.6 db (Lamp off)

Ambient Operating Temperature42 43

PLATINUM BEAM 17R

-25°C ~ 45°C

All specifications are subject to change at any time without notice.

Professional Stage Disco Light Sharpy 17R 350W Moving Head Beam LightProfessional Stage Disco Light Sharpy 17R 350W Moving Head Beam LightProfessional Stage Disco Light Sharpy 17R 350W Moving Head Beam LightProfessional Stage Disco Light Sharpy 17R 350W Moving Head Beam Light
Professional Stage Disco Light Sharpy 17R 350W Moving Head Beam LightProfessional Stage Disco Light Sharpy 17R 350W Moving Head Beam Light
