Specifications
1.On-line double conversion UPS2.IGBT and SPWM technologies
3.Wide input voltage range
4.Built-in isolation transformer
Product Description:
1.True on-line double conversion UPS.
2.Extremely wide input voltage range and ultra-strong capability against overload.
3.Low frequency online UPS with IGBT and SPWM technologies applied.
4.Built-in isolation transformer.
5.User-friendly digitized LCD with system information available at a glance.
6.Strong self-diagnosis and protective functions.
7.Smart RS232 port for computer monitoring.
8.Can cold-start directly and smart operation for users.

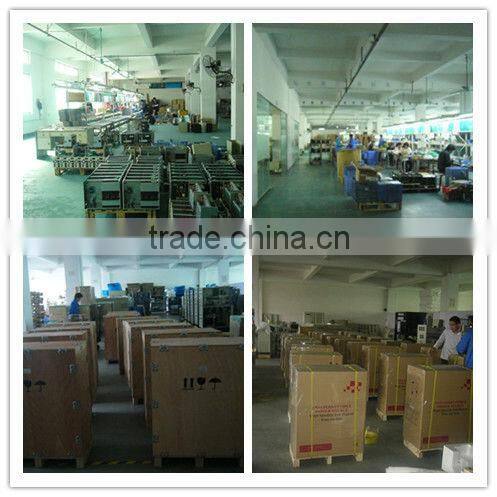

Our factory production line, warehouse:
Online low frequency UPS technical data specs:
Three phase in/single phase out (10KVA-50KVA)
ModelLP-B**** | 1034L | 1534L | 2034L | 3034L | 4034L | 5034L | |
Capacity | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW | 50KVA/40KW | |
Input | 3PH 4W+G 380V±20% 50Hz/60Hz±5% | ||||||
Efficiency | >90% | >92% | >93% | ||||
Battery voltage | 384VDC | ||||||
surrounding | Audible noise | <60dB | <65dB | ||||
Size W×D×H( mm) | 265×570×730 | 396×640×1100 | 396×922×1100 | ||||
Weight (kg) | 85/110 | 125/155 | 155/185 | 215/245 | 320/350 | 380/410 | |
Output | Waveform | Genuine sine wave THD<3% |
Voltage stability | 220V±1.5% | |
Frequency | come after input (commercial mode) 50Hz/60Hz±0.5Hz(battery mode) | |
Temporary reaction | 100%load change±4% | |
Crest ratio | 3:1 | |
Power factor | 0.8lagging | |
Protection | overload protection | |
battery voltage-lack protection,overheat protection | ||
Display | LED | USP normal;inverter;bypass;fault; |
LCD | Input and output voltage/frequency,battery voltage,load. | |
Audible alarm | power-off:keeping sound every 4 seconds; | |
Voltage-lack:keeping sound every 4 seconds; failure or battery use up:continuously keeping | ||
Port | Communication Port | RS232/RS485 |
Surrounding | Temperature Humidity | 0-40°C,90% |
