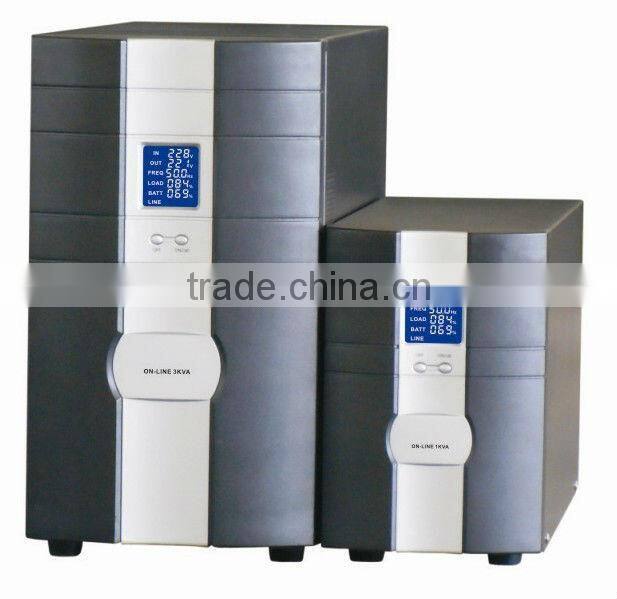

Online High Frequency UPS 1-3K

Name: Online High Frequency UPS 1-3K
Brand: Greentechy
SKU: 124244201
Availability: InStock

Foshan Greentechy Energy Technology Co., Ltd.

US$ 100 - 280 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Greentechy

Model Number:

HP-C1K-3K

Payment & Shipping

Payment Methods:

Port of Shipment:

Foshan guangzhou shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Greentechy

Model Number HP-C1K-3K

Phase Single Phase

Protection Other, Short Circuit, Overload

Weight 7-34.5

Output Voltage 220/230VAC

Type Other, On-line, High frequency online indoor UPS

Application Other, All kinds office equipment,ATM,network

Specifications

1. Genuine on-line design
2. High input power factor
3. DC start & Auto restart function
4. compatible with the generator

Features:

Genuine on-line design.
Advanced IGBT power components,enhancing the ocerall reliability and inverting efficiency of the machine.
Wide input voltqge and frequency range,compatible with the generator.
High input power factor.
Zero transfer time.
Smart local and distant monitoring capability with RS232 port,and compatible with SNMP.
Controlled by fully digitized microprocessor.
Completely purified sine wave power output.Aborative function design,convenient for the users.
Self diagnosis and protectin.
On-battery power-on funation.Auto start on when the mains comeback.
Site wiring fault warning.
LCD display with information available at a glance.

Model: HP-			E1022M/L,JE1022L	E2022M/L,JE2022L	E3022M/L,JE3022L
			C1022M/L,JC1022L	C2022M/L,JC2022L	C3022M/L,JC3022L
Max.capacity (cosΦ=0.7)			1000VA	2000VA	3000VA
Input	Input wiring		Single-phase line two+Ground line
	Voltage range		118-300 LOAD<50%, 140-300VAC 50%≤LOAD<70%% 160-300VAC LOAD≥70%
	Frequency range		46--54 Hz
	Power factor		>0.95
Output	Voltage		220VAC±2%
	Frequency		Input synchronized the supply frequency(line mode), 50 Hz±0.2%(Battery mode)
	Power factor		0.7
	Current crest ratio		3:1
	Wavefrom		Sine wave
Overload capacity			110%-150% load, change to bypass after 30 seconds, 150% load holds 300ms
Efficiency			>90%	>91%	>91%
Voltage of the battery			36VDC	96VDC
Transfer time			Zero interruption
Automatic Bypass			Integrated
Indicator			Indicates load/battery capacity,UPS running states etc
Audible alarm		Battery discharge	Sounding every 4 seconds when mains fails
			Sounding every 1 second when battery exbausts
		Abnormal	Beeping continuously
Communication interface			RS232+SNMP(option)
Operating environment		Temperature	0--40
		Humidity	20%-90%,No condensate
External/Shipping Size (W×D×H)			482×450×88/550×535×215
External/Shipping Size (W×D×H)			145×400×220/ 230×485×315	192×460×340/ 330×590×470
Net/Gross weight(kg)			9/11	11.5/13.5	12.5/14.5
Net/Gross weight(kg)			12.1/13.7	31/33	31.5/33.5
Net/Gross weight(kg)			5.7/7.7	14.8/16.8	15/17
Option			(SNMP Adapter),(Battery cubicle)
