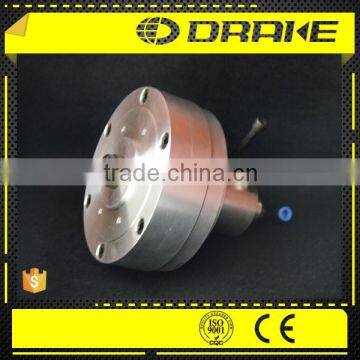

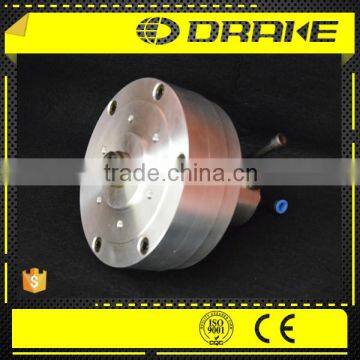

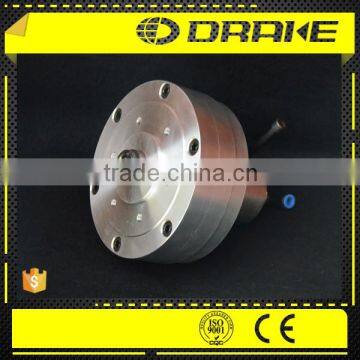

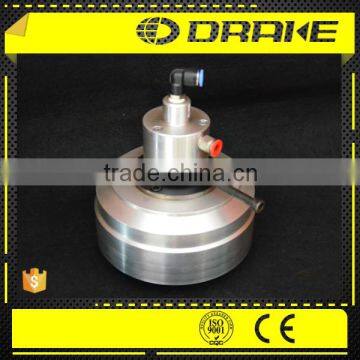

SQ200 Hydraulic High Speed Rotary Cylinder with Single Piston for CNC Machine
single piston rotary cylindesingle piston rotary cylindesingle piston rotary cylindesingle piston rotary cylinde
Technical features:
1. Patented product, a rear pulling chuck and collet power source.
2. The connection method of the rotary cylinder is short cylinder form, without changes
in the machine tool structure, and a flange matching with the connecting convex (D1)
can be installed at the tail of the machine tool.
3. The product is made of aluminum alloy, with light weight, high speed, fast operation
and no leakage; it is an ideal power source of rear pulling power chuck and collet,
and can also be used as the power source of other devices.
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Size Parameters
| Model/Spec | D | D1 | D2 | D3 | D4 | D5 | D6 | B |
G max. |
G min. |
h | L | L1 | z-d |
| SQ110 | 110 | 65 | 90 | M16 | 30 | 140 | 60 | 30 | 25 | 13 | 4 | 127 | 68 | 6-M8 |
| SQ130 | 130 | 65 | 90 | M16 | 30 | 160 | 60 | 30 | 32 | 17 | 4 | 130 | 71 | 6-M8 |
| SQ160 | 160 | 80 | 100 | M20 | 32 | 196 | 60 | 30 | 38 | 18 | 5 | 138 | 80 | 6-M10 |
| SQ200 | 200 | 100 | 130 | M24 | 32 | 236 | 60 | 35 | 38 | 18 | 5 | 138 | 80 | 6-M12 |
Performance Parameters
| Model/Spec | Piston stroke |
Allowable pressure (Mpa) |
Limit speed (r/min) |
Max. force (KN) |
Net weight (kg) |
| SQ110 | 12 | 0.4-0.8 | 4500 | 7 | 4 |
| SQ130 | 15 | 0.4-0.8 | 4000 | 11.5 | 5 |
| SQ160 | 20 | 0.4-0.8 | 3500 | 15.4 | 7.6 |
| SQ200 | 20 | 0.4-0.8 | 3000 | 24.5 | 13.8 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
1. Air hose, manual-switch, Hex. socket head bolt, axle sleeve.
2. Oil-water separator, manual solenoid valve.
