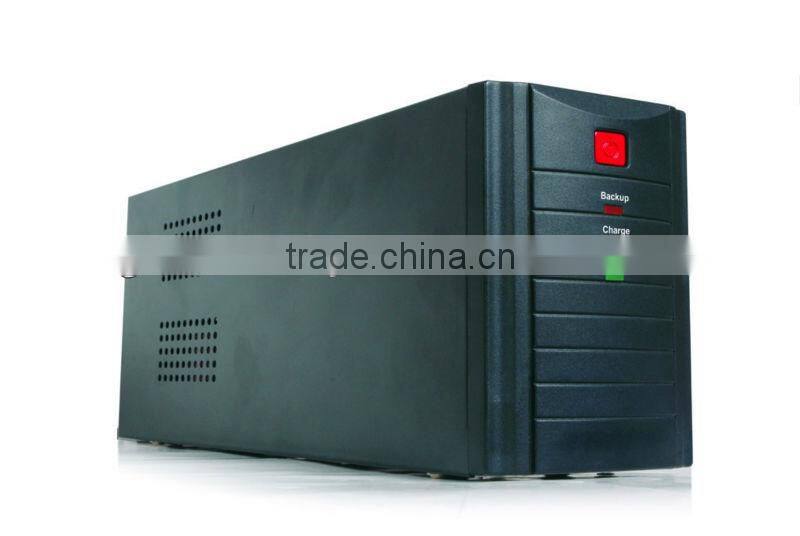

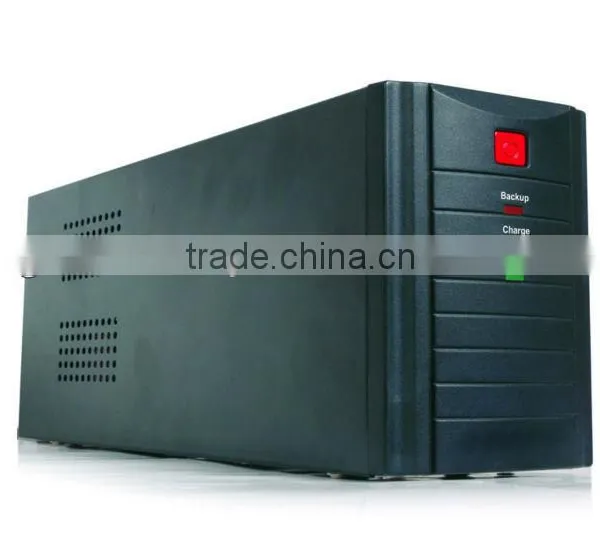

Offline UPS(PWM Output) Metal Case 600VA/360W

Name: Offline UPS(PWM Output) Metal Case 600VA/360W
Brand: Greentechy
SKU: 124243775
Availability: InStock

US$ 21.8 - 22 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Greentechy

Model Number:

V600

Foshan Greentechy Energy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Foshan

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Greentechy

Model Number V600

Phase Single Phase

Protection Short Circuit

Weight 4.9kgs

Output Voltage 110V/120V/220V/230V

Type Other, Offline UPS

Application Computer

Specifications

1. Auto re-starts
2. Automatic charging
3. CPU control,AVR function
3. Overload,short-circuit protection

Model #	V-600	V-650	V-800	VX-1000	V-1000	V-1250	V-1500
Specifications	600VA/360W (3 steps of AVR, CPU controlled)	650VA/390W (3 steps of AVR, CPU controlled)	800VA/480W (3 steps of AVR, CPU controlled)	1000VA/600W (3 steps of AVR, CPU controlled)		1200VA/720W (3 steps of AVR, CPU controlled)	1500VA/900W (3 steps of AVR, CPU controlled)
Display	LED or LCD, depends on user's choice.
Input voltage range	110V: 75~150Vac 220V:145~290Vac
Output voltage range	110V: 110~132Vac 220V:200~255Vac
Output frequency	110V: 60±0.5Hz (DC Mode) 220V:50±0.5Hz (DC Mode)
Wave form	PWM (DC Mode)
Transfer time	10ms and less than 10ms
QTY & capacity of battery	1 pc*12V7Ah	1 pc*12V7.5Ah	1 pc*12V9Ah	1 pc*12V9Ah	2 pcs*12V7Ah	2 pcs*12V7.5Ah	2 pcs*12V9Ah
Charging period	10~16 hours
Backup time	3~20 minutes(1PC+15 inch CRT)			20~40 minutes(1PC+15 inch CRT)	30~60 minutes(1PC+15 inch CRT)		40~80 minutes(1PC+15 inch CRT)
RJ45/11 & USB	Optional
Auto re-starts when AC recovers	Yes
Silence setup	Yes
Automatic charging (offline charging)	Yes
Battery low voltage protection	Yes
Overload & Short circuit protection	Yes
Unit dimension (mm)	30585140		324100153		350120188
Color box dimension (mm)	365130210		365165217		405195288
Master box dimension (mm)	380278446		380348461		420410307
Pcs in one master carton	4				2
Gross weight (1pc, kg)	4.9	5	6.2	9	10	10.8	12.6
Net weight (1pc, kg)	4.6	4.6	5.8	8.6	9.6	10.2	12
Loading capacity (20' ctrn)	2300 pcs		1536 pcs		910 pcs
Loading capacity (40' GP)	4800 pcs		3960 pcs		2160 pcs
Warranty spare parts:	1% finished units or other spares equal to this value
