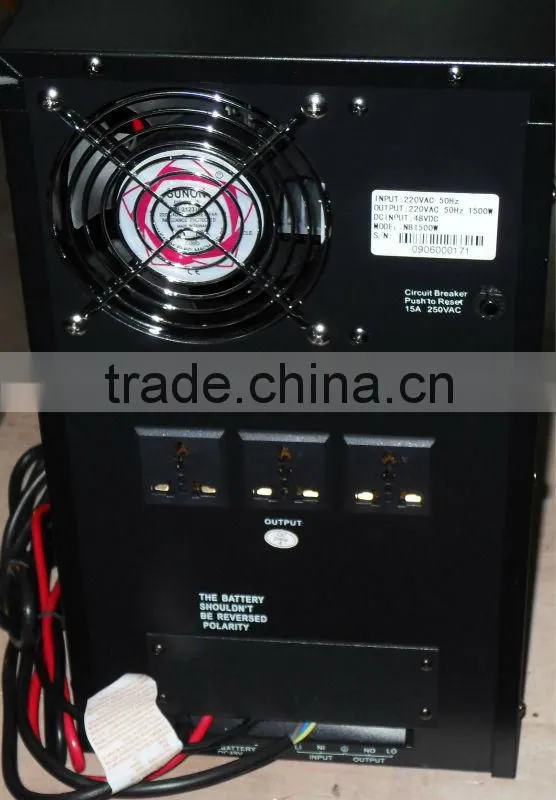

24V 1KW pure sine wave solar inverter with AC input

Specifications

1. Pure sine wave,CPU control.
2. Big charging current.
3. Power frequency design.
4.Optional with AC electricity function



300W-1KW

power frequency pure sine wave 12V/24VDC

off-grid solar power inverter



Welcome to contact us(sales01 at ), mobile: + 86 15014635964

Skype: greentechy-sales01, to get best offer and new catalog of solar inverter!



Features:

1. Advanced performance due to the CPU control.

2. Adopt low-frequency transformer,pure sine wave AC output,strong capacity of different load.

3. Advanced Mosfet with high reliability.

4. High-efficiency of invertion,energy saving and environmental protection.

5. Easy to check the current working status by LED/LCD display.

6. Full-oriented protection with high reliability.

7. Can be used at wide range of temperatures and high altitude.

8. DC-AC indoor inverter.





The product is specially designed for remote area where is lack of electricity,it is digital design,pure sine wave output,low frequency design,independent modularization which enhances the reliability and expandability of the product.It is mainly applied to the solar power system,wind power system,wind and solar hybrid generating system and provide AC power supply for the remote area,satellite groud reception,observatory,frontier defence station,communication station,electroless island and so on.



Type		GTS-C301012	GTS-C501024	GTS-C102024
Rated Power(W)		300	500	1000
Input	Rated Voltage (VDC)	12	24	24
	Protection Voltage (VDC)	10.8	21.6	21.6
Output	Waveform	Sine Wave
	Distortion	≤5%(Resistance Load)
	Voltage Range	220V±3%
	Frequency Range	50Hz/60Hz±0.5Hz
	Peek Power Factor	3:1
Inverting Efficiency		≥85%
Non-load Consumption		≤3.5%
Protection		Soft Start,Over-load, Short Circuit,Under-Voltage,Over-voltage Protection
Environment	Insulating Strength	1500VAC
	Operating Humidity	0-90%,
Dimensions(W×D×H)		370×130×190
packaging Sizes(W×D×H)		478×462×315(2 Pieces)
Net Weight		6	8	12
Gross Weight		14	18	26
