230W DJ Beam Stage Light Description
* 230w reflect lamp* 14 colors
* 17 gobos
* 8 facet prism with rotating and moving effect
* Beam angle 2.5°
* Mechanical + electronic dimmer
* High speed strobe 1-13/sec.
* Pan 540°, 8 or 16Bit resolution
* Pan 270°, 8 or 16Bit resolution
* Pan/tilt is driven by 3-phase motor and fast inspected and located through encoder, moving quickly and steady.
* High-powered electronic hardware application, anti-interference performance enhanced, steady and reliable
LAMP SOURCE
Lamp power: 230 W
Type: MSD Platinum 7r /OSRAM SIRIUS HRI 230W
Color temperature: 8000/8800K
Luminous flux: 7950lm/9200lm
Average life: 2000/3000 h
OPTICS
Beam angle 3.8°
Fresnel lens
COLOR SYSTEM
14 color filters + white
GOBO SYSTEM
1 gobo wheel with 17 gobos
EFFECT EQUIPMENT
1 rotating 8-facet prism, 1 frost effect, dimmer and strobe function, 0-100% linear dimmer, strobe speed 1-13/sec.
CONTROL AND PROGRAMMINGControl channel model: short mode:12,standard mode:16
Protocol: Standard DMX512 protocol
Display: LCD touch display
Resolution control: Pan, tilt, gobo
DMX signal connection: 3 pin XLR input/output
BODY
Aluminum structure with die-cast plastic cover
Two handles for transportation
Pan and tilt lock for transportation and maintenance
MOVING PARAMETER
Angle: PAN=540°, TILT=270°
Max speeds: PAN=1.72 sec.(360°),TILT=1.35 sec.(270°)
Resolution:
PAN=2.11°,TILT FINE=0.008°,
TILT=1.05°,TILT FINE=0.004°
PAN and TILT adopt electro-optic reset system, automatically reset the pan and tilt movement caused by accident
ELECTRIC CONTROL TECHNOLOGY
Fixture reset is controlled through menu or light console
On/Off lamp through remotely control
Automatically energy saving model
Electronic sensor detection
DMX channel level monitoring
Fixture information query
Motor zero 16bit regulation and control
POWER SUPPLY
AC90-240V 50/60Hz
Switching power supply
Electronic ballast
INPUT POWER
295W,PFC≥0.96
SAFETY PROTECTION
Overcurrent , overvoltage and overheating protection
WORKING POSITION
Any safety position to install
STANDARD CERTIFICATE
In conformity with GB7000.1-2007,GB7000.217-2008 and GB17625.1-2003 directives.
FIXTURE DIMENSION
405×330×475mm.
WEIGHT
17.5kg

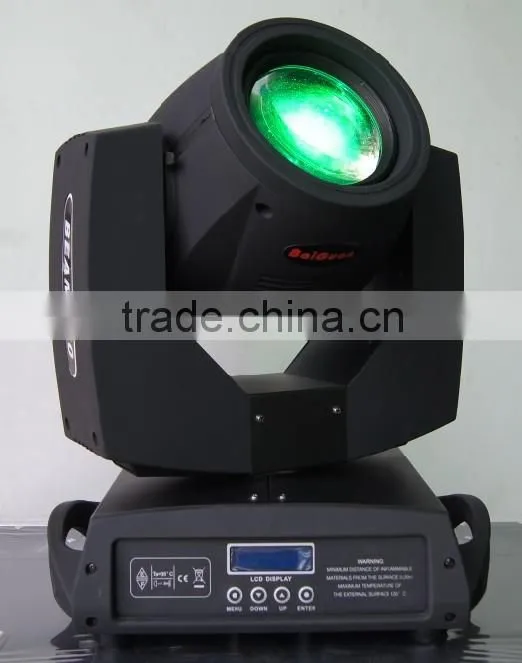

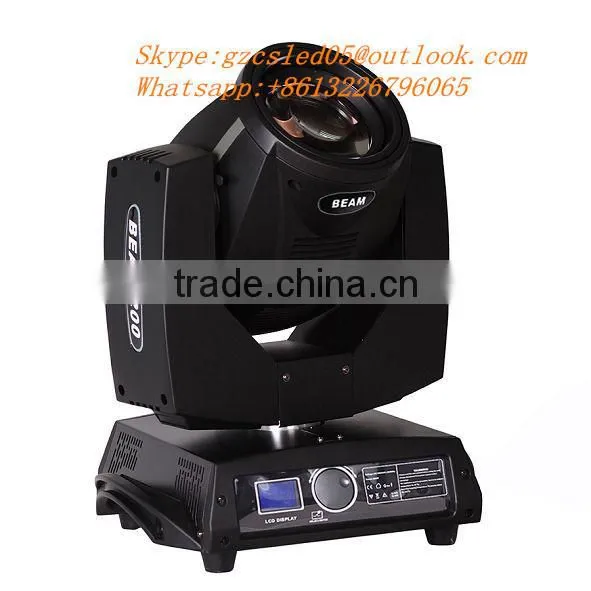

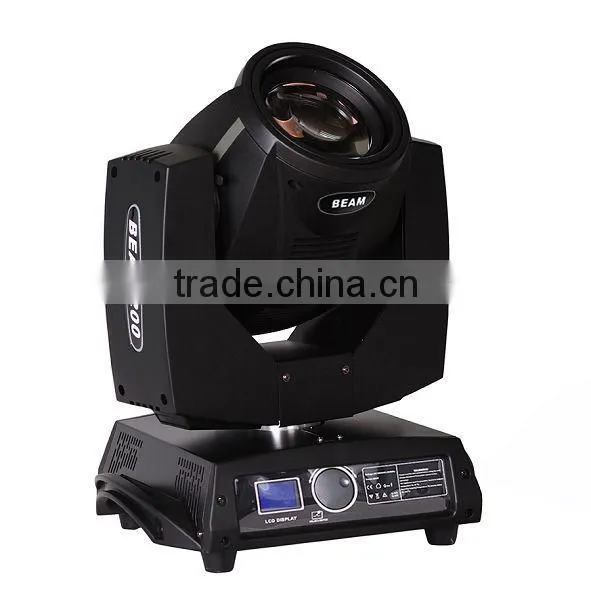

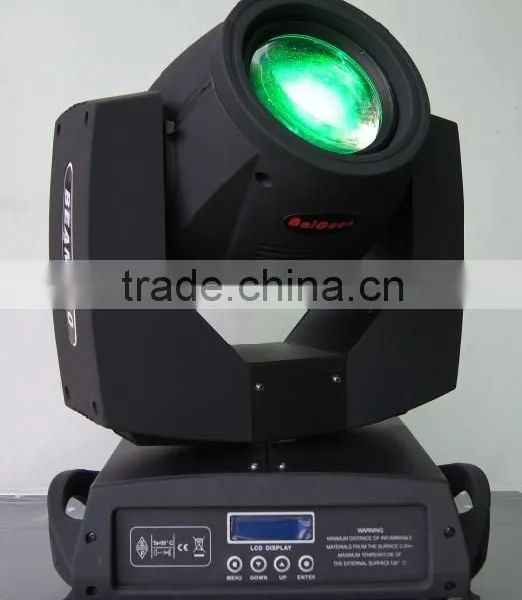

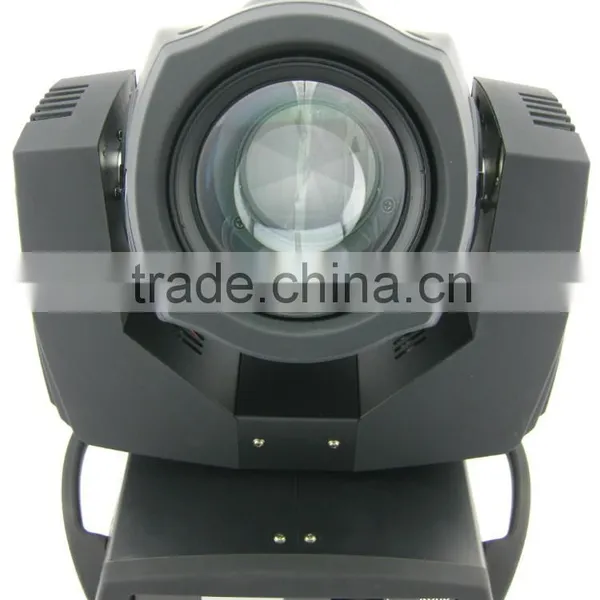

Our product

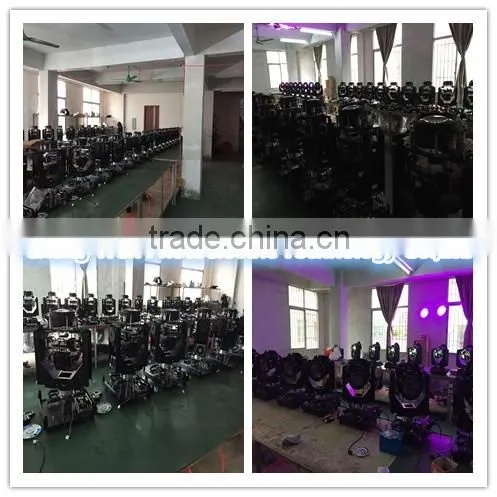

Our factory

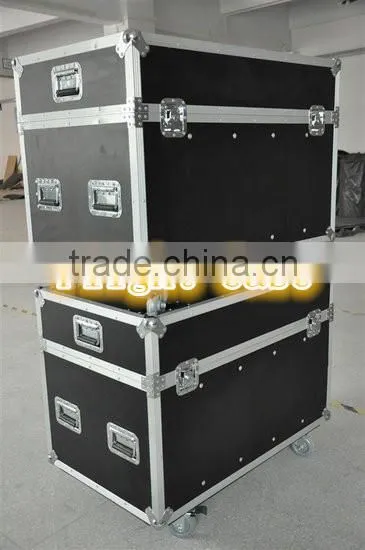

External package
Our Service
1.Your inquiry related to our products or price will be replied within 24 hours.
2. All your inquiries will be well explained by our experienced staff.
3. OEM provide customized service.
4. We will keep secret for customer sale area, design ideas and all other private information.
FAQ
Q: What's the Payment method?
A: We can accept T/T, Western Union, PayPal or visit factory in Cash as payment method, 30% deposit before production, the balance before delivery. When PayPal is made, 4% handling fee will be added.
Q: What's the shipping method and deliery time?
A: Our products could be shipped by Sea, by Air or by Express. Which method to be used is based on the weight and size of the package and with consideration of customer's requirements. By sea: 20-38days;By air: 5-9 days ; By express: 3-10days.
Address:
3,4/F No.137 Shinan Road Shimen Ting Chaoyang Village Shijing Town Baiyun District Guangzhou.
If you are interested in our products, welcome to your inquiry , please contact me:
Thank you very much!
