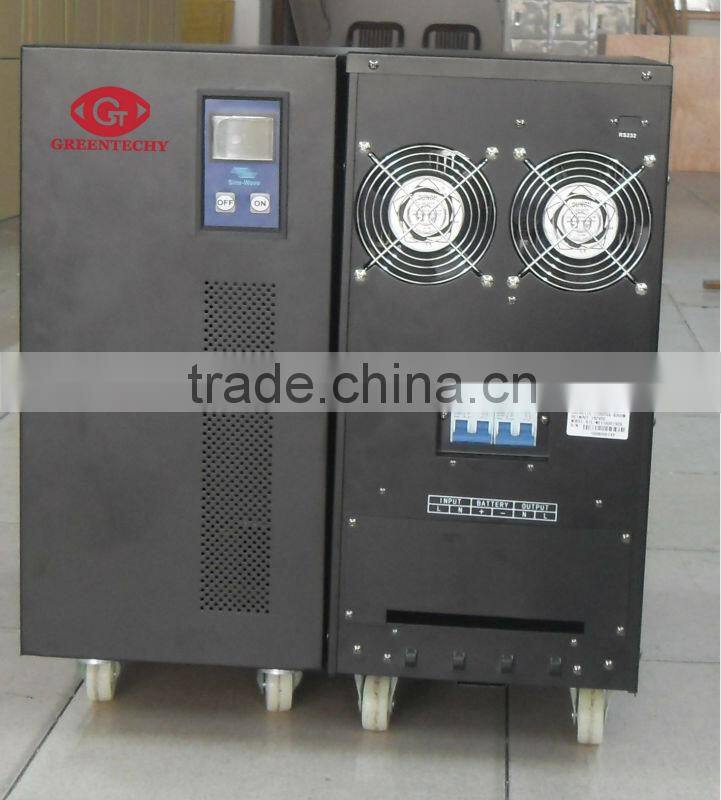

300-1000watt dc 12V to ac Pure Sine Wave Power Inverter for Home Use

Specifications

1. Pure sine wave,CPU control.
2. Wide input range of 110-280V.
3. Power frequency design.
4. Compatible with generator.







Greentechy Home inverter, inverter advantages:

Pure sine wave output, can be with different loads,

very wide input range of 110V-280V, double-layer PCB board,

LCD/LED optional,

can accept OEM from our dear clients!



Welcome to talk details with Vivian cheng(sales01 at ), skype: greentechy-sales01, get the new pricelist and catalog! Let's talk NOW!



Features:

1. Pure sine wave output,home inverter can be used with different house appliance TV,refrigerator,fan,air conditioner,induction cooker,micro-wave over etc.
2. Superior performance from CPU control technology.
3. Protection for over-load,short circuit,over-voltage,low-voltage,over-heating etc.
4. Concise LED display and distinctive LCD display are optional.
5. Which satisfy the power supply for different back up time.
6. Intelligent battery management with protection against over-charged and over-discharged etc.
7. Wide range of input voltage,accurate output,AVR function.
8. Generator compatibly and external battery connection achievable



Technical Specification:

Model Soho-C****		301	401	501	601	751	102
Rated capacity(W)		300W	400W	500W	600W	750W	1000W
Output	Commercial power range(VAC)	100/110/120/127/220/ 230(+25%,-35%)
	AVR Voltage range (VAC)	100/110/120/127/220/ 230±10% (Auto-sensing)
	Transfer time	Typical:5ms(Including detection time)
Battery	DC Voltage	12DVC	12/24DVC		24DVC
Appearance	Body size(mm) L x W x H	320×130×190
	Size(mm) L×W×H	480×430×315(2 piece)
	Net weight (kg)	5.0	6.0	7.0	8.0	10.0	11.0
	Gross weight (kg)	14.0	16.0	18.0	20.0	24.0	26.0





















































Input	Frequency(Hz)	60/50±10%
Output	Waveform	Sine wave
	Frequency(Hz)	Commercial power supply :shared frequency with the commercial inversion state:60Hz/50Hz ±0.5
Protection	Overload	IPS automatically shutdown if overload exceeds 120% of normal value for 10 seconds,IPS automatically resume work if overload comes back to rated load.
Battery	Type	Sealed,maintenance-free lead acid
	Recharge current	15A(Maximum)
	Battery protection	Automatic self-test,discharge protection,over-charging protected,smart management system.
