High Quality Home Inverter 500w

Foshan Greentechy Energy Technology Co., Ltd.

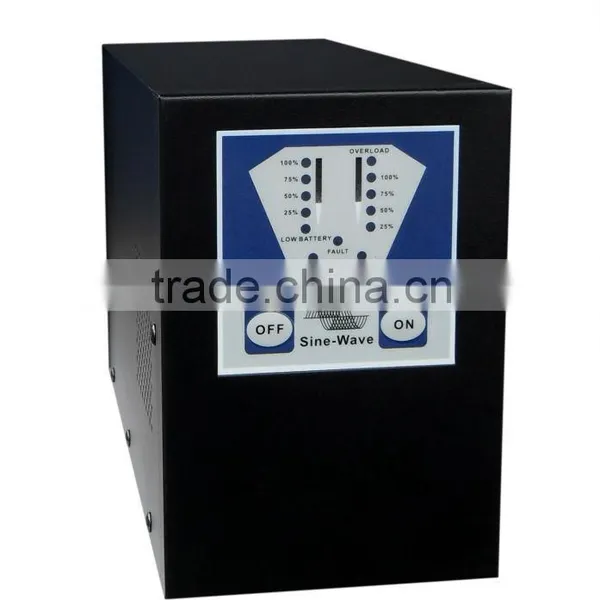

High Quality Home Inverter 500w thumbnail-1
High Quality Home Inverter 500w photo-1
US$ 60.8 - 61 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Greentechy
Model Number:
Soho-C500W
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan/Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Greentechy
Model Number Soho-C500W
Output Power Other, 1500W
Output Type Single
Size 504*272*445
Weight 22-24
Input Voltage 24VDC/48VDC/96VDC or others
Output Voltage 110/120/220/230VAC
Type Other, DC/AC Inverters, Pure sine wave home inverter
Output Frequency 50Hz/60Hz
Output Current 15A

Specifications

1. Pure sine wave,CPU control.
2. Wide input range of 110-280V.
3. Power frequency design.
4. Compatible with generator.

high quality home inverter 500whigh quality home inverter 500whigh quality home inverter 500w



Features:


1. Pure sine wave output,home inverter can be used with different house appliance TV,refrigerator,fan,air conditioner,induction cooker,micro-wave over etc.
2. Superior performance from CPU control technology.
3. Protection for over-load,short circuit,over-voltage,low-voltage,over-heating etc.
4. Concise LED display and distinctive LCD display are optional.
5. Which satisfy the power supply for different back up time.
6. Intelligent battery management with protection against over-charged and over-discharged etc.
7. Wide range of input voltage,accurate output,AVR function.
8. Generator compatibly and external battery connection achievable



Technical Specification:



Model Soho-C****

122

152

182

202

302

402

502

602

752

103

Rated capacity(W)

1200W

1500W

1800W

2KW

3KW

4KW

5KW

6KW

7500W

10KW

Output

Commercial power range(VAC)

100/110/120/127/220/ 230(+25%,-35%)

100/110/120/127/220/ 230±20%

AVR Voltage range(VAC)

100/110/120/127/220/ 230±10% (Auto-sensing)

(NO)

Transfer time

Typical:5ms(Including detection time)

Battery

DC Voltage

24/48VDC

48/96VDC

96/192VDC

Appearance

Body size(mm)

L×W×H

460×220×385

460×260×470

550×262×605

Size(mm)

L×W×H

504×272×445

(1 piece)

555×345×530     (1 piece)

645×350×730 (1 piece)

Net weight (kg)

17

22.0

25.0

23.0

28.0

32.0

33.0

39.0

63.0

64.0

Gross weight (kg)

19.7

24.0

27.0

25.0

30.0

34.0

35.0

41.0

73.0

74.0







Input

Frequency(Hz)

60/50±10%

Output

Waveform

Sine wave

Frequency(Hz)

Commercial power supply :shared frequency with the commercial inversion state:60Hz/50Hz ±0.5

Protection

Overload

IPS automatically shutdown if overload exceeds 120% of normal value for 10 seconds,IPS automatically resume work if overload comes back to rated load.

Battery

Type

Sealed,maintenance-free lead acid

Recharge current

15A(Maximum)

Battery protection

Automatic self-test,discharge protection,over-charging protected,smart management system.
