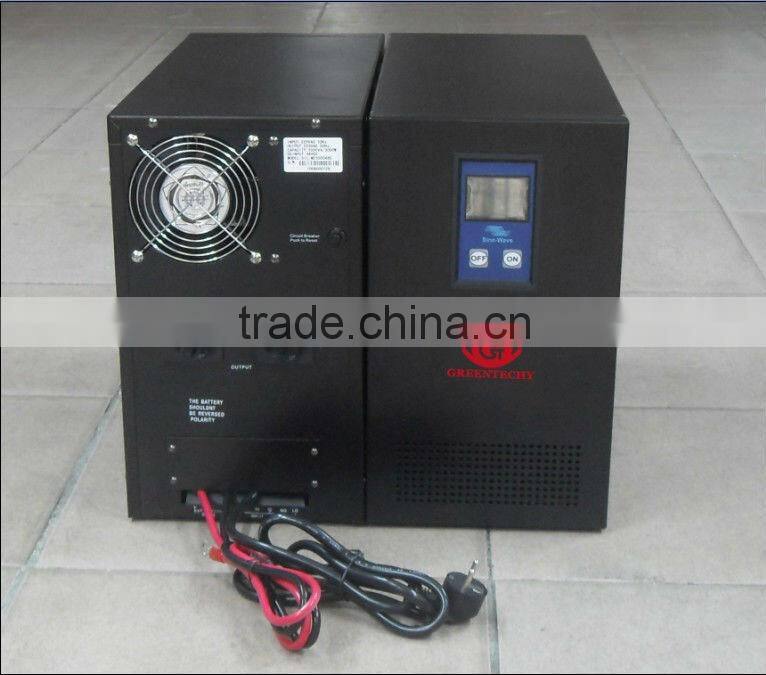

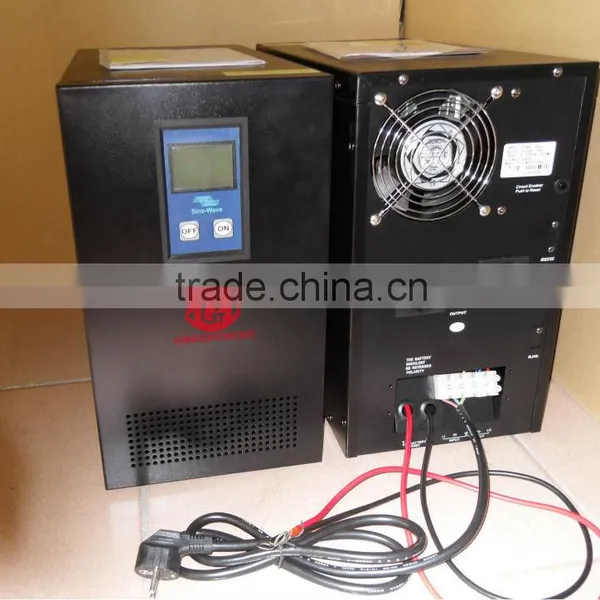

Help CenterLow Cost Power Inverter Soho-C2500W Best Home Use Inverter(best Service in China)
Related Products
-
Pure Sine Wave Soho-C500W Best Home Use Inverter(Power Frequency Design High Quality)US$ 60 - 80MOQ: 50 Pieces -
Pure Sine Wave Soho-C600W Best Home Use Inverter(Power Frequency Design High Quality)US$ 60 - 80MOQ: 50 Pieces
-
Pure Sine Wave Soho-E600W Best Home Use Inverter(Power Frequency Design High Quality)US$ 60 - 75MOQ: 50 Pieces
-
Pure Sine Wave Soho-E800W Best Home Use Inverter(Power Frequency Design High Quality)US$ 60 - 90MOQ: 50 Pieces
-
Pure Sine Wave Soho-E1KW AC Home Use Inverter(Low Cost Best Service in China)US$ 80 - 100MOQ: 50 Pieces
Specifications
1. Pure sine wave,CPU control.2. Wide input range of 110-280V.
3. Power frequency design.
4. Compatible with generator.
Features:
1. Pure sine wave output,home inverter can be used with different house appliance TV,refrigerator,fan,air conditioner,induction cooker,micro-wave over etc.
2. Superior performance from CPU control technology.
3. Protection for over-load,short circuit,over-voltage,low-voltage,over-heating etc.
4. Concise LED display and distinctive LCD display are optional.
5. Which satisfy the power supply for different back up time.
6. Intelligent battery management with protection against over-charged and over-discharged etc.
7. Wide range of input voltage,accurate output,AVR function.
8. Generator compatibly and external battery connection achievable
Technical Specification:
Model Soho-C**** | 122 | 152 | 182 | 202 | 302 | 402 | 502 | 602 | 752 | 103 | |
Rated capacity(W) | 1200W | 1500W | 1800W | 2KW | 3KW | 4KW | 5KW | 6KW | 7500W | 10KW | |
Output | Commercial power range(VAC) | 100/110/120/127/220/ 230(+25%,-35%) | 100/110/120/127/220/ 230±20% | ||||||||
AVR Voltage range(VAC) | 100/110/120/127/220/ 230±10% (Auto-sensing) | (NO) | |||||||||
Transfer time | Typical:5ms(Including detection time) | ||||||||||
Battery | DC Voltage | 24/48VDC | 48/96VDC | 96/192VDC | |||||||
Appearance | Body size(mm) L×W×H | 460×220×385 | 460×260×470 | 550×262×605 | |||||||
Size(mm) L×W×H | 504×272×445 (1 piece) | 555×345×530 (1 piece) | 645×350×730 (1 piece) | ||||||||
Net weight (kg) | 17 | 22.0 | 23.0 | 25.0 | 28.0 | 32.0 | 33.0 | 39.0 | 63.0 | 64.0 | |
Gross weight (kg) | 19.7 | 24.0 | 25.0 | 27.0 | 30.0 | 34.0 | 35.0 | 41.0 | 73.0 | 74.0 | |
Input | Frequency(Hz) | 60/50±10% |
Output | Waveform | Sine wave |
Frequency(Hz) | Commercial power supply :shared frequency with the commercial inversion state:60Hz/50Hz ±0.5 | |
Protection | Overload | IPS automatically shutdown if overload exceeds 120% of normal value for 10 seconds,IPS automatically resume work if overload comes back to rated load. |
Battery | Type | Sealed,maintenance-free lead acid |
Recharge current | 15A(Maximum) | |
Battery protection | Automatic self-test,discharge protection,over-charging protected,smart management system. |
