What a Sheen 230W 7R Stage Beam Light

230W Stage Beam Light  Description

* 230w reflect lamp* 14 colors

* 17 gobos

* 8 facet prism with rotating and moving effect

* Beam angle 2.5°

* Mechanical + electronic dimmer

* High speed strobe 1-13/sec.

* Pan 540°, 8 or 16Bit resolution

* Pan 270°, 8 or 16Bit resolution

* Pan/tilt is driven by 3-phase motor and fast inspected and located through encoder, moving quickly and steady.

* High-powered electronic hardware application, anti-interference performance enhanced, steady and reliable

LAMP SOURCE

Lamp power: 230 W

Type: MSD Platinum 7r /OSRAM SIRIUS HRI 230W

Color temperature: 8000/8800K

Luminous flux: 7950lm/9200lm

Average life: 2000/3000 h

OPTICS

Beam angle 3.8°

Fresnel lens

COLOR SYSTEM

14 color filters + white

 GOBO SYSTEM

1 gobo wheel with 17 gobos

 EFFECT EQUIPMENT

1 rotating 8-facet prism, 1 frost effect, dimmer and strobe function, 0-100% linear dimmer, strobe speed 1-13/sec.

CONTROL AND PROGRAMMINGControl channel model: short mode:12,standard mode:16

Protocol: Standard DMX512 protocol
Display: LCD touch display

Resolution control: Pan, tilt, gobo

DMX signal connection: 3 pin XLR input/output

BODY

Aluminum structure with die-cast plastic cover

Two handles for transportation

Pan and tilt lock for transportation and maintenance

MOVING PARAMETER

Angle: PAN=540°, TILT=270°

Max speeds: PAN=1.72 sec.(360°),TILT=1.35 sec.(270°)

Resolution:

PAN=2.11°,TILT FINE=0.008°,

TILT=1.05°,TILT FINE=0.004°

PAN and TILT adopt electro-optic reset system, automatically reset the pan and tilt movement caused by accident

ELECTRIC CONTROL TECHNOLOGY
Fixture reset is controlled through menu or light console
On/Off lamp through remotely control

Automatically energy saving model
Electronic sensor detection
DMX channel level monitoring
Fixture information query
Motor zero 16bit regulation and control


POWER SUPPLY

AC90-240V 50/60Hz

Switching power supply

Electronic ballast

INPUT POWER

295W,PFC≥0.96

SAFETY PROTECTION

Overcurrent , overvoltage and overheating protection

WORKING POSITION

Any safety position to install

STANDARD CERTIFICATE

In conformity with GB7000.1-2007,GB7000.217-2008 and GB17625.1-2003 directives.

FIXTURE DIMENSION

405×330×475mm.

WEIGHT

17.5kg

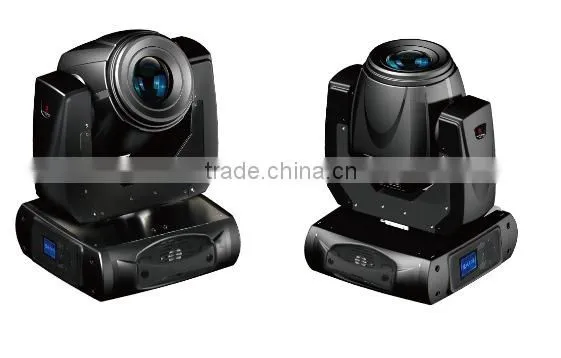

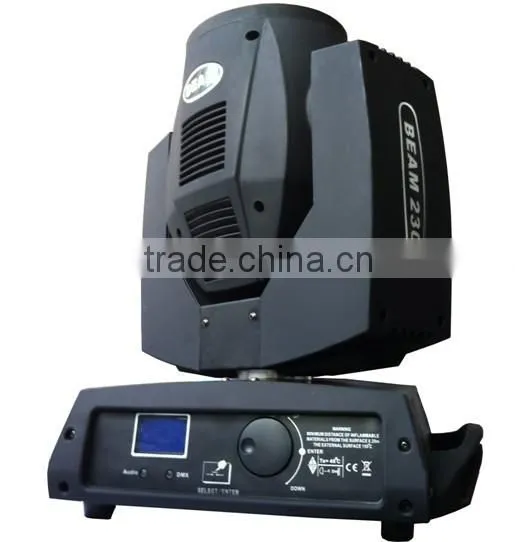

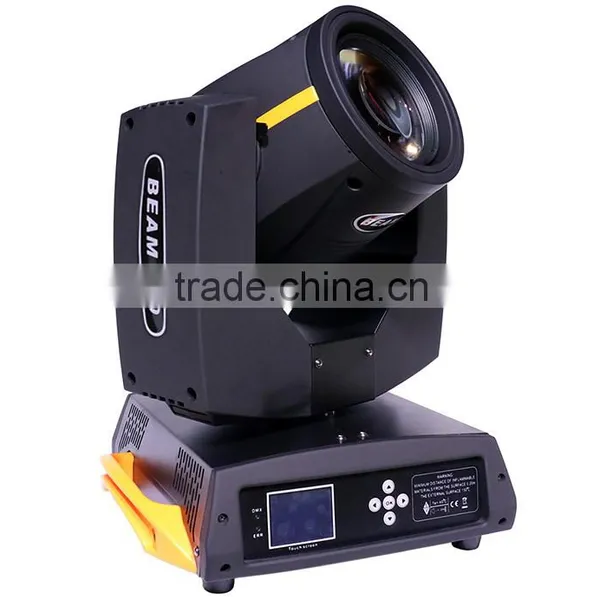

Our product

Our  factory

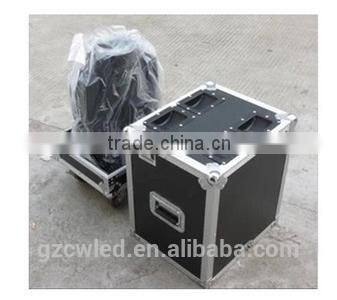

External  package
