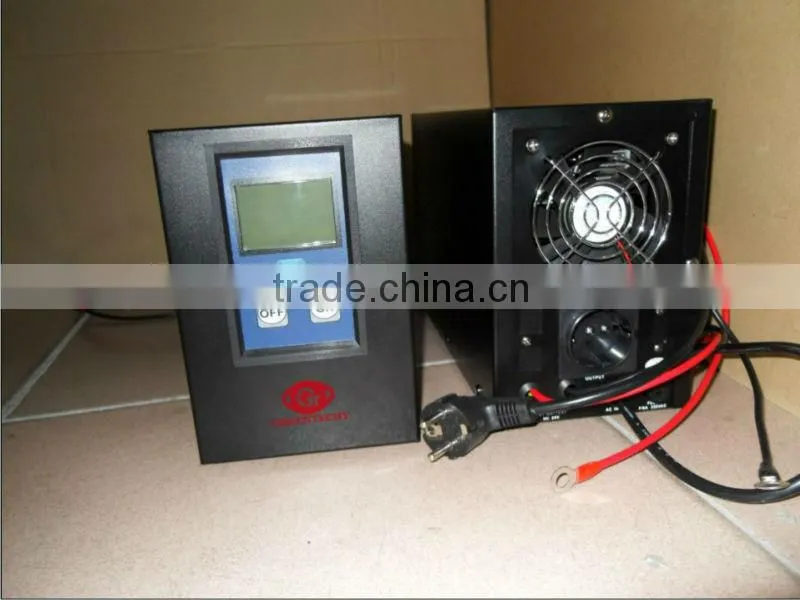

Help Center1KW Inverter, Pure Sine Wave Inverter
Related Products
-
DC to AC Off Grid Inverter Best Home Inverter 1500W-3600WUS$ 150 - 330MOQ: 2 Pieces -
1500W-2000W DC to AC Home Inverter With 24V Output Voltage, Reasonable PriceUS$ 150 - 330MOQ: 2 Pieces
-
7KW-10KW Home Inverter Generator Compatibility Home InverterUS$ 450 - 1,500MOQ: 1 Piece
-
6000w CE RoHS Pure Sine Wave Home InverterUS$ 518 - 520MOQ: 1 Piece
-
HOME INVERTERNegotiableMOQ: 1 Piece

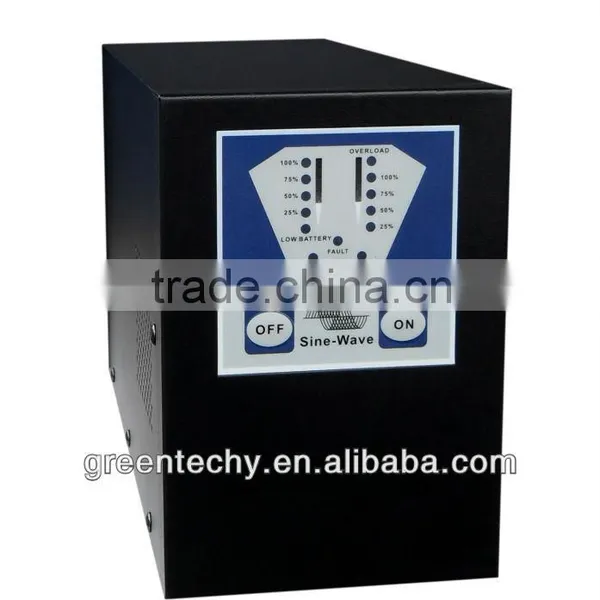

GREENTECY HOME PURE SINE WAVE INVERTER SERIES
1. Pure sine wave output,home inverter can be used with different house appliance TV,refrigerator,fan,air conditioner,induction cooker,micro-wave over etc.
2. Superior performance from CPU control technology.
3. Protection for over-load,short circuit,over-voltage,low-voltage,over-heating etc.
4. Concise LED display and distinctive LCD display are optional.
5. Which satisfy the power supply for different back up time.
6. Intelligent battery management with protection against over-charged and over-discharged etc.
7. Wide range of input voltage,accurate output,AVR function.
8. Generator compatibly and external battery connection achievable.
Pure sine wave output, very wide input range of 110V-280V, double-layer PCB board.
Technical Specification:
Model Soho-C**** |
301 |
401 |
501 |
601 |
751 |
102 |
|
Rated capacity(W) |
300W |
400W |
500W |
600W |
750W |
1000W |
|
Output |
Commercial power range(VAC) |
100/110/120/127/220/ 230(+25%,-35%) |
|||||
AVR Voltage range (VAC) |
100/110/120/127/220/ 230±10% (Auto-sensing) |
||||||
Transfer time |
Typical:5ms(Including detection time) |
||||||
Battery |
DC Voltage |
12DVC |
12/24DVC |
24DVC |
|||
Appearance |
Body size(mm) L x W x H |
320×130×190 |
|||||
Size(mm) L×W×H |
480×430×315(2 piece) |
||||||
Net weight (kg) |
5.0 |
6.0 |
7.0 |
8.0 |
10.0 |
11.0 |
|
Gross weight (kg) |
14.0 |
16.0 |
18.0 |
20.0 |
24.0 |
26.0 |
|
Input |
Frequency(Hz) |
60/50±10% |
Output |
Waveform |
Sine wave |
Frequency(Hz) |
Commercial power supply :shared frequency with the commercial inversion state:60Hz/50Hz ±0.5 |
|
Protection |
Overload |
IPS automatically shutdown if overload exceeds 120% of normal value for 10 seconds,IPS automatically resume work if overload comes back to rated load. |
Battery |
Type |
Sealed,maintenance-free lead acid |
Recharge current |
15A(Maximum) |
|
Battery protection |
Automatic self-test,discharge protection,over-charging protected,smart management system. |
