Specifications

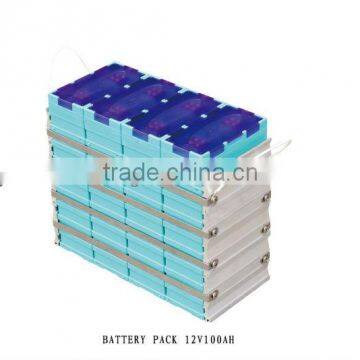

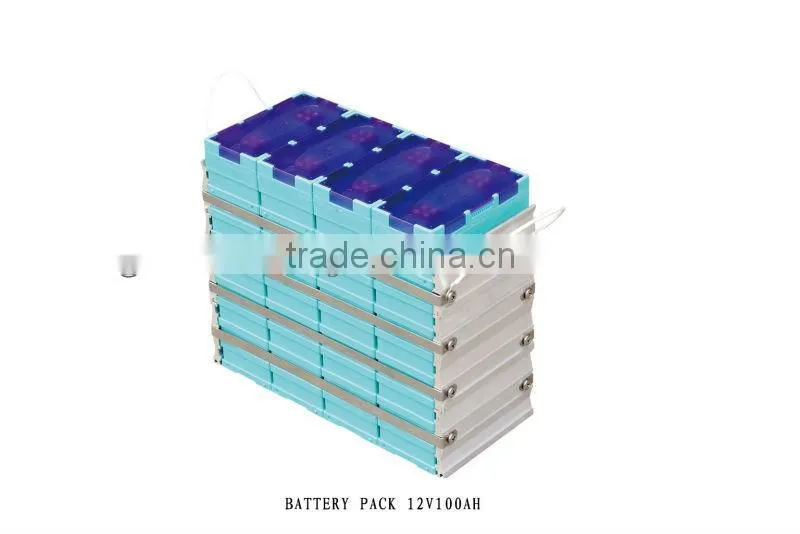

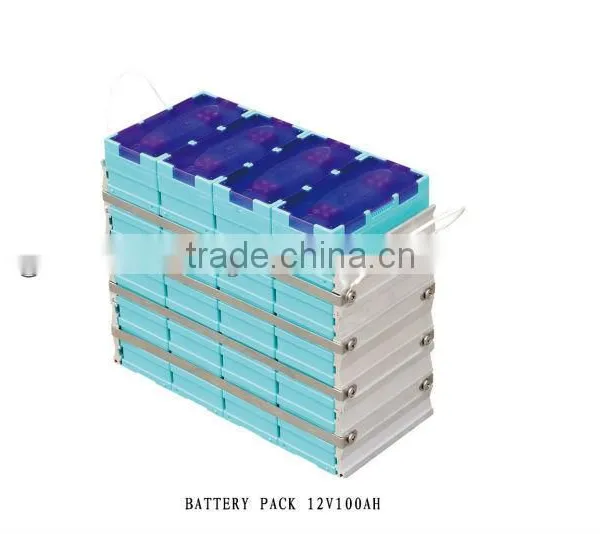

1.Lithium batteries for solar systems 12v2.Capacity Customize
3, 2 years warranty of battery
Item | Specification | Remark | ||
5.1 Rated capacity | 100Ah | 0.2C rate discharge capacity
| ||
5.2 Minimum capacity | 100Ah | |||
5.3 Internal impedance | ≤1.8m | |||
5.4 Nominal voltage | 3.2V | |||
5.5Cell weight | 2.8KGS | |||
5.8 Standard discharge conditions(1C)
| Constant current | 50A | ||
End-of-charge voltage | 2.8V | |||
5.6 Standard charge method
| Constant current | 10A | ||
3.65V | ||||
5.7 Fast charge method
| Constant current | 100A | ||
Charge voltage | 3.65V | |||
5.9 Max continuous discharge current | 300A | |||
5.10 Pulse discharge at 10 Sec | 1000A | |||
5.11 Cycle life | 1500 cycles | 80% DOD | ||
5.12 Operating temperature | Charging ambient temperature | 0~45°C
| Cell skin temperature should not exceed 70 . | |
Discharging ambient temperature | -25~75°C
| Cell skin temperature should not exceed 70°C | ||
Storage temperature | 0~45°C | |||
5.13Appearance
| Without break, scratch, distortion, contamination, leakage. | |||
Basic Performance of LFMP Power Battery
Output with high efficiency: Standard discharge current is 0.3C-0.8C, continuous maximum discharge current is 3C, instant impulse discharge current is 10C for 10 seconds.
Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.
Good safety performance, it will not explode and get fire when internal and external of battery is damaged.
