Penumatic Pin Marking Machine With CE

Penumatic Pin Marking Machine With CE thumbnail-1
Penumatic Pin Marking Machine With CE photo-1
US$ 2,500 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
SHENJIAN
Contact Supplier Request Quote Chat Now
Shanghai Shenjian Numerical Control Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name SHENJIAN
Model Number SJ series
Rated Power 100w
Engraving Speed 80mm/s
Main Axle Rotational Speed 500
Feeding Height 350mm
Milling Cutter Diameter 3-4mm
Application auto line , hard ware
Dimensions 110*80mm,170*80mm,170*120mm,300*200mm
Weight 50kg
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Pin Marking Machine
1,Mark beautiful characters & graphs
2,no need computer
3,High quality imported components
4, metal mark

Pin Marking Machine

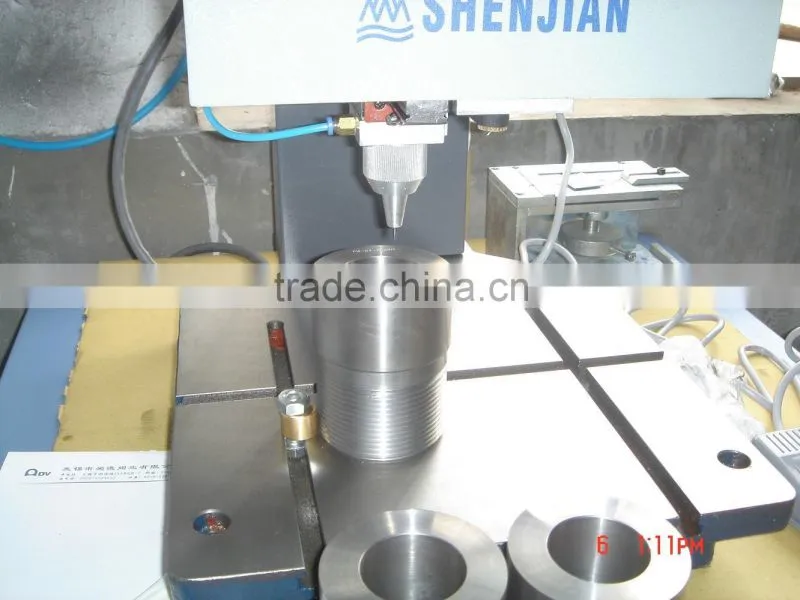

Penumatic Pin Marking Machine with CE

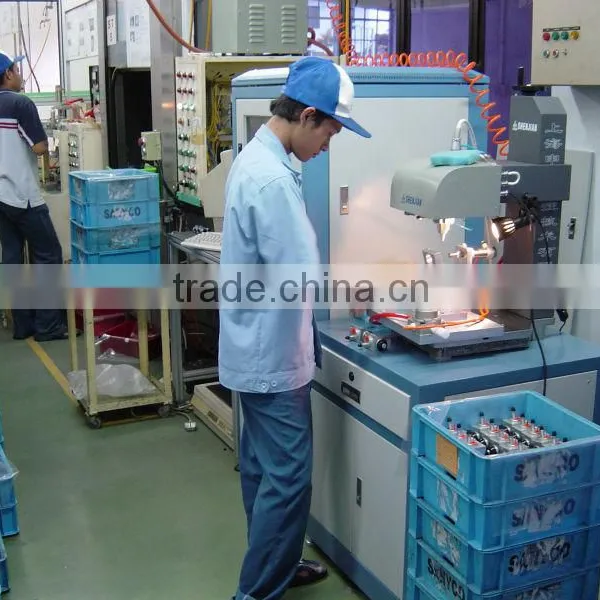

Marking site

Penumatic Pin Marking Machine with CE

Mark all kinds auto parts, hard ware and other metal and plastic products



Marking sample

Penumatic Pin Marking Machine with CE

This new All-in-One marking machine no need computer, Aluminum material base and upright post, can connect key board and mouse for easy operation.

It can combine with rotation jig for circumference mark, and can design with electrical lifting device.

Technical Indicator
1. marking deepness:0.01-2mm(according to material)
2. marking speed:3-5 characters per second or 80mm straight line
3. pin of marking machine impactive frequency:400 times/S, rigidity :HRA93
4. marking range :plane 110×80mm,170×80 mm,80×30 mm,150×40 mm,170×120 mm,300×200 mm, circumference surface: 110×φ2.5—φ110 mm,170×φ2.5—φ110 mm (can be design to special requirements)
5. can mark 0.5×0.5 mm  character
6. power: 100W

Use Enviroment
1. power supply : AC220V±10%,50Hz
2. compressed air: 0.4—0.6Mpa
3. temperature: 0°C—+40°C
4. humidity.:less than 90 percent
