Product details:
Design & Manufacture according to : BS 1868
Face to Face according to : ASME B16.10
Flange Dimensions according to : ASME B16.5
Pressure & Temperature according to : ASME B16.34
Test & Inspection according to : API 6D / API 598
Visual Inspection according to : MSS SP-55
Marking according to : MSS SP-25
Applicable medium: nitric, acetic acid, water, oil, gas and some corrosive liquids
Material Option:
| Carbon steel | A216 Gr. WCB , WCC , WCA , etc |
| Low temperature steel | A352 Gr. LCB , LCC , LC1 , etc |
| Cr-Mo steel | A217 Gr. WC6 , WC9 , C5 , C12 , C12A , etc |
| Stainless Steel | A351 Gr. CF8 , CF8M , CF3 , CF3M , CF8C , etc |
| Alloy steel | CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc |
| Super duplex | A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc |
| Aluminum bronze | B148 C95500 , C95600 , C95800 , etc |
| Monel | M30C , M35-1 , CZ100 , etc |
| Inconel | CY40 inconel 600 , etc |
| Hastelloy | CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc |
| Incoloy | CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc |
Material list(CN standard):
Specifications

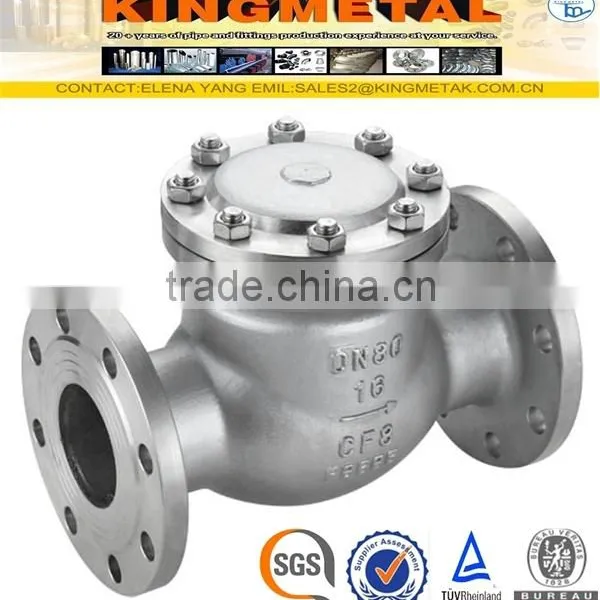

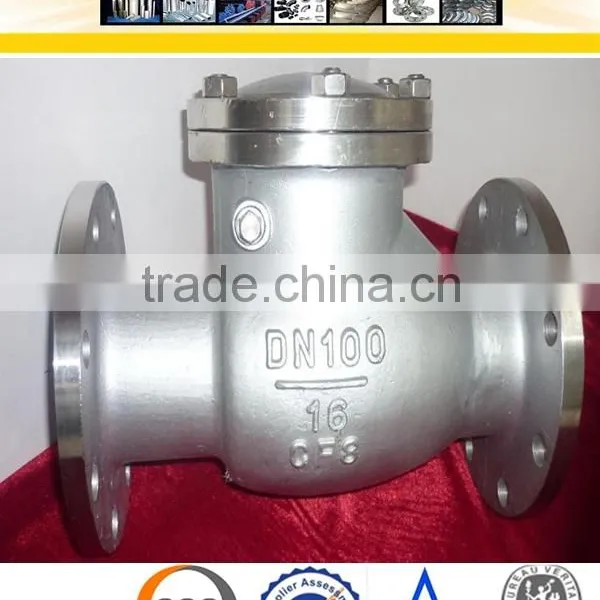

Cast Steel Check Valve
1.Design as per API6D&BS1868
2.Swing Type:Cast Steel Body,Bolted Cover,Flanged End
3.150-1500LB,2"-24"
Cast Steel Check Valve:
1). Size: 2"-24"
2). Pressure: Class 150Lb-1500Lb
3). Material: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12
4). Design&Manufacture Std.: API 6D, BS 1868, ASME B16.34
5). Face to Face Std.: ANSI B 16.10
6). End Connection Std.: ASME B16.5, ASME B 16.47
7). Test Standard: API 598
