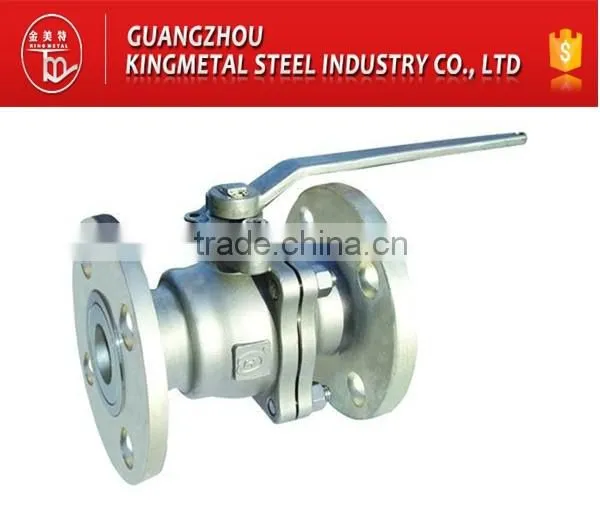

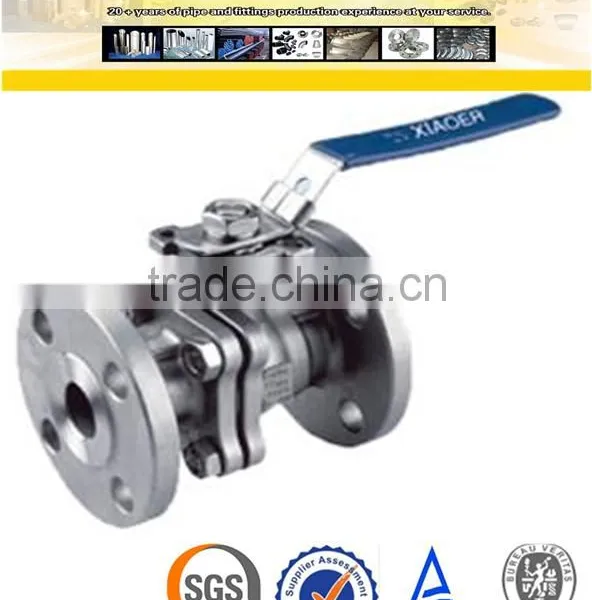

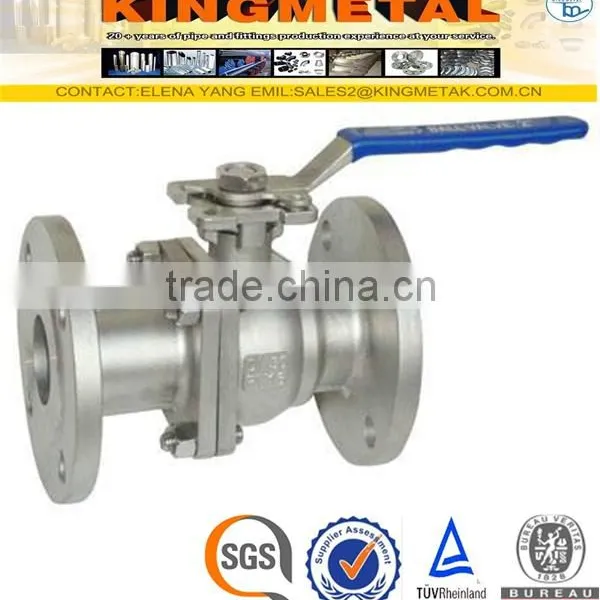

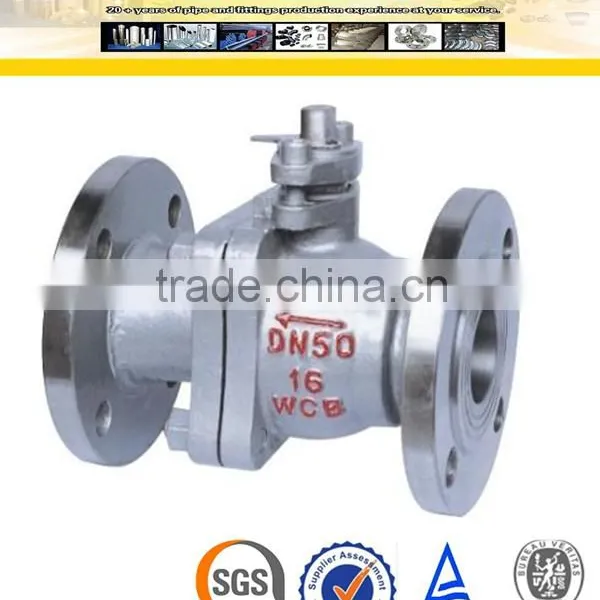

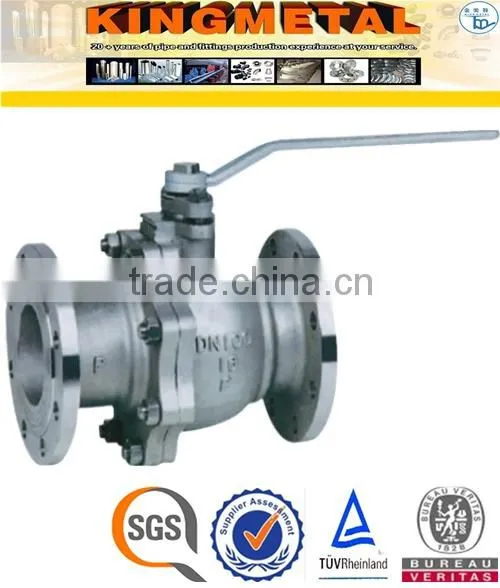

Help CenterAPI 6D 150lb/300lb Ball Valve Price
US$ 50 - 1,000
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
main port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2pc Q11F-16P 304 Stainless Steel API 6A Ball ValveUS$ 3 - 200MOQ: 1 Set -
Cast Steel Py 10 API 6A Ball ValveUS$ 3 - 200MOQ: 1 Set
-
Carbon Steel Py 10 API 6A Gate ValveUS$ 2,800 - 3,000MOQ: 1 Ton
-
F304 Stainless Steel Handwheel Operated Rising Steam Gate ValveUS$ 5 - 200MOQ: 50 Pieces
-
F304 150Lbs/300Lbs Stainless Steel Gate ValveUS$ 25 - 200MOQ: 50 Pieces
Standard or Nonstandard
Standard
Structure
Ball
Pressure
Medium Pressure
Power
Other, Water
Material
Stainless Steel
Temperature of Media
Normal Temperature
Media
Water
Port Size
1/2'-72"
Place of Origin
China
Model Number
EL-BV
Brand Name
Kingmetal
Application
General
Materials:
Cast steel:ASTM A216 WCB,WCA,WCC
Stainless steel:CF3,CF3M,CF8,CF8M,CF8C,CF8M,CF10,CF10M,F304,F316,F304L,F316L,etc.
Cr-Mo Steel:ASTM A217 WC1,WC6,WC9,C5,C12,C12A,F11,F22,F1etc.
Low Temperature Steel:ASTM A352 LCA ,LCB,LCC,LC1,LC2,etc.
Size:
Cass150:1/2INCH~8INCH
Class300:1/2INCH~8INCH
Class600:1/2INCH~1 1/2INCH
Class900:1/2INCH~1INCH
Class 1500:1/2INCH~1INCH.
Working medium: Water, Oil, Gas, Acid, Steam,etc
Industry Standards
| Steel Valves | ANSI B16.34,API 6D |
| Face-to-Face | ANSI B16.10 |
| Flange Dimensions | ANSI B16.5 |
| Basic Design | ANSI B16.34,API 608 |
| Testing | API 598 |
Test pressure
| Class | 150 | 300 | 600 | 900 | 1500 |
| Shell(hydrostatic) | 425 | 1100 | 2175 | 3250 | 5400 |
| Seat(hydrostatic) | 300 | 800 | 1600 | 2400 | 4000 |
| Seat(air) | 80 | 80 | 80 | 80 | 80 |
Material of construction:
| Body | LCB | WCB | CF8 | CF8M |
| Body Cap | LCB | WCB | CF8 | CF8M |
| Stem | 304 | 410 | 304 | 316 |
| Packing | PIFE | |||
| Seat Rings | Reinforced PTFE | Reinforced PTFE Nylon Polyphenylene | ||
| Ball | CF8,304 | 410 | CF8,304 | CF8,316 |
| Gland Flange | WCB | CF8 | CF8 | |
| Stopper Stud | A105(zinc plating) A193 Gr.B7 | A105(zinc plating) A193 Gr.B7 | 420 304 | 420 304 |
| Nut | A194 Gr.2H | A194 Gr.2H | 304 | 304 |
Note:when working pressure smaller than 15MPa,the material of seating ring is made of reinforced PTFE,and working pressure larger than 15MPa,the material of seating ring is made of ntylon.
Working Temperature:
WCB.CF8.CF8M With Reinforced PTFE:-20 ° F~ 356°F
WCB.CF8.CF8M With Nylon: :-20 ° F~ 176°F
WCB.CF8.CF8M WithPolyphenylene :-20 ° F~ 500°F
LCB With Reinforced PTFE : -51 ° F~356°F
Application: Petroleum, chemical industry, metallurgy, light industry, papermaking, power plant and refrigeration.
Advantages:
1. The fastest delivery
2. The lowest price
3. Most comprehensive standards and materials for your choice.
4.100% export.
5. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc.
