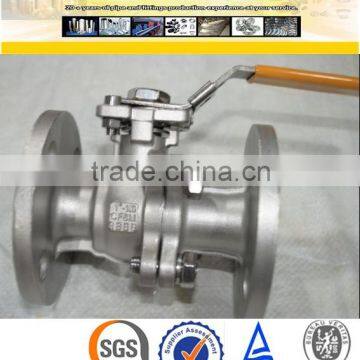

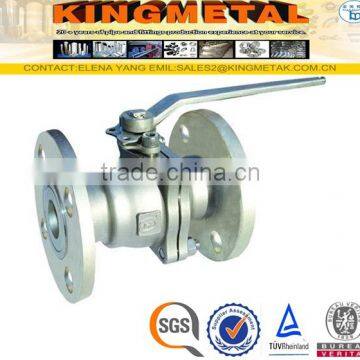

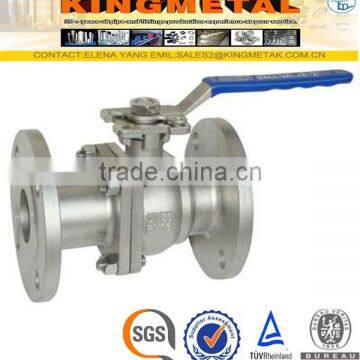

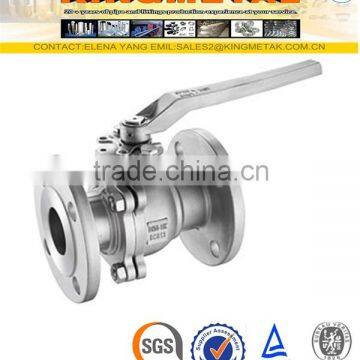

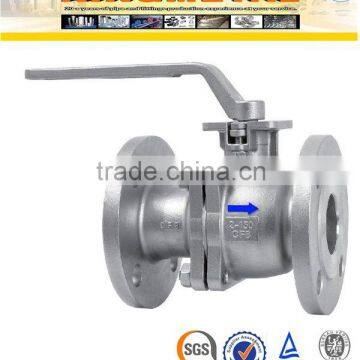

Help CenterSS316 Stainless Steel 6 Inch Ball Valve
Related Products
-
SS304/316 Stainless Steel Sanitary 3 Way Ball Valve 4 InchUS$ 2 - 50MOQ: 10 Pieces -
Sus 304 Stainless Steel Ball Valve 3 InchUS$ 10 - 500MOQ: 10 Pieces
-
SS304 Stainless Steel 2 Inch Ball ValveUS$ 10 - 500MOQ: 10 Pieces
-
SS304 2 Inch Stainless Steel Ball Valve Price ListUS$ 10 - 5,000MOQ: 10 Pieces
-
Ss304/316 Stainless Steel 3 Three Way Ball ValveUS$ 5 - 500MOQ: 10 Pieces
Material:A351-CF8,CF8M,CF3M,316,304;A216-WCB
Size:
Class150:1/2INCH~8INCH
Class300:1/2INCH~8INCH
Class600:1/2INCH~1 1/2INCH
Class900:1/2INCH~1INCH
Class 1500:1/2INCH~1INCH.
Working medium: Water, Oil, Gas, Acid, Steam,etc
Industry Standards
| Steel Valves | ANSI B16.34,API 6D |
| Face-to-Face | ANSI B16.10 |
| Flange Dimensions | ANSI B16.5 |
| Basic Design | ANSI B16.34,API 608 |
| Testing | API 598 |
Test pressure
| Class | 150 | 300 | 600 | 900 | 1500 |
| Shell(hydrostatic) | 425 | 1100 | 2175 | 3250 | 5400 |
| Seat(hydrostatic) | 300 | 800 | 1600 | 2400 | 4000 |
| Seat(air) | 80 | 80 | 80 | 80 | 80 |
Material of construction:
| Body | LCB | WCB | CF8 | CF8M |
| Body Cap | LCB | WCB | CF8 | CF8M |
| Stem | 304 | 410 | 304 | 316 |
| Packing | PIFE | |||
| Seat Rings | Reinforced PTFE | Reinforced PTFE Nylon Polyphenylene | ||
| Ball | CF8,304 | 410 | CF8,304 | CF8,316 |
| Gland Flange | WCB | CF8 | CF8 | |
| Stopper Stud | A105(zinc plating) A193 Gr.B7 | A105(zinc plating) A193 Gr.B7 | 420 304 | 420 304 |
| Nut | A194 Gr.2H | A194 Gr.2H | 304 | 304 |
Note:when working pressure smaller than 15MPa,the material of seating ring is made of reinforced PTFE,and working pressure larger than 15MPa,the material of seating ring is made of ntylon.
Working Temperature:
WCB.CF8.CF8M With Reinforced PTFE:-20 ° F~ 356°F
WCB.CF8.CF8M With Nylon: :-20 ° F~ 176°F
WCB.CF8.CF8M WithPolyphenylene :-20 ° F~ 500°F
LCB With Reinforced PTFE : -51 ° F~356°F
Application: PMilk ,Beer ,Drinks Machinery ,Food Processing,Medicine Machinery, Water Treatment, Chemical, ect.
Advantages:
1. The fastest delivery
2. The lowest price
3. Most comprehensive standards and materials for your choice.
4.100% export.
5. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc.
