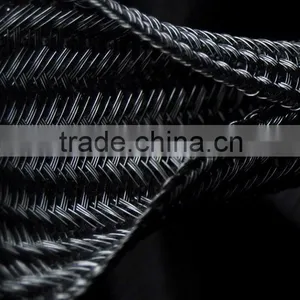

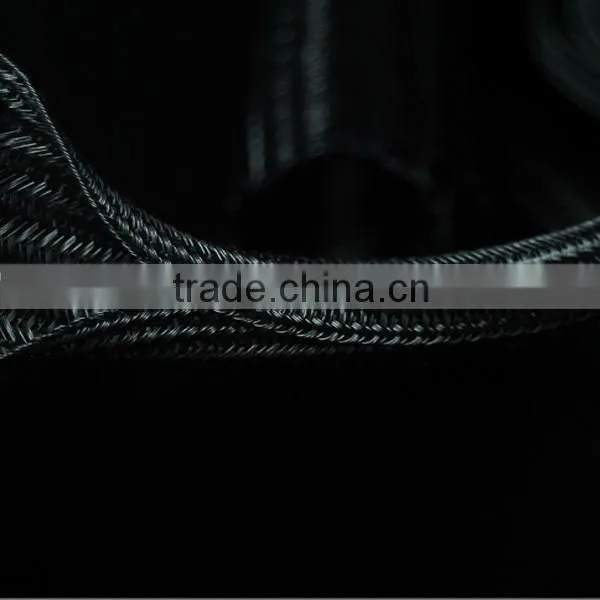

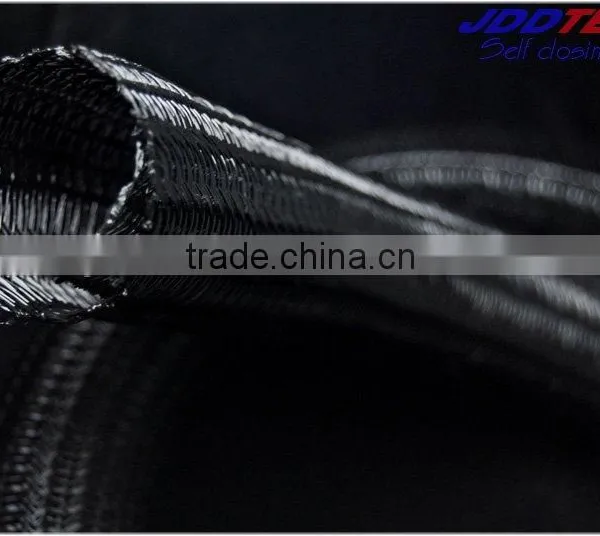

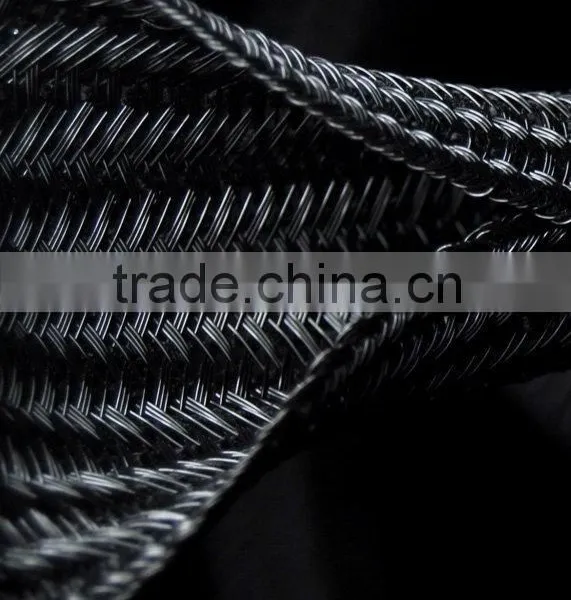

JDD-SSCW is weaved by Polyester monofilament and polyester multifilament , this special structure offers excellent reducing for
noise .Side entry design makes it easy to install, remove and reuse for wire harnesses or cables ,especially where it is installed
in hard to reach areas such as door panels or dashboards. This kind of wrap achieves the same protection function as other common expandable braided products.

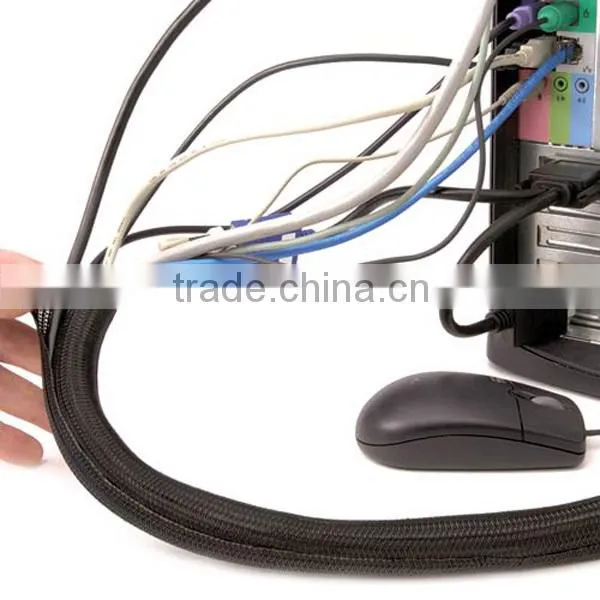

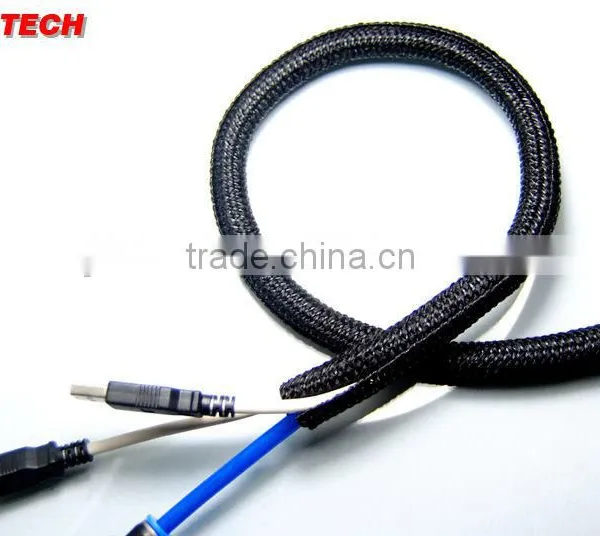

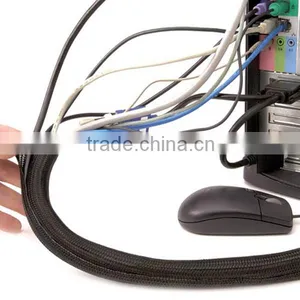

Most commonly used over wire harnesses, cable assemblies, tubing and hose to provide a tough, durable protection and reduce noisy in the automotive, railway , machinery industry etc.
Material : Polyester monofilament and multifilament
Operating: -50°C-- +150°C
Melt point: 250°C±5
Flammability : VW-1
Standard colour: black
Certificate: RoHS, Halogen Free
Cutting tool:hot knife,scissors
| Part No | I.D(I) | Overlap(%) | Max.bundle Dia | Packing(L) |
| SCW-006 | 6 | 25% | 7 | 100m/spool |
| SCW-009 | 9 | 25% | 10 | 100m/spool |
| SCW-013 | 13 | 25% | 14 | 50m/spool |
| SCW-016 | 16 | 25% | 17 | 25m/spool |
| SCW-019 | 19 | 25% | 20 | 25m/spool |
| SCW-025 | 25 | 25% | 26 | 25m/spool |
| SCW-032 | 32 | 25% | 33 | 25m/spool |
| SCW-038 | 38 | 25% | 40 | 25m/spool |
| SCW-050 | 50 | 25% | 52 | 25m/spool |
