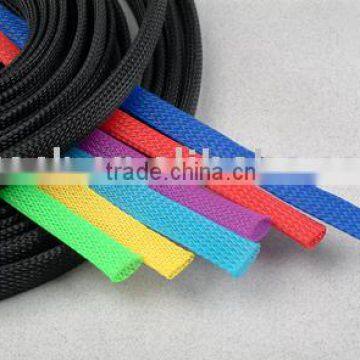

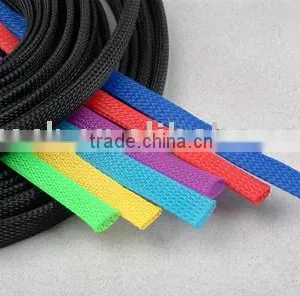

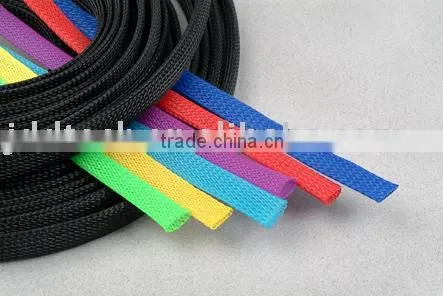

Color Polyester Expandable Sleeving

Color Polyester Expandable Sleeving photo-1
US$ 0.1 - 1 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JDDFLEX
Model Number:
polyester expandable sleeving JDD FR 3mm-76mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name JDDFLEX
Model Number polyester expandable sleeving JDD FR 3mm-76mm
Type Other, Expandable sleeving
Material Other, PET,Nylon

Specifications

Material : Polyester, Nylon
Cutting tool : hot knife

Expandable Sleeving consists of flexible, flame-retardant woven polyester that met
RoHS stantard. The braid is able to expand up to 1.5 times its normal size and isused for bunding and protectiong of electrical cables in power-supply machineand automobile sectors.



Material: polyester (PET) monofil free of hologen Temperature range : -50C ---- 150C Flammability : self-extinguishing according to UL94-v2 Colour : black,grey,white,red,green,blue,yellow,purple,pink,orange,nacarat Melting point 245C~255C Does not trap heat or humidity Rot-free Self-fitting over many shapes and sizes Self-extinguishing when used to encase typical non-flammable wires or cables Fray resistant



Technical data
Material Polyester
Operating Temperature -50℃-+150℃
Melt point 240±10℃
Flammability VW-1
Standard color  Black and grey
Approval UL,ROHS,PFOS,REACH,Halogen Free
Cutting tool Hot knife





Datasheet
Nominal sizeW Part No. Expanded range PackingL
Inch mm Min.I Max.O standard spool
1/8" 3 FR-003 1 6 1000 m
1/4" 6 FR-006 3 9 500 m
5/16" 8 FR-008 5 16 350 m
3/8" 10 FR-010 7 19 350 m
1/2" 12 FR-012 8 24 300 m
5/8" 15 FR-016 10 27 250 m
3/4" 20 FR-019 14 30 200 m
1" 25 FR-025 18 35 200 m
1 1/4" 30 FR-032 20 50 150 m
1 1/2" 40 FR-038 30 60 100 m
1 3/4" 45 FR-045 35 75 100 m
2" 50 FR-050 40 80 100 m
2 1/2" 64 FR-064 45 105 100 m
3" 76 FR-076 64 120 100 m
          Unit:mm
