Help CenterShenZhen High Quality Flexible Conduit
Related Products

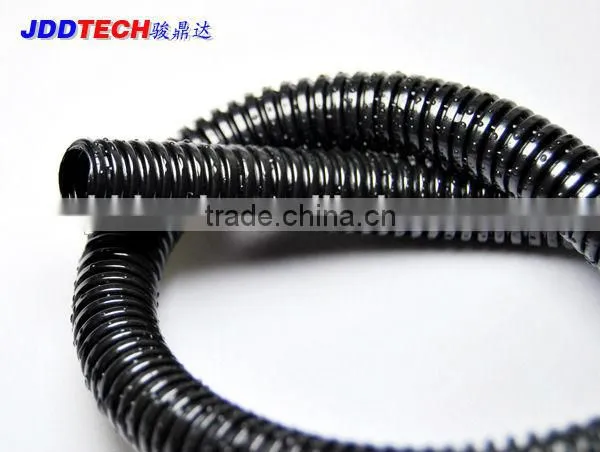

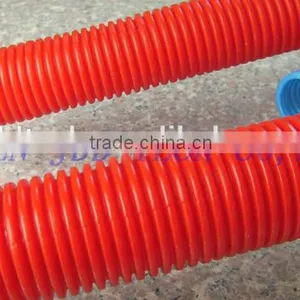

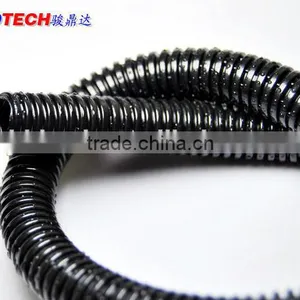

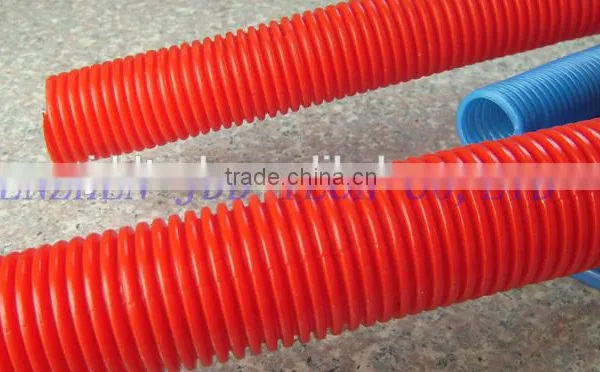

JDD corrugated flexible conduit offers you wide range technical properties for your cable and wire management applications against not only mechanical damage but also the influences of UV radiation,weathering and chemicals.The flexible body allows for the cables in the conrner and elbow.We also supply the split style for easy installation and removal.
Application:

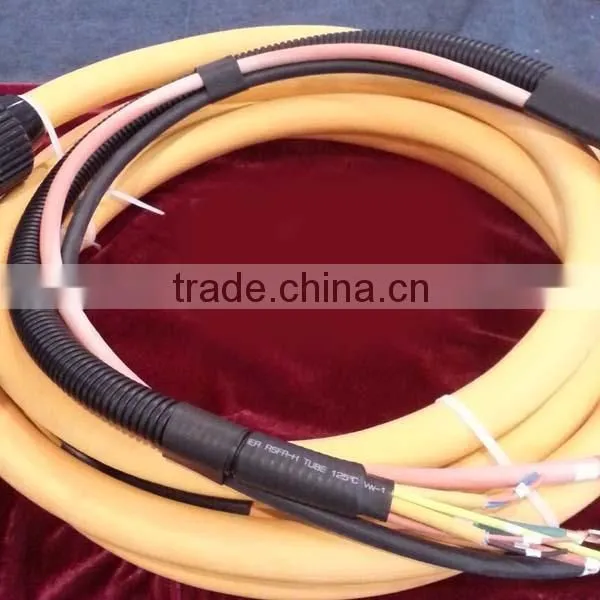

It is widely used for protecting wires and cables harnesses in automotive,equipment,railway etc, it also can be used for protecting the hydraulic hoses.
Technical data:
Material:1.MELG:PE
2.MNLG:PA
3.MDLG:PP
Operating range:1.MELG:-40℃-+90℃
2.MNLG:-40℃-+130℃
3.MDLG:-30℃-+110℃
Standard color:Black
Certificate:RoHS
Other features:Highly abrasion resistance,resist acids,solvents and fuels resistance
| PE material Part No. | PA material Part No. | PP material Pat No. | I.D*O.D(d*D) | Bending radius(R±10%) | Packing(m) |
| MELG-7.0 | MDLG-7.0 | 4.5*7.0 | 5.0 | 200 | |
| MELG-8.5 | MNLG-8.5 | MDLG-8.5 | 5.5*8.5 | 8.0 | 100 |
| MELG-10.0 | MNLG-10.0 | MDLG-10.0 | 7.0*10.0 | 10.0 | 100 |
| MELG-12.0 | MNLG-12.0 | MDLG-12.0 | 8.5*11.5 | 15.0 | 100 |
| MELG-13.0 | MNG-13.0 | MDLG-13.0 | 10.0*13.0 | 20.0 | 100 |
| MELG-15.8 | MNLG-15.8 | MDLG-15.8 | 12.0*15.8 | 30.0 | 100 |
| MELG-18.5 | MNLG-18.5 | MDLG-18.5 | 14.3*18.5 | 40.0 | 100 |
| MELG-21.2 | MNLG-21.2 | MDG-21.2 | 17.0*21.2 | 45.0 | 100 |
| MELG-25.0 | MNLG-25.0 | MDLG-25.0 | 21.0*25.0 | 50.0 | 100 |
| MELG-28.5 | MNLG-28.5 | MDLG-28.5 | 23.0*28.5 | 55.0 | 50 |
| MELG-34.5 | MNLG-34.5 | MDLG-34.5 | 29.0*34.5 | 60.0 | 50 |
| MELG-42.5 | MNLG-42.5 | MDLG-42.5 | 36.0*42.5 | 70.0 | 25 |
| MELG-54.5 | MNLG-54.5 | MDLG-54.5 | 48.0*54.5 | 80.0 | 25 |
