Help CenterSpiral Protective Sleeve
US$ 1 - 9.9
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JDDTECH
Model Number:
MLXG-035
Payment & Shipping
Payment Methods:
Port of Shipment:
YanTian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Polyester Textile Protection SleeveUS$ 0.245 - 2.141MOQ: 1000 Meters -
Cable Easy WrapUS$ 0.15 - 8.3MOQ: 1000 Meters
-
Shenzhen Fire SleeveUS$ 0.2 - 10.4MOQ: 1000 Meters
-
Polyester Protective Hydraulic Hose SleeveUS$ 0.5 - 3MOQ: 1000 Meters
-
Polyester Textile SleeveUS$ 1.09 - 1.09MOQ: 500 Meters
Place of Origin
Guangdong, China
Brand Name
JDDTECH
Model Number
MLXG-035
Type
Insulation Sheet
Material
PP
Application
Other
Tensile Strength
25Mpa
Product Description

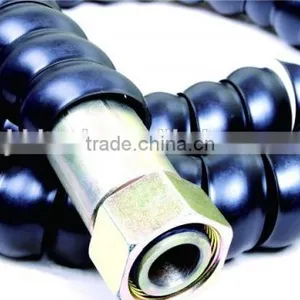

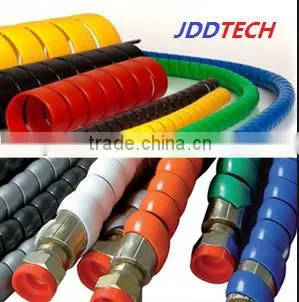

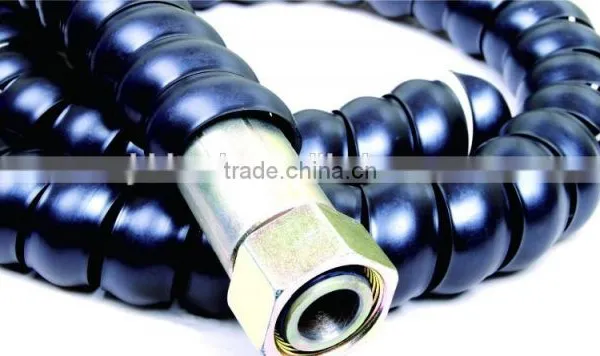

Spiral protective sleeve provides maximum protection against abrasion and has a high resitance against ultraviolet weathering in a wide temperature range. It can install easily without removing connectors or terminal . Dramatically increase serviceable life and reduce costly repairs and down.
Application
It widely used in the mines fields to protect the hydraulic hose and the wire away from the resistance damage.
Material:Modified Polypropylene
Operating range:-40℃-+150℃
Tensile strength:25Mpa at normal temperature
Standard color:Black
Certificate:Rohs
Other features:Impervious to oils,solvents
Packaging & Shipping
| Part No. | I.D | Wall thickness(T) | Wall thickness(t) | Width(W) | Bundle dia range | packing(L) |
| MLXG-008 | 8.0 | 1.2 | 0.4 | 8.0 | 8.0-11.0 | 2m/pc |
| MLXG-010 | 10.0 | 1.3 | 0.4 | 10.0 | 10.0-13.0 | 2m/pc |
| MLXG-012 | 12.0 | 1.5 | 0.5 | 12.0 | 12.0-15.0 | 2m/pc |
| MLXG-016 | 16.0 | 2 | 0.5 | 15.0 | 15.0-18.0 | |
| MLXG-018 | 18.0 | 2 | 0.5 | 16.0 | 18.0-21.0 | |
| MLXG-020 | 20.0 | 2.5 | 0.5 | 18.0 | 19.0-25.0 | |
| MLXG-025 | 25.0 | 2.5 | 0.7 | 21.0 | 23.0-29.0 | |
| MLXG-028 | 28.0 | 3.0 | 0.7 | 22.0 | 26.0-32.0 | |
| MLXG-030 | 30.0 | 3.0 | 1.0 | 22.0 | 28.0-35.0 | |
| MLXG-032 | 32.0 | 3.0 | 1.0 | 23.0 | 30.0-37.0 | |
| MLXG-035 | 35.0 | 3.5 | 1.0 | 24.0 | 32.0-40.0 | |
| MLXG-038 | 38.0 | 3.5 | 1.0 | 25.0 | 35.0-43.0 | |
| MLXG-042 | 42.0 | 3.5 | 1.0 | 25.5 | 39.0-47.0 | |
| MLXG-045 | 45.0 | 3.5 | 1.0 | 26.0 | 42.0-50.0 | |
| MLXG-050 | 50.0 | 3.5 | 1.2 | 27.0 | 46.0-55.0 | |
| MLXG-060 | 60.0 | 4.0 | 2.0 | 28.0 | 55.0-66.0 | |
| MLXG-074 | 74.0 | 4.4 | 2.2 | 29.0 | 68.0-70.0 | |
| MLXG-088 | 88.0 | 4.9 | 2.4 | 31.0 | 82.0-95.0 | |
| MLXG-100 | 100.0 | 5.2 | 2.5 | 33.0 | 94.0-110.0 |
Unit:mm
