Help CenterFlame Heat Shield for Hydraulic Pipe Protect -Fire Proof Fiberglass Sleeving
Related Products
-
Nylon Flat Filament Braided SleevingUS$ 0.5 - 7.5MOQ: 1000 Meters -
Reusable Hose and Cable Protector SleevesUS$ 7 - 15MOQ: 1000 Meters
-
Heavy-duty Abrasion SleevingUS$ 0.25 - 2.99MOQ: 1000 Meters
-
Nylon Flat Filament Expandable SleevingUS$ 0.3 - 2.25MOQ: 1000 Meters
-
Hose Protection Sleeve-polyester Textile SleeveUS$ 0.5 - 1.9MOQ: 1000 Meters

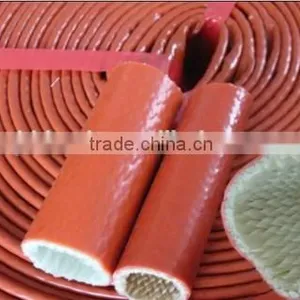

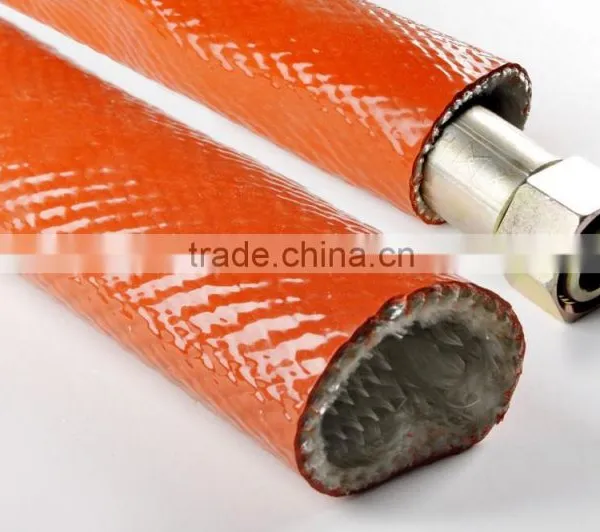

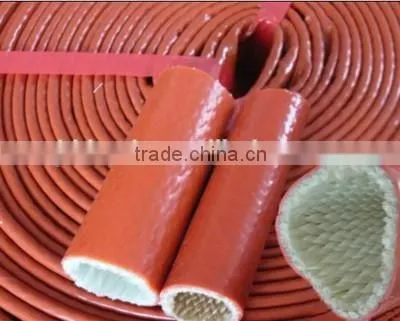

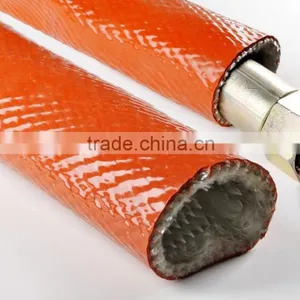

Fire-proof sleeving is fabricated from a dense E-glass fiberglass with a thick coating of self-extinguishing high temperature silicone rubber which is engineered to protect hoses,cables and wire harness from damage due to exposure to extreme heat,open flame and molten splash.
Fire-proof sleeving also provides a high degree of insulation value,protecting hot or cold or cryogenic lines,pipes and tubing from heat or cold loss,proving energy savings and abrasion resistance.
Application:
Fire-proof sleeving is used to protect fuel lines,hydraulic and oil lines from heat and to prolong the life of wiring and hoses in cases of a fire so that critical systems can function longer in the aviation and marine fields.
Technical Data:
Material:Fiberglass fiber
Coating material:Silicone
Operating temperature:-50℃-+400℃
Flammability:VW-1
Standard color:Brick Red
Voltage:7.0KV
Approval:Rohs
Cutting tool:Scissors
| Part No. | ID(d)mm | (D)mm | Wall thickness | Packing(L) |
| GWG-015 | 15±2 | 19±2 | 2.2 | 20 |
| GWG-020 | 20±2 | 25±2 | 2.5 | 20 |
| GWG-025 | 25±2 | 31±2 | 2.8 | 20 |
| GWG-030 | 30±2 | 36±2 | 3.0 | 20 |
| GWG-035 | 35±2 | 41±2 | 3.2 | 15 |
| GWG-040 | 40±2 | 47±2 | 3.5 | 15 |
| GWG-045 | 45±2 | 53±2 | 3.8 | 15 |
| GWG-050 | 50±3 | 59±3 | 4.0 | 15 |
| GWG-055 | 55±3 | 64±3 | 4.2 | 15 |
| GWG-060 | 60±3 | 70±3 | 4.5 | 15 |
| GWG-065 | 65±3 | 75±3 | 4.5 | 15 |
| GWG-070 | 70±3 | 80±3 | 4.8 | 15 |
| GWG-075 | 75±3 | 85±3 | 4.8 | 15 |
| GWG-080 | 80±3 | 90±3 | 5.0 | 15 |
| GWG-085 | 85±3 | 96±3 | 5.3 | 15 |
| GWG-090 | 90±3 | 101±3 | 5.6 | 15 |
| GWG-095 | 95±3 | 106±3 | 5.8 | 15 |
