Self-wrapping braided sleeving

Specifications

Easy instal,abrasion and flame resistance, Halogen free ,wire harness durable protection

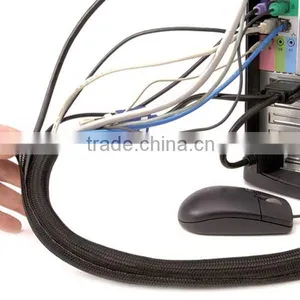

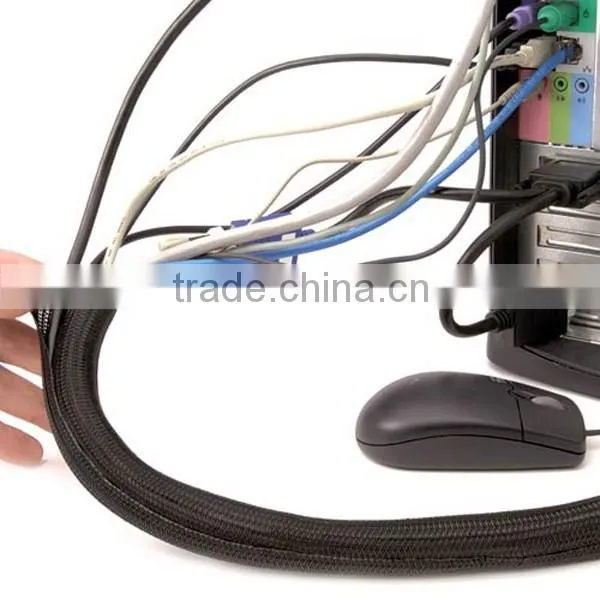

Self-closing wrap offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables.The special open structure allows to be installed after other components,for example copper terminals and connectors.A strong resilience protects wires and cables and meanwhile provides exceptional abrasion and flame resistance.

Application:

Its ideal for application in wire harness,automatic equipment,railways,general manufacturing industry where wires and tubes need a tough and durable protection.



Technical data:

Material:Polyester

Operating temperature: -50℃~ +150℃

Melt point:  240±10℃

Flammability:UL94V-0

Standard color:Black

Certificate:RoHS,Halogen Free

Cutting tool:Hot knife, Scissors

Part No.	I.D	Overlap	Max.bundle Dia	Packing
SCW-006	6	25%	7	100m/spool
SCW-009	9	25%	10	100m/spool
SCW-013	13	25%	14	50m/spool
SCW-016	16	25%	17	25m/spool
SCW-019	19	25%	20	25m/spool
SCW-025	25	25%	26	25m/spool
SCW-032	32	25%	33	25m/spool
SCW-038	38	25%	40	25m/spool
SCW-050	50	25%	52	25m/spool
