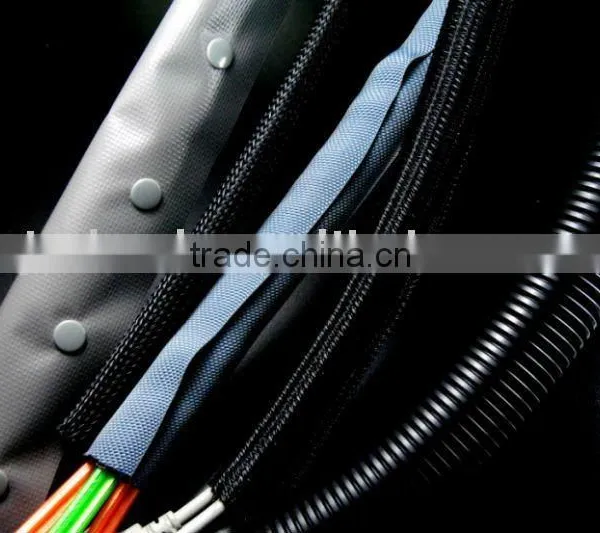

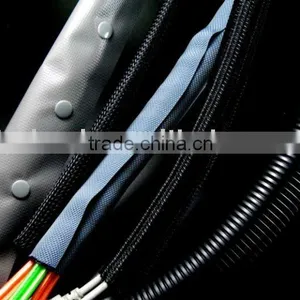

PVC Button Wrap

Specifications

Widely used for bundling and protecting the wires harness and
cables on panel board, computer cable, TV, equipment and so on.

PVC button wrap can tidy up and beautify the wiring fast and easily, it is reusable and has excellent
performance of insulation and abrasion resistance. It's great for harness work and allows breakouts of single or multiple wires for re-routing or replacement.

Technical data Material PVC Operating range -15℃-85℃ Flammability UL94V0 Standard color Black and grey Certificate ROHS Cutting tool Scissors



Datasheet Part No. Nominal sizeW Width(w) PackingL BWS-012 12 60 75 m/spool BWS-019 19 80 75 m/spool BWS-025 25 100 75 m/spool BWS-031 31 120 75 m/spool BWS-037 37 140 75 m/spool BWS-044 44 160 75 m/spool BWS-050 50 180 75 m/spool BWS-057 57 202 75 m/spool BWS-070 70 242 75 m/spool BWS-100 100 335 75 m/spool BWS-150 150 495 75 m/spool       Unit:mm
